Issue 4, December 2000 Model 58/59 User Guide
Page 34 Studio Technologies, Inc.
for Surround

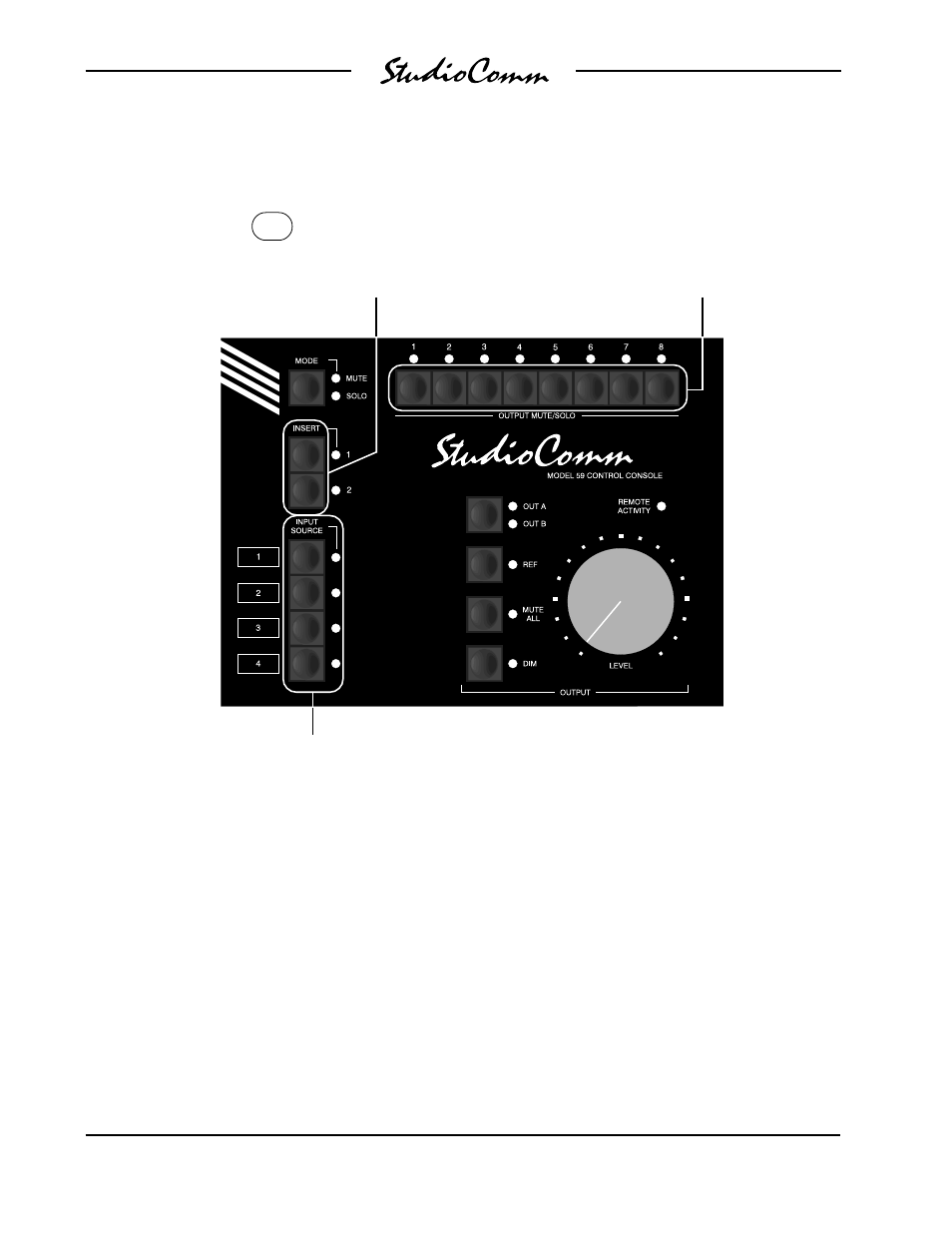

Model 59 Configuration—Insert 1 and 2
When an insert button is pressed, pressing
the output channel buttons (one at a time)
allows the display and selection of the insert
mode for that specific channel.
Default: All channels associated with both inserts are in mode 3: Replace the normal signal with the return signal.
Note 1: This is the hardest configuration to understand and perform! Two buttons must be simultaneously pressed
to display the mode; three buttons must be simultaneously pressed to change the mode. A little practice
and it will become easy.
Note 2: If all channels associated with an insert section are set for mode 2, that insert section will be set for
disabled. This feature is provided so that the operator won’t attempt to enable an unused insert, hopefully
minimizing confusion.
When an insert button and an output channel button
are pressed at the same time, the insert mode is displayed.
LED 1 lit means mode 1: Mute normal signal flow;
LED 2 lit means mode 2: Maintain the normal signal flow;
LED 3 lit means mode 3: Replace the normal signal with the return signal;
LED 4 lit means mode 4: Sum (combine) the return signal with the normal signal.
Use the buttons to select the mode.
Press and hold one of the
insert buttons to allow the
display and selection of
the insert mode.
&
