Delta Electronics Downstream Intelligent GE-PON ONU Transceiver OPEP-33-A4Q1RI - Manual

OPEP-33-A4Q1RI
DELTA ELECTRONICS, INC.
1 Revision: S3
12/20/2007
www.deltaww.com
1.25Gbps Upstream/1.25Gbps Downstream
Intelligent GE-PON ONU Transceiver
FEATURES
z RoHS compliant
z Digital Diagnostic SFF-8472 MSA compliant
z Support extended operating Case
temperature from -20ºC to +85ºC
z IEEE802.3ah Gigabit Ethernet compliant
z SFF package with SC Receptacle
z 1310nm Burst Mode 1.25Gbps transmitter,
and 1490nm Continuous Mode 1.25Gbps
receiver
z Integrated with WDM filter to cut 1550nm and
1650nm optical signal off
z Single +3.3V power supply with LVPECL
electrical signal interface, LVTTL Bias
Control input and Rx Signal Detect output
z Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Description

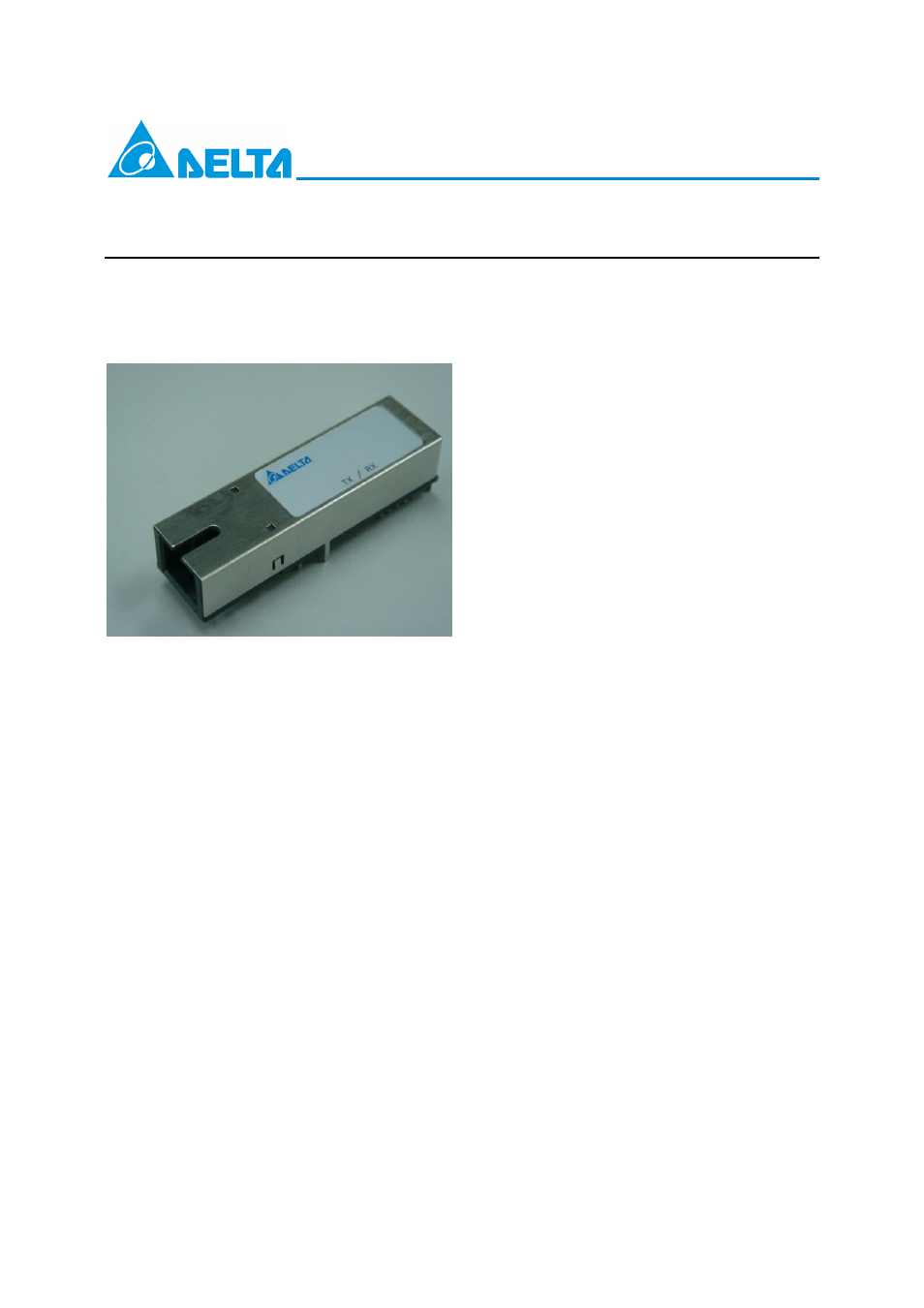

DELTA’s GE-PON ONU transceiver
OPEP-33-A4Q1RI is designed for Gigabit Ethernet
Passive Optical Network transmission.
The module is contained in a SFF package
with standard SC receptacle connector.
The module consists 1310nm FP laser,
InGaAs PIN, Preamplifier and WDM filter in a
high-integrated optical sub-assembly, and it
receives up to 1.25Gbps of continuous data at
1490nm, and transmits 1.25Gbps of burst-mode
data at 1310nm.
Application
z IEEE 802.3ah 1000BASE-PX10-U
z GE-PON ONU
z Burst Mode Application
z FTTx WDM Broadband Access
z
OPEP-33-A4Q1RI data link up to 10km in
9/125um single mode fiber.
