TD92 CONNECTING LINK:
The connecting link is used to lock and stabilize the Pro-Max 36 and the TD92
mowers together. It is important that the link be mounted correctly and set at the
proper length. This will ensure that the two mowers are travelling parallel and
cutting properly. Follow these steps for installation.
1. After connecting the mower to the back of the Pro-Max 36, drive the unit
forward a short distance, while making a slight turn to the right. This will
shorten the length between the two mowers on the right hand side for mounting
the link.
2. Remove the pivot lock pin from the link allowing it to pivot out and shorten.
3. Mount the link to the bracket on the TD92 mower.
4. Mount the other end onto the back of the Pro-Max 36 mower.
5. Now push the link in straight, or slowly drive the mower forward with a slight
turn to the left so the connecting link straightens. Replace the locking pin.
6. Using the connecting link adjustment bolt, adjust the length of the link until the
TD92 mower is in position straight behind the Pro-Max 36.
7. Remove the transport castor lockout bars from the unit.

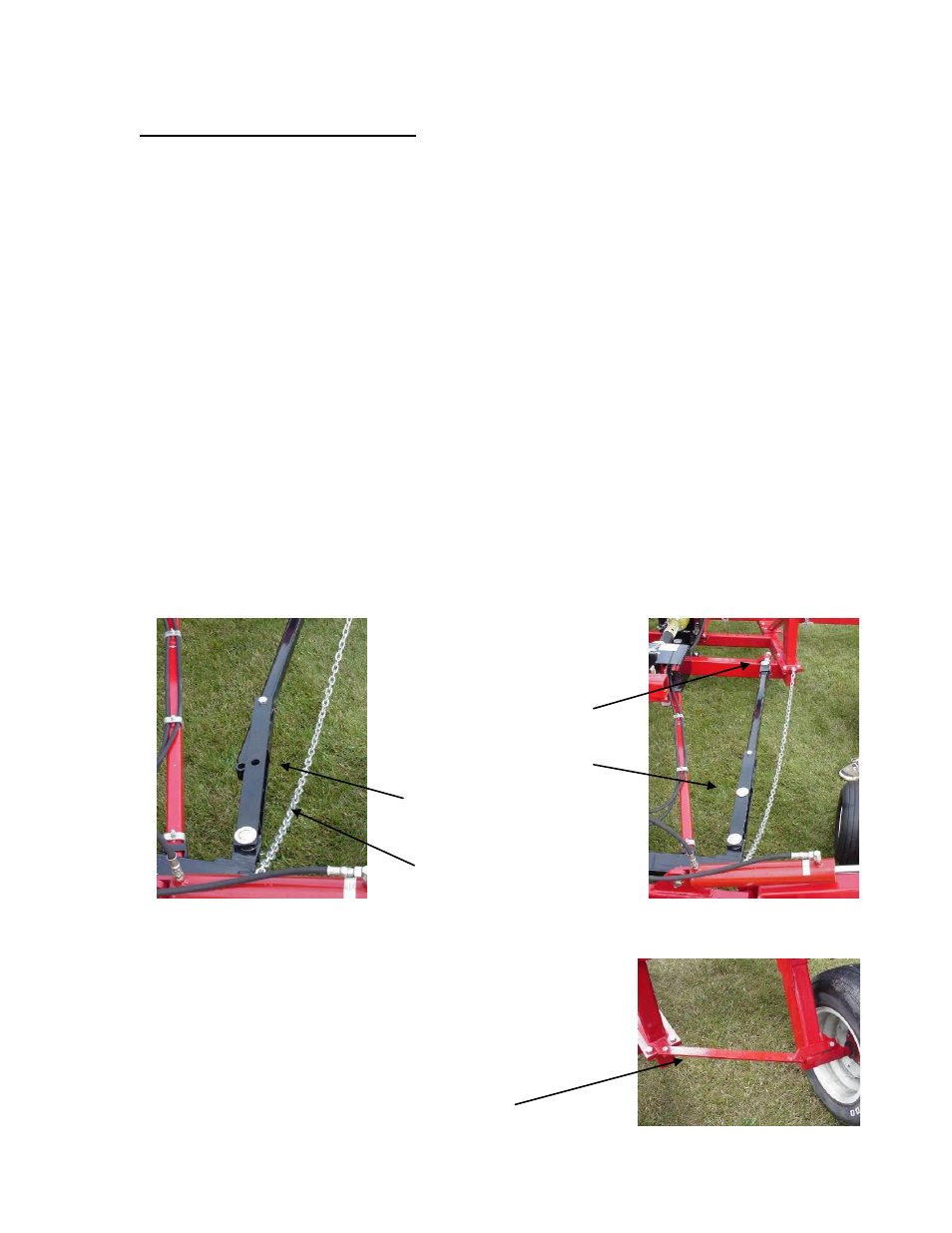

Pivot Lock Pin
Connecting Link
Adjustment Bolt
TD92 Safety Chain
Link Bent Out
To Connect
Pro-Max 36 Castor Lockout Bar
