MOWER SETUP FOR OPERATION:
HITCHING TO TRACTOR:
Before hitching the mower to the tractor, a number of conditions must be checked.
Having the proper hitching dimensions for the tractor drawbar and the PTO will
ensure long and trouble free hours of operation with this PTO driven mower.
Incorrect setup will damage the driveline components prematurely.

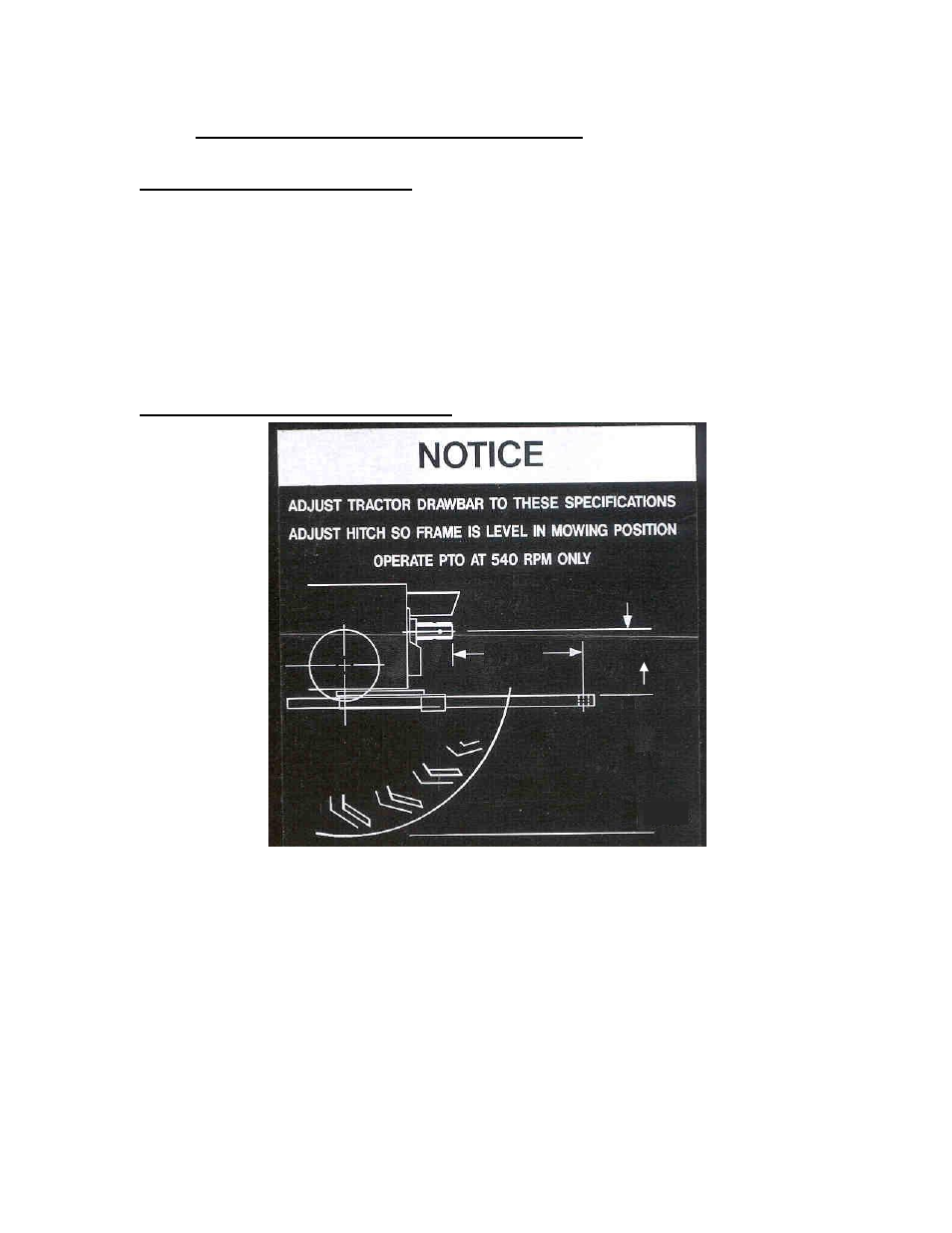

The following decal is mounted to the machine:
Adjustable Hitch and PTO Shaft:
The Pro-Max 36 is equipped with an adjustable hitch plate for mounting on the
tractor drawbar to ensure the correct distance between the end of the tractor PTO
stub and the end of the Pro-Max 36 PTO stub. This distance should be 39”. The
drawpin of the mower should be exactly in the center of the two PTO shaft ends
for smooth operation and long life for all driveline components. This set-up allows
equal turning angles for the front and rear U-joints to avoid vibration while
negotiating turns during the mowing process.
Use the following steps to ensure proper hook up.
19 ½”
6”-12”
