OTOHP-RRX-04 Quad Reverse Return Path Receiver Module

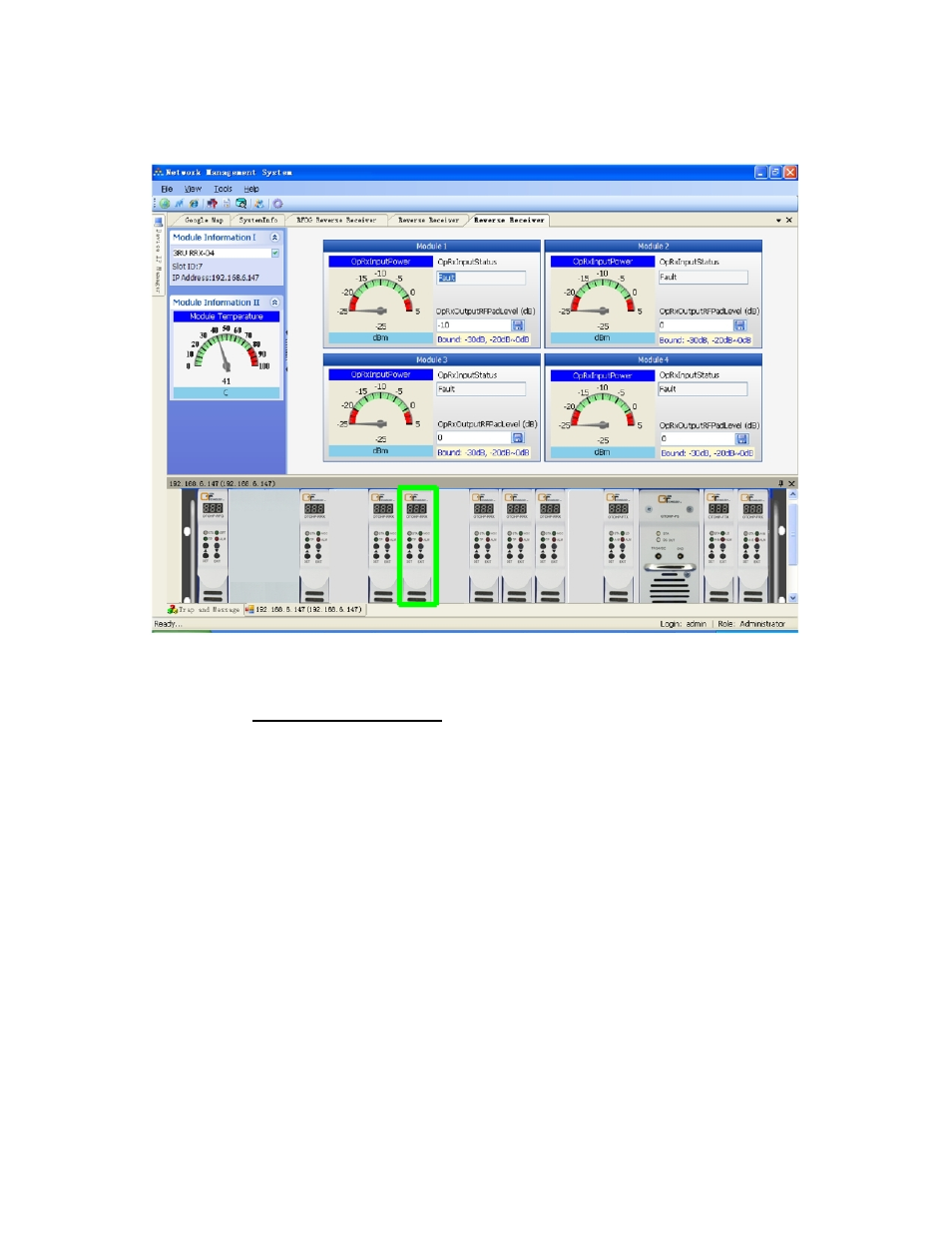

This screen displays the status of the OTOHP-RRX-04 module(s).
Alarm codes are displayed in trap and message form as shown below. Administrator access is required in order to change
the RF pad level.
Code Description
001
Module 1 Input Optical Power Low (less than -20dBm)
002
Module 1 Input Optical Power High (greater than 1dBm)
003
Module 2 Input Optical Power Low (less than -20dBm)
004
Module 2 Input Optical Power High (greater than 1dBm)
005
Module 3 Input Optical Power Low (less than -20dBm)
006
Module 3 Input Optical Power High (greater than 1dBm)
007
Module 4 Input Optical Power Low (less than -20dBm)
008
Module 4 Input Optical Power High (greater than 1dBm)
009
Module Temperature High (greater than 80°C)
When the value is out the range of meter, double click the meter to change scale. When the window is closed, the system
will save the new scale settings as the default.
