C-Series DV Gas Fireplace
Part No. XG0170 - 080610
Installation
Installing the Log Set
Installing the Logs:
The C-Series DV is supplied with five ceramic fibre logs. Unpack the
logs and handle them very carefully.
1. Remove the door cover and the glass door.
2. Place the Back log onto the back log rest as shown below in figure
24a. The log has lip on the bottom which fits into the slot on the
log rest.
3. Place the Front log onto the front log rest as shown in figure 30.
Center the log from side to side, and push it against the back of the
log rest. Carefully push the log onto the metal spikes on the log rest.
4. Place the top logs in position as shown in figure 30a, place the
centre log down first, then the right and left logs.
5. Start the fireplace. If the flame appears satisfactory, replace the
glass door and door cover.
CAUTIONS!
Q
If logs are not placed properly, excessive sooting will result.
Q
The surface of the logs will crack due to the heat of the
flames. This is a normal occurrence.

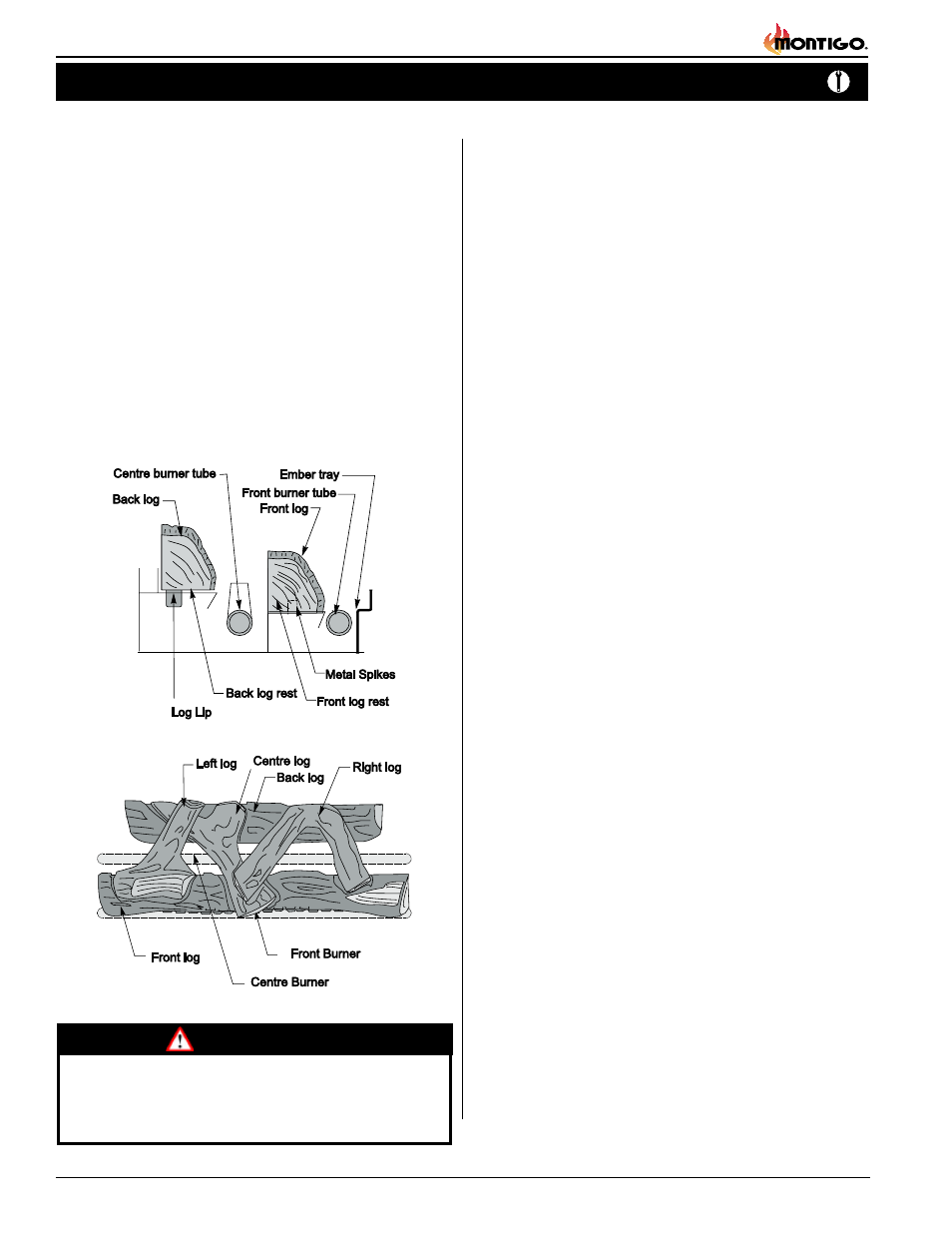

Figure 30. Positioning for the front and back logs.
Figure 30a. Proper log placement.
