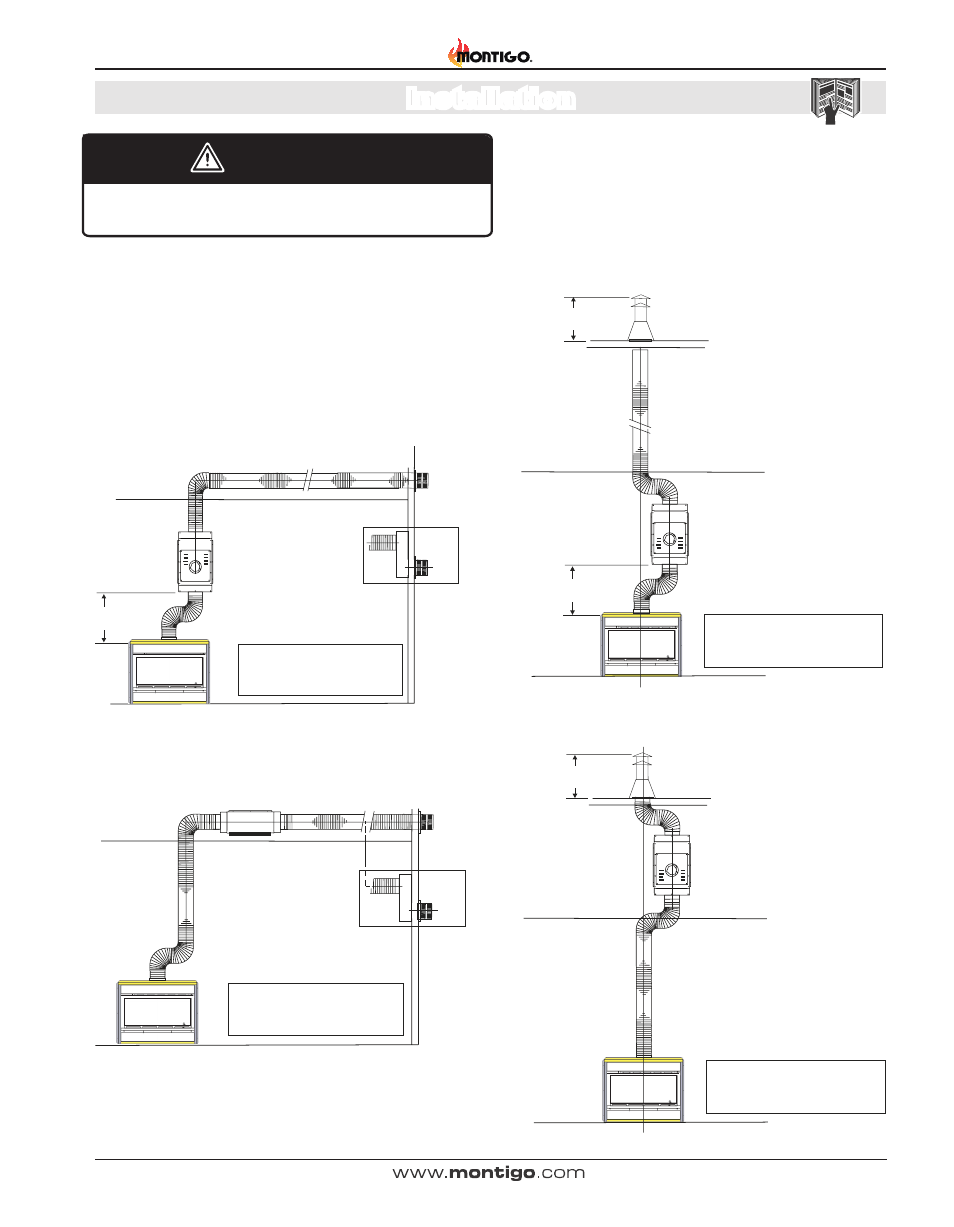

LDVPV47 Linear Power Vent System
XG0750 -112911
Installation
Section:
Montigo is not responsible for any water damage that may occur from installing
equipment other than what is specified in this document.
WARNING
Linear Power Vent - Horizontal Vent
Multi-elbow installations are possible up to a maximum one-hundred feet
(100'-0"), with three (3) 90° elbows. Minimum vent run from Fireplace
to Power Vent must be two feet, (2'-0"). Maximum allowable vent run
must be reduced by Ten feet (10'-0") for every 90° elbow added. With
a snorkel Termination, reduce the total vent run by an additional twenty
feet (20'-0"). Figure's 3a and 3b.
Example A. Vertical Mounting with horizontal Vent Run
Figure 3a. Vertical Mounting for the Linear Power Venter
2’-0 ”
MIN
Vertical Installed
Linear Power Vent
Horizontal Run Flex Pipe
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
Snorkel
Termination
Important:
Maximum Vent Run not to exceed
One-Hundred feet (100’-0”) feet.
Figure 3b. Horizontal Vent for the Linear Power Vent
Termination Snorkel
Example B. Horizontal Mounting with horizontal Vent Run
Horizontal Installed
Linear Power Vent
Horizontal Run Flex Pipe
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
Snorkel
Termination
Important:
Maximum Vent Run not to exceed
One-Hundred feet (100’-0”) feet.
Available
Option
Linear Power Vent - Vertical Vent
Multi-elbow installations are possible up to a maximum one-hundred
thirty feet (130'-0"), with three (3) 90° elbows. Minimum vent run from
Fireplace to Power Vent must be two feet, (2'-0"). Maximum allowable
vent run must be reduced by Ten feet (10'-0") for every 90° elbow added.
Figure's 4a and 4b.
Figure 4a. Vertical Vent for the Linear Power Venter
Example A. Vertical Mounting with Vertical Vent Run
2’-0 ”
MIN
Vertical Installed
Linear Power Vent
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
Important:
Maximum Vent Run not to exceed
One-Hundred Thirty (130’-0”) feet.
2’-0 ”
MIN
Example B. Vertical Mounting with Vertical Vent Run
Figure 4b. VerticaI Linear Power Vent with Vertical Vent Run.
Vertical Installed
Linear Power Vent
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
90deg
Elbow
Important:
Maximum Vent Run not to exceed
One-Hundred Thirty (130’-0”) feet.
Termination
2’-0 ”
MIN
