LDVPV47 Linear Power Vent System
XG0750 - 112911
Installation

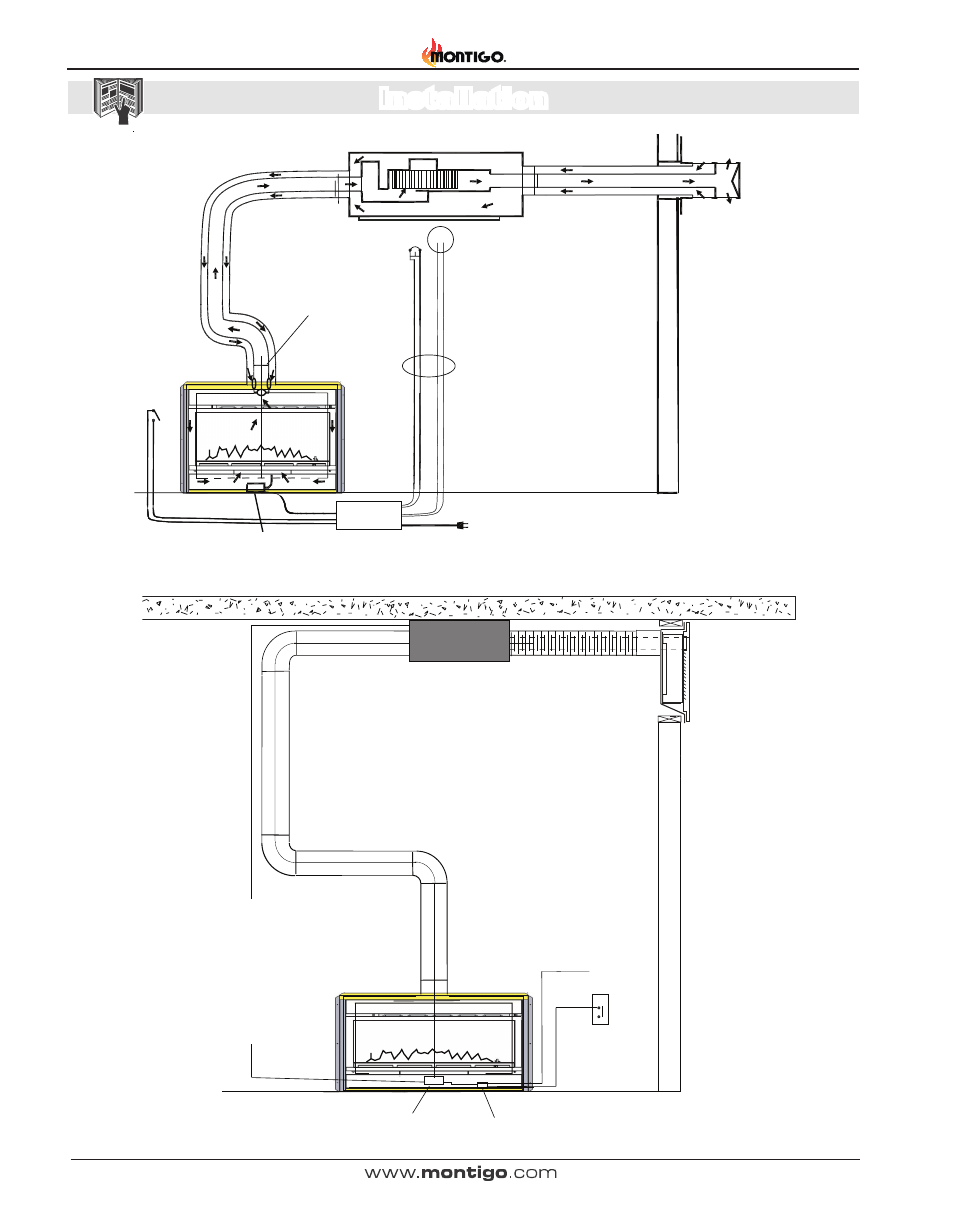

Figure 2. Schematic for the Linear Power Venter
M
LDVP47 Power Vent
Termination
Exhaust
Intake
Fireplace
110VAC
Not Switched
Post Purge
Wall
Switch
Hot Service Igniter
Electronic Ignition Gas Control
Ex
terior
W
all
Adapter, See
Appendix II
Remote wiring to
Power Vent from
Post Purge Control
Hot Service Igniter
Electronic Ignition Gas Control
Ex
terior
W
all
LDVPV47, 110V power
supply, 2Amp MAX.
Wall Switch
110V power supply,
4Amp MAX.
Optional Stainless Steel
louvered Termination kit.
Power Cord
10’ Long, Part No.__EPVH-1
20’ Long, Part No.__EPVH-2
30’ Long, Part No.__EPVH-3
40’ Long, Part No.__EPVH-4
50’ Long, Part No.__EPVH-5
60’ Long, Part No.__EPVH-6
70’ Long, Part No.__EPVH-7
80’ Long, Part No.__EPVH-8
90’ Long, Part No.__EPVH-9
100’ Long, Part No._EPVH-100
Transformer for HSI, 2Amp MAX.
Part No. __ECB006__
Figure 3. Flush vent Option for the Linear Power Venter
Non-combustble Overhang
