16
SETUP AND CONNECTIONS

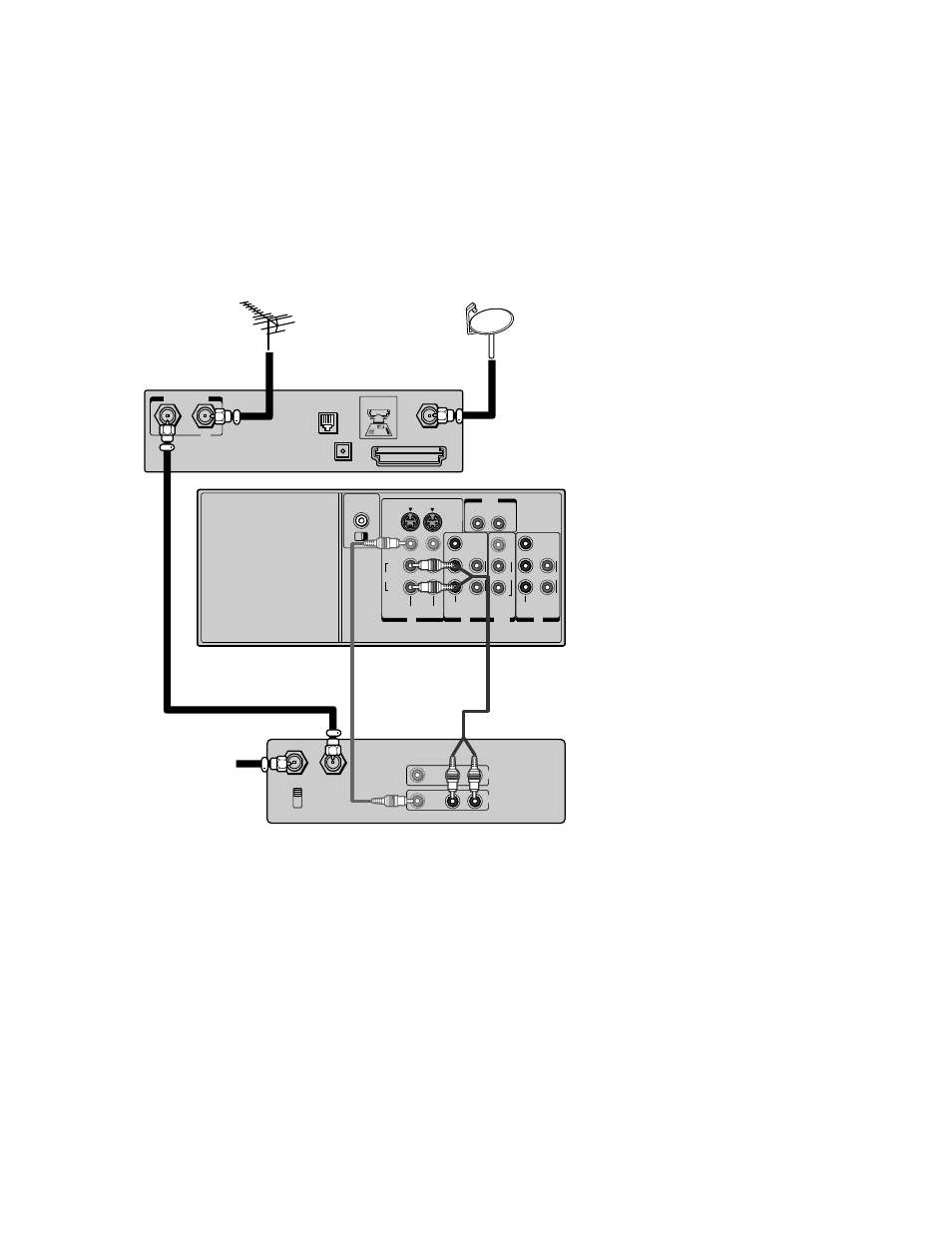

THE BASIC CONNECTION
TV and VCR
OUT IN IN
HD 1 HD 2
IN
CHANNEL IN
ON OFF
OUT
R L
VAR
AUDIO
VIDEO
L/
MONO
AUDIO CENTER
L
R
P B
P R
Y
L/
MONO
AUDIO AUDIO AUDIO
S-VIDEO
VIDEO
R
VIDEO-1 VIDEO-2
COLOR
STREAM
R
L
R
P B
P R
Y
AUDIO
COLOR
STREAM
ANT( 75 )
ANT-1 OUT ANT- 2
ANTENNA-IN
A B
SATELLITE-IN
PHONE
JACK
ACCESS CARD
TOP OF CARD
FACE DOWN
IN from ANT OUT to TV
CH 3
CH 4
VIDEO AUDIO
L R
IN
OUT
DIGITAL
OPTICAL
AUDIO-OUT
Some cable systems may require a “conversion box.” If so, consult your cable company’s box tuning
instructions for details.
Cable or any alternate RF
signal, such as a digital or
analog off-air antenna Satellite dish antenna
TV
Stereo VCR
Cable or off-air antenna
How to view
programming:
• To watch cable TV or off-air
TV programs from an
antenna in this connection,
press ANTENNA on the
remote control until
ANTENNA A is displayed
in the channel banner.
• To watch cable or any other
alternate RF signal, such as
digital or analog off-air,
press ANTENNA on the
remote control until
ANTENNA B is displayed
in the channel banner.
• To watch DIRECTV ®
programming, press TV/
SAT on the remote control
and channel up or down to
the desired program.
How to view your
VCR:
• Press TV/VIDEO on the
remote control and select
the video input (in this
example, V-1) in the
channel banner. Because the
digital decoder is in the TV,
not the VCR, digital
channels cannot be recorded
with this hook-up. If an off-
air antenna is used, the
VCR output should be
viewed using one of the
video inputs.
The ANT A and ANT B jacks can
receive digital or analog RF signals.
The illustrations here are
recommended connections in a
cable environment.
