SETUP AND CONNECTIONS
RESET
Restarts the TV when the system is locked.
Making Connections to the Front Panel
You can connect one of many types of devices to the TV’s front panel, such as a video
game or camcorder for playback.
To connect a device to the front panel:
1. Open the small front panel door protecting the VIDEO 3 jacks.
2. Connect the device’s audio/video outputs to the VIDEO 3 audio and video jacks on
the TV.
3. If the device has S-Video capability, connect an S-Video cable (instead of the video
cable) from the device to the S-VIDEO jack on the TV. If not, skip this step.
4. Press the TV/VIDEO button on the remote control until V-3 appears in the channel
banner.

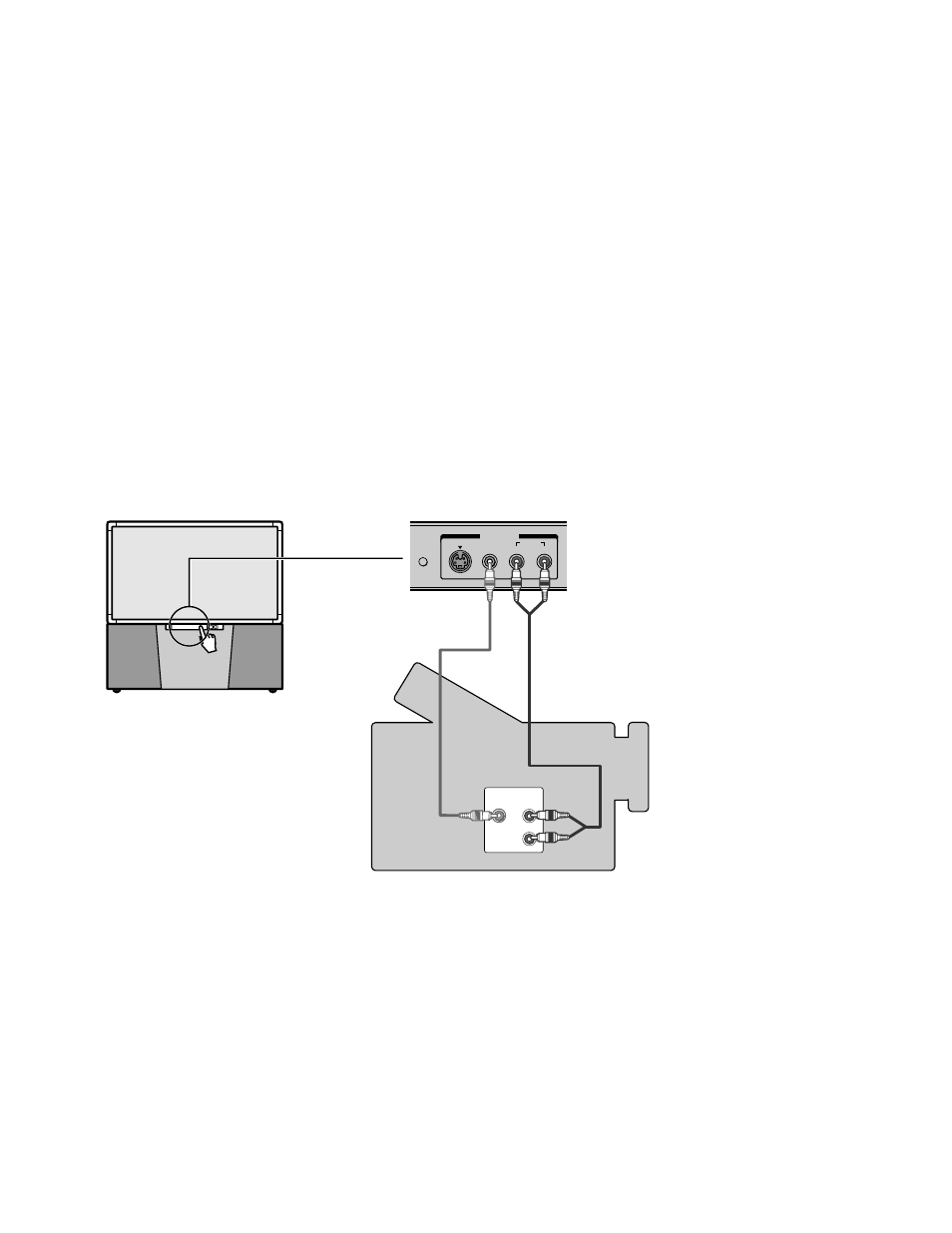

Below is an example of how you might connect a camcorder for playback.
IN–VIDEO 3
S-VIDEO
VIDEO
RESET
AUDIO
L/MONO
R
VIDEO
AUDIO
OUT
L
R
Camcorder
TV front
