14
SETUP AND CONNECTIONS
BACK OF THE TV

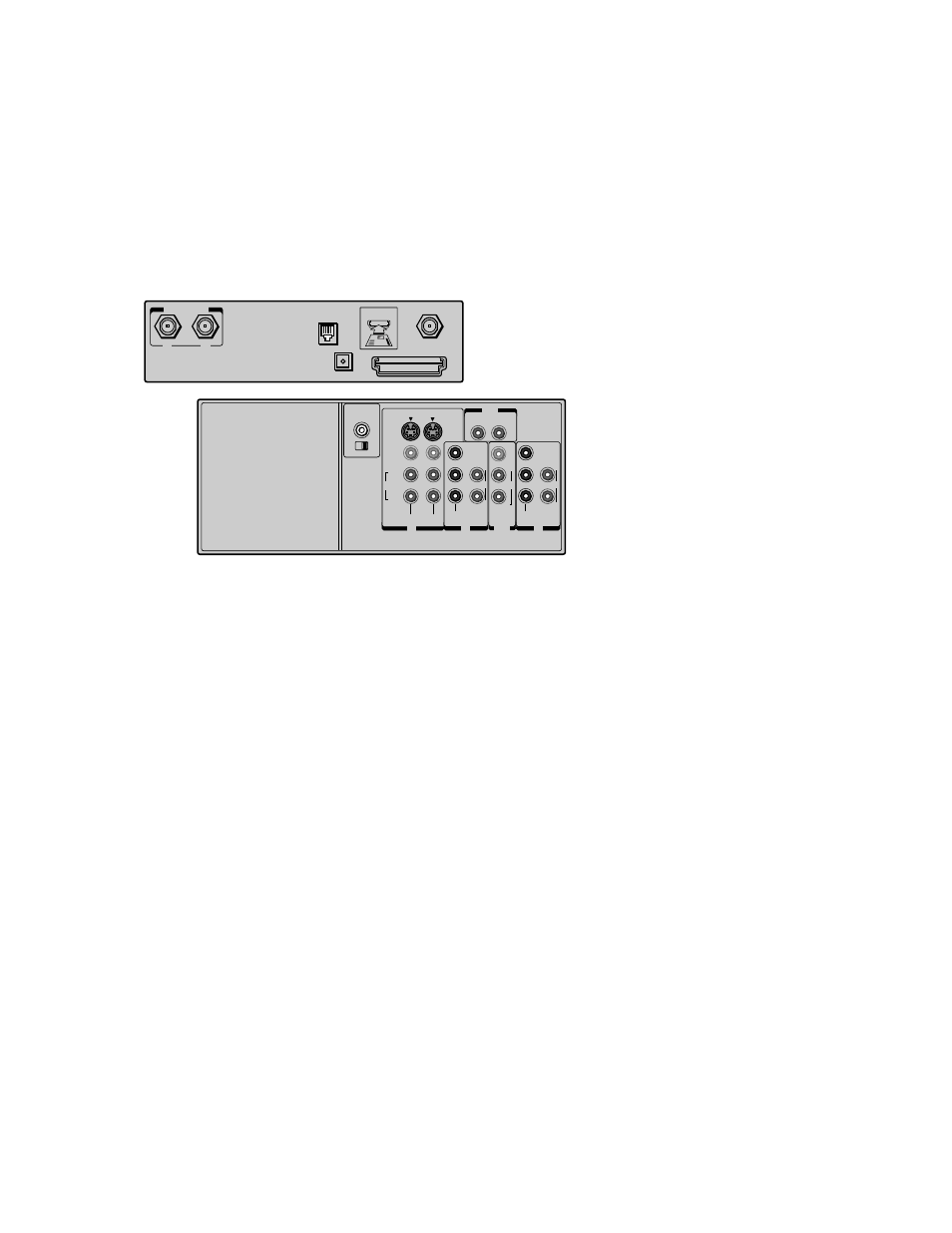

The diagram below describes each of the back panel jacks found on the TV. When
connecting A/V cables, be sure to connect corresponding outputs and inputs (video to
video, right audio to right audio, etc.).
OUT IN IN
HD 1 HD 2
IN
CHANNEL IN
ON OFF
OUT
R L
VAR
AUDIO
VIDEO
L/
MONO
AUDIO CENTER
L
R
P B
P R
Y
L/
MONO
AUDIO AUDIO AUDIO
S-VIDEO
VIDEO
R
VIDEO-1 VIDEO-2
COLOR
STREAM
R
L
R
P B
P R
Y
AUDIO
COLOR
STREAM
ANT( 75 )
ANT-1 OUT ANT- 2
ANTENNA-IN
A B
SATELLITE-IN
PHONE
JACK
DIGITAL
OPTICAL
AUDIO-OUT
ACCESS CARD
TOP OF CARD
FACE DOWN
SATELLITE IN Use to connect the satellite dish antenna to the TV.
ACCESS CARD INTERFACE Insert the access card into the slot so your program
provider can identify you. Make sure the contacts on the access card are on the top of the
card while inserting. (Refer to “New Access Card” in this manual’s “Assistance” section on
page 84 for details.) The DIRECTV PLUS™ System requires a valid card.
PHONE JACK Use to connect a phone line to the TV. The DIRECTV PLUS™ system
requires a phone line connection to periodically call out to program providers.
DIGITAL AUDIO OUT Use a digital optical cable (or SPDIF cable) to connect your TV
to a compatible Dolby Digital receiver or decoder. Dolby Digital offers theatre-quality
sound (six audio channels).
ANTENNA A IN Use to connect an off-air antenna or cable TV signal to the TV.
ANTENNA B IN Use to connect a second off-air antenna or cable TV signal to the TV.
You can also use the ANT A IN (or ANT B IN) for video games and switch between the two inputs
using the ANTENNA button on the remote control. When using TV games, computers, and similar
products with your TV, keep the contrast at a low setting. If a fixed (non-moving) pattern is left on the
screen for long periods of time at a high contrast setting, the image can be permanently imprinted
onto the picture tubes. These types of imprints are not covered by your warranty because they are
the result of misuse.
