What is included
Control module with integrated shock sensor
1 transceiver/antenna
1 four-button 2-way LCD transmitter
1 three-button transmitter
Wire harnesses
Dual diode harness
A six-tone programmable siren
In-vehicle status LED indicator light
A push-button Valet switch
Failsafe
® Starter Kill ready circuitry (may require additional labour)

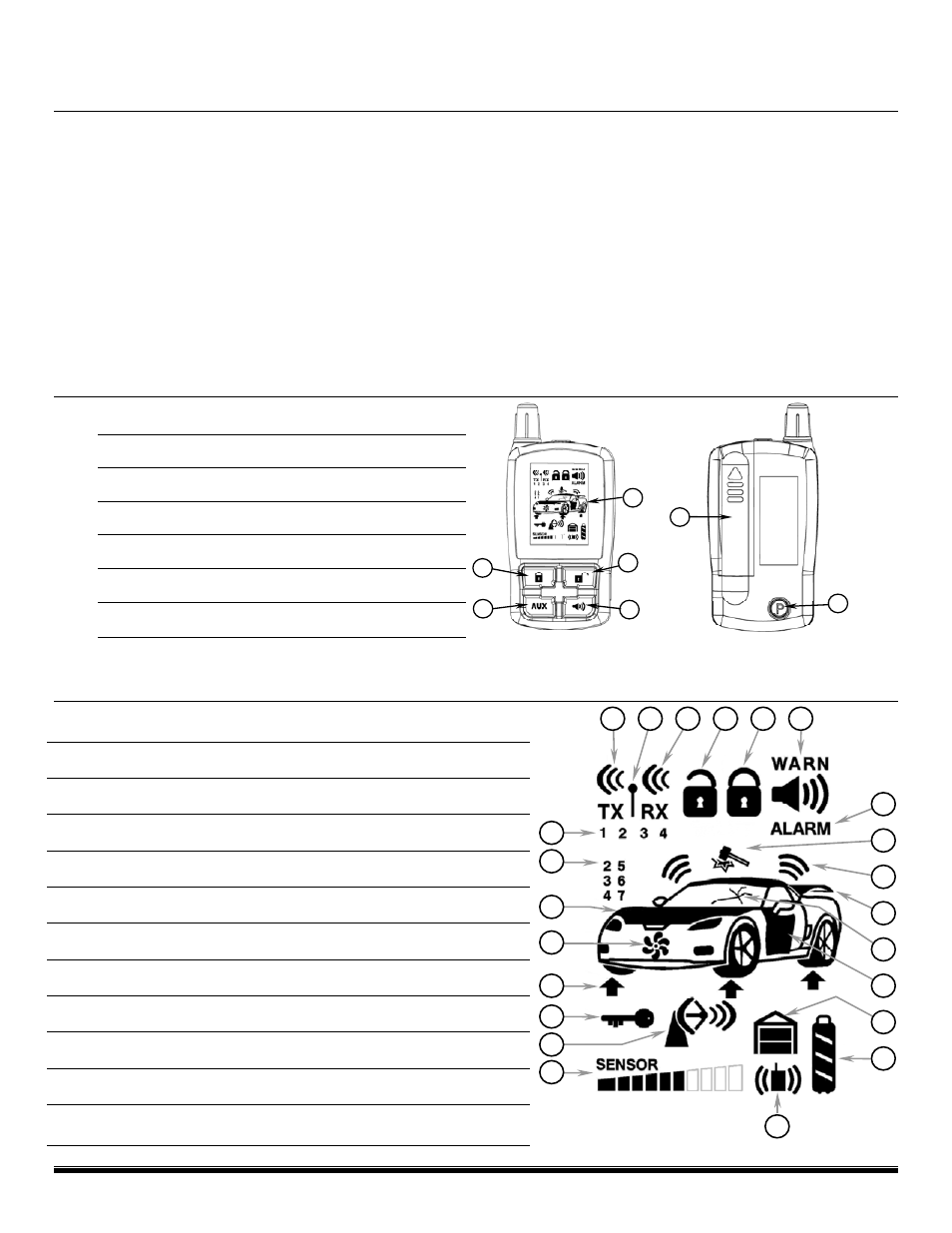

2-way LCD remote control
1 Auxiliary Channel Button
2 Arm Button
3 LCD Screen (see LCD Screen)
4 Disarm Button
5 Panic Button
6 Battery Compartment
7 Program Button
1
2
3
4
5
6
7
LCD screen
1. Transmit 13.
Garage door opening
(Future use)
2. Out of range 14. Battery
3. Receive 15. Vibration
4. Disarm 16. Shock sensor setting
5. Arm 17. Ultrasonic sensor
6. Warn Away ® 18. Ignition
7. Alarm 19. Tilt sensor
8. Shock sensor 20. Remote start (option)
9. Field disturbance sensor 21. Hood
10. Trunk 22.
Auxiliaries and
alarm triggered zones
11. Glass breakage sensor 23. Vehicle identification
12. Door
1
3
4
5
6
1 2 3 4 5 6
7
23
8
22
9
21
10
20
11
19 12
18
13
17
14
16
15
