NAP7000D User Manual (Version 1.0) ---- 25

2.8 Setting the CB-7021

Step1:

Check a ConvN(here N means 0 to 31) to start the setting CB-7000 module

configuration. In this examples, the Conv16 is checked.

Step 2:

Select the module type as Fig 2-10 shown. In this case, please select 7021.

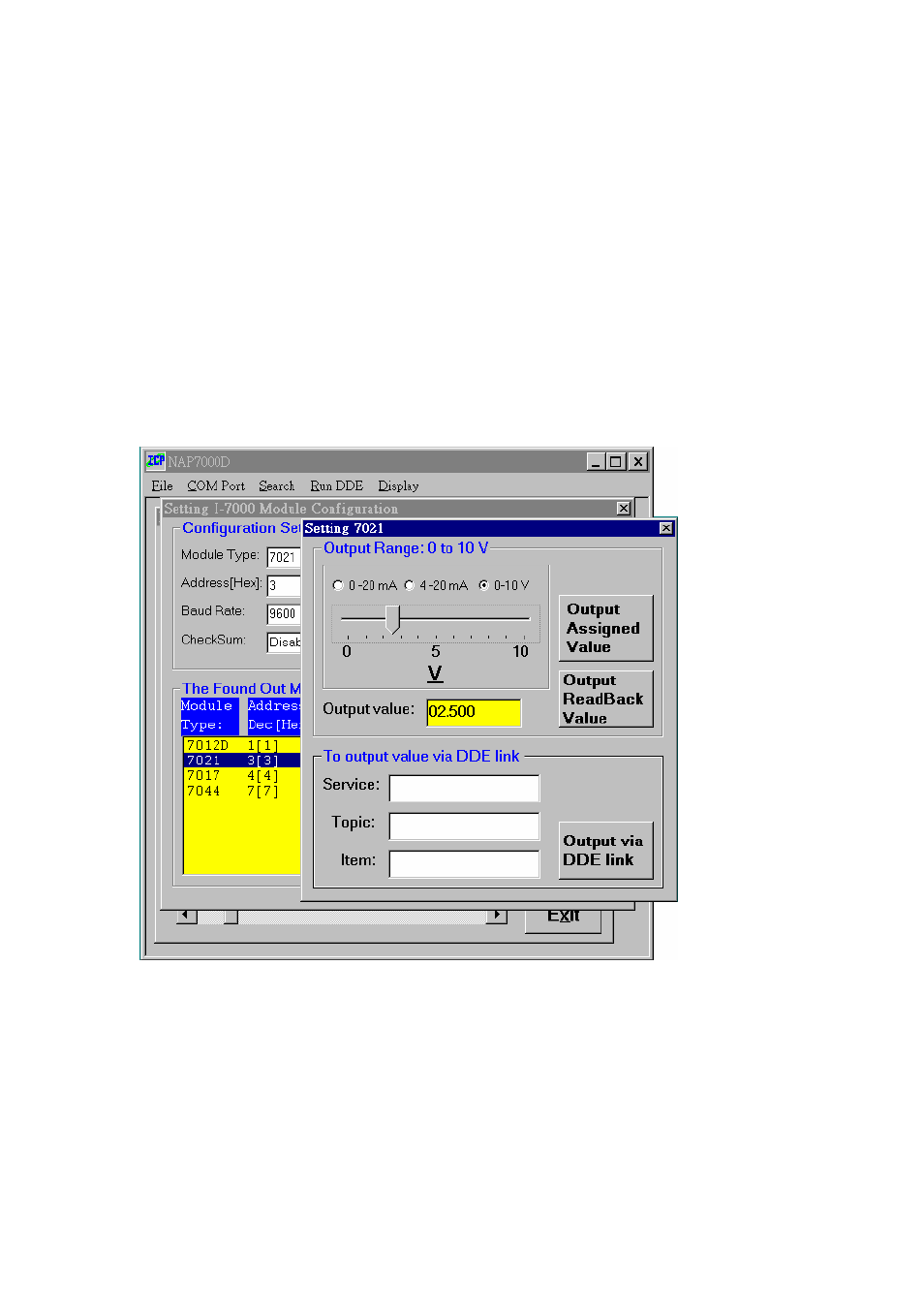

After selecting 7021, then a window titled setting 7021 will pop up as fig 2-17 shown.

Fig 2-17 The setting 7021 window.
