Step 2:

Select the desired module type as method 1 or method 2. In this case, please

select 7012 as fig 2-10 shown.

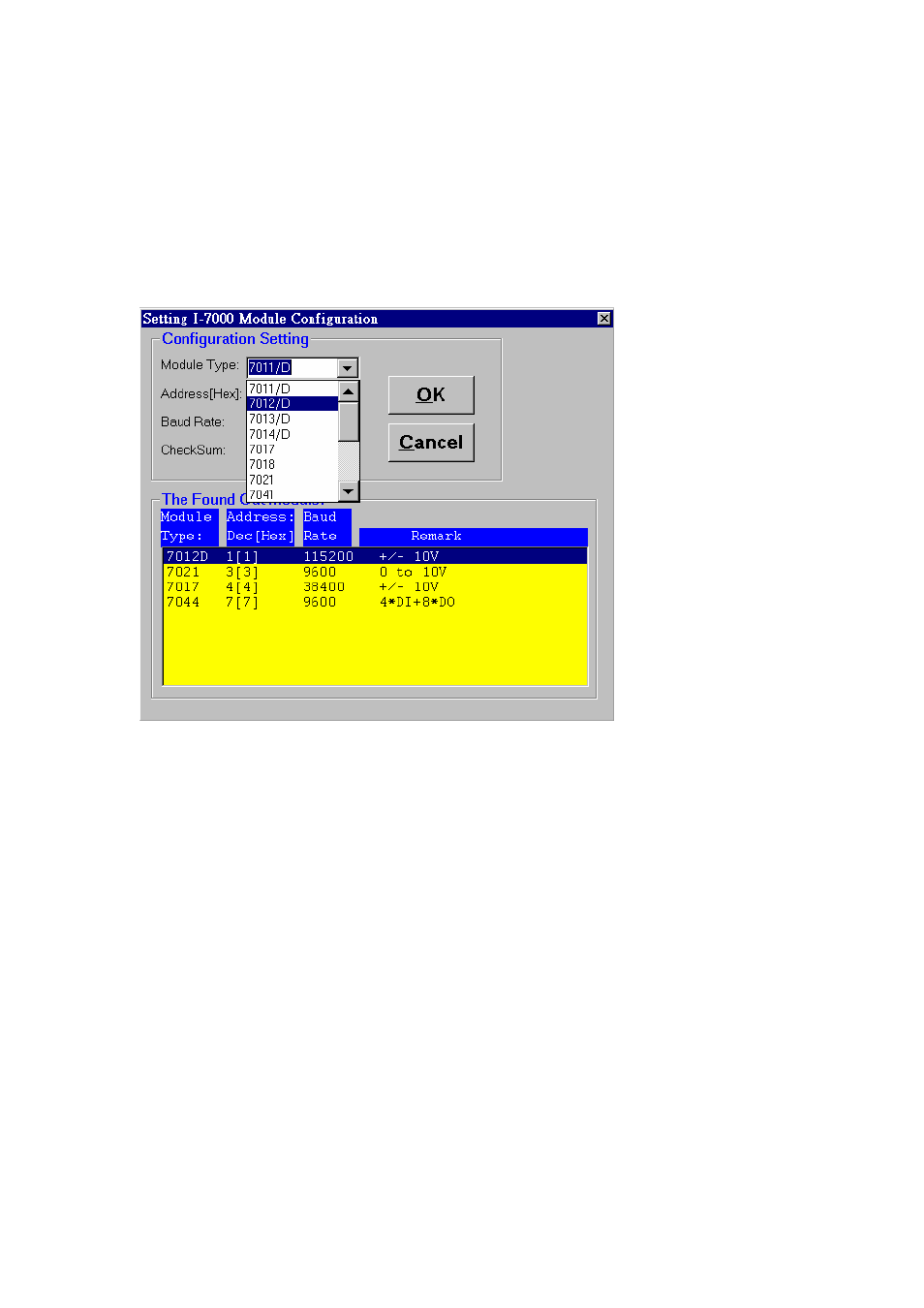

Fig 2-10 select the desired module.

If selecting 7012/D by method 1 then the following step3, step4 and step 5 is

necessary. If using method 2 then skip step3, step4 and step5.

Step 3:

Entry the module address for the selected module. In this case, please enter

Step 4:

Select the exact baud rate in the Baud Rate Combo for the selected module.

In this case, please select 9600.

Step 5:

Select the status of checksum(Disable or Enable) for your CB-7012D.

Notice, the status of checksum must be exact to your physical CB-7012D module

device. If you select Enable, you must to enable checksum status for CB-7012D. The
