Relay screw terminals, Relay logic jumper (jp2), Power-in jumper (jp1) – Measurement Computing 6K-ERB08 User Manual

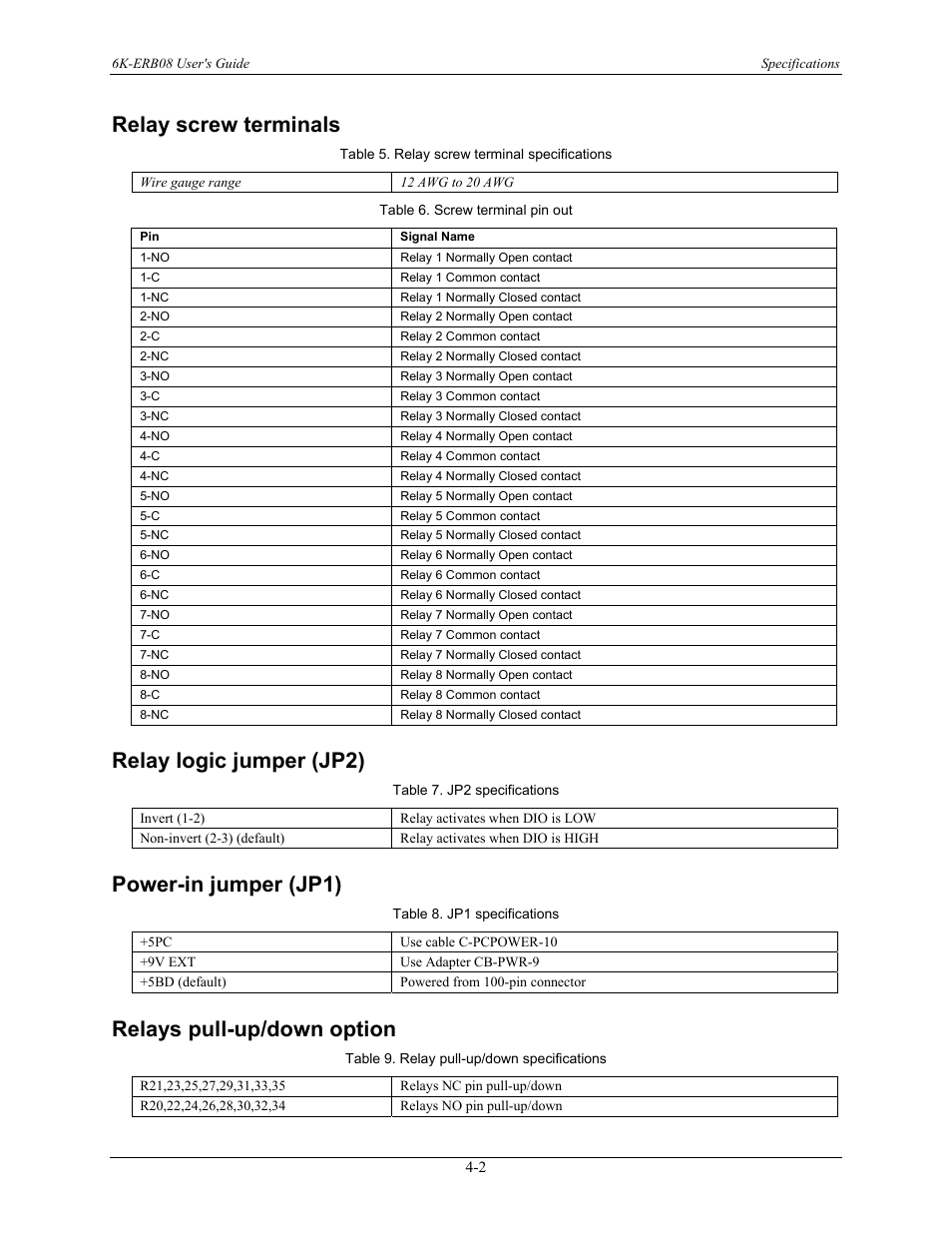

Page 26: Relays pull-up/down option, Relay screw terminals -2, Relay logic jumper (jp2) -2, Power-in jumper (jp1) -2, Relays pull-up/down option -2

Relay screw terminals, Relay logic jumper (jp2), Power-in jumper (jp1) | Relays pull-up/down option, Relay screw terminals -2, Relay logic jumper (jp2) -2, Power-in jumper (jp1) -2, Relays pull-up/down option -2 | Measurement Computing 6K-ERB08 User Manual | Page 26 / 32 Relay screw terminals, Relay logic jumper (jp2), Power-in jumper (jp1) | Relays pull-up/down option, Relay screw terminals -2, Relay logic jumper (jp2) -2, Power-in jumper (jp1) -2, Relays pull-up/down option -2 | Measurement Computing 6K-ERB08 User Manual | Page 26 / 32
