LPC 48 / 96 Users Manual
Page 29
Parked channels levels are not included in Cues or Submasters that are
recorded while the channels are on.
The interface for Park is shown in figure 14.
Select the Park tab and the Park screen will appear.
• To park a desk channel use the left dialog box.
• To park a DMX or dimmer channel use the right dialog box
1. Select the desired dialog box and the on-screen keypad will appear.
2. Enter the Channel number and Level
3. The parked channel number and level will appear in a list to the right of
the dialog box.
4. To Un-Park a channel, highlight a desk channel or dimmer channel from
the list and select Delete.

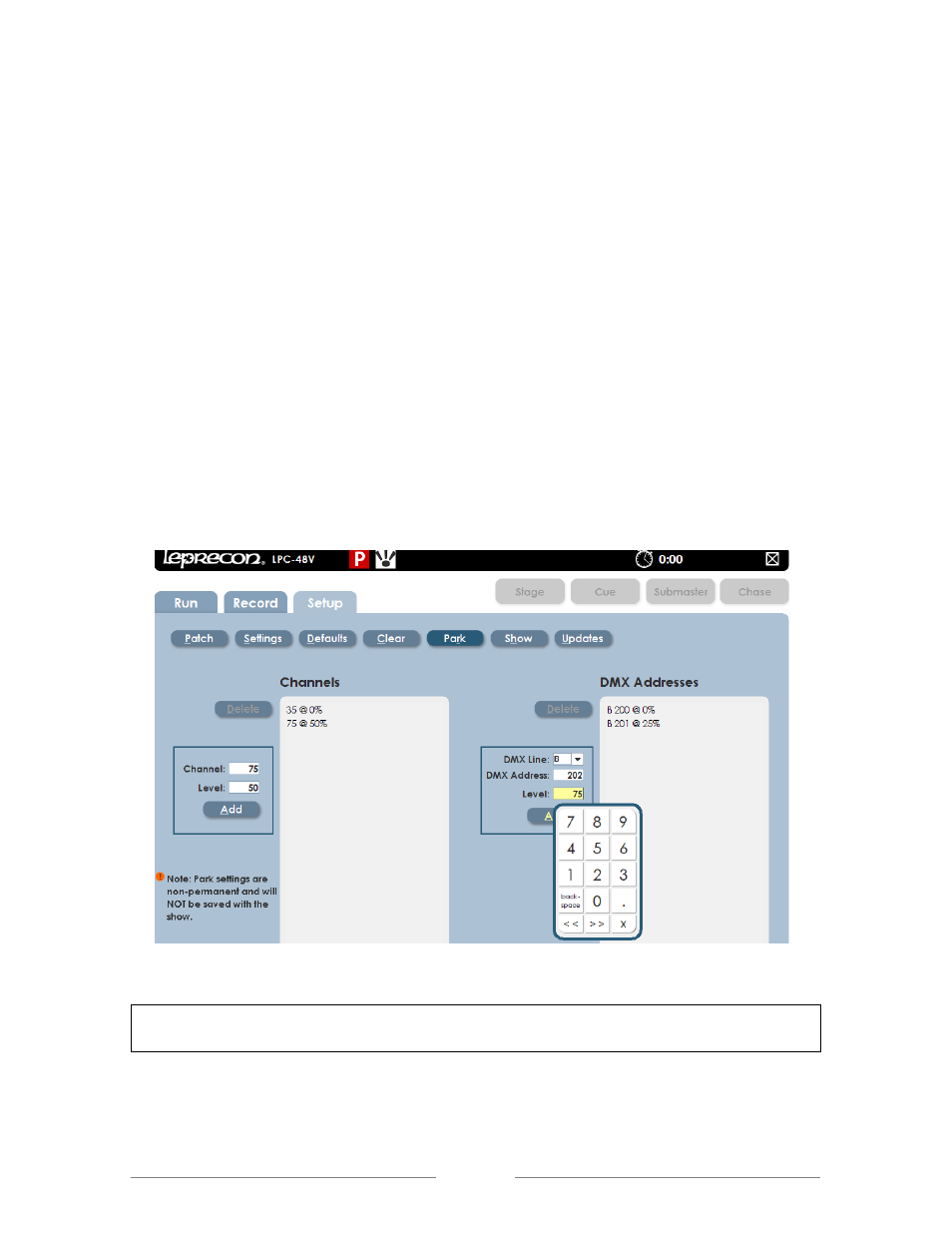

Figure 14: Park Screen
If any channels or dimmers are Parked, a red indicator with the letter ‘P’ is shown
on the title bar at the top of the screen.
