Features

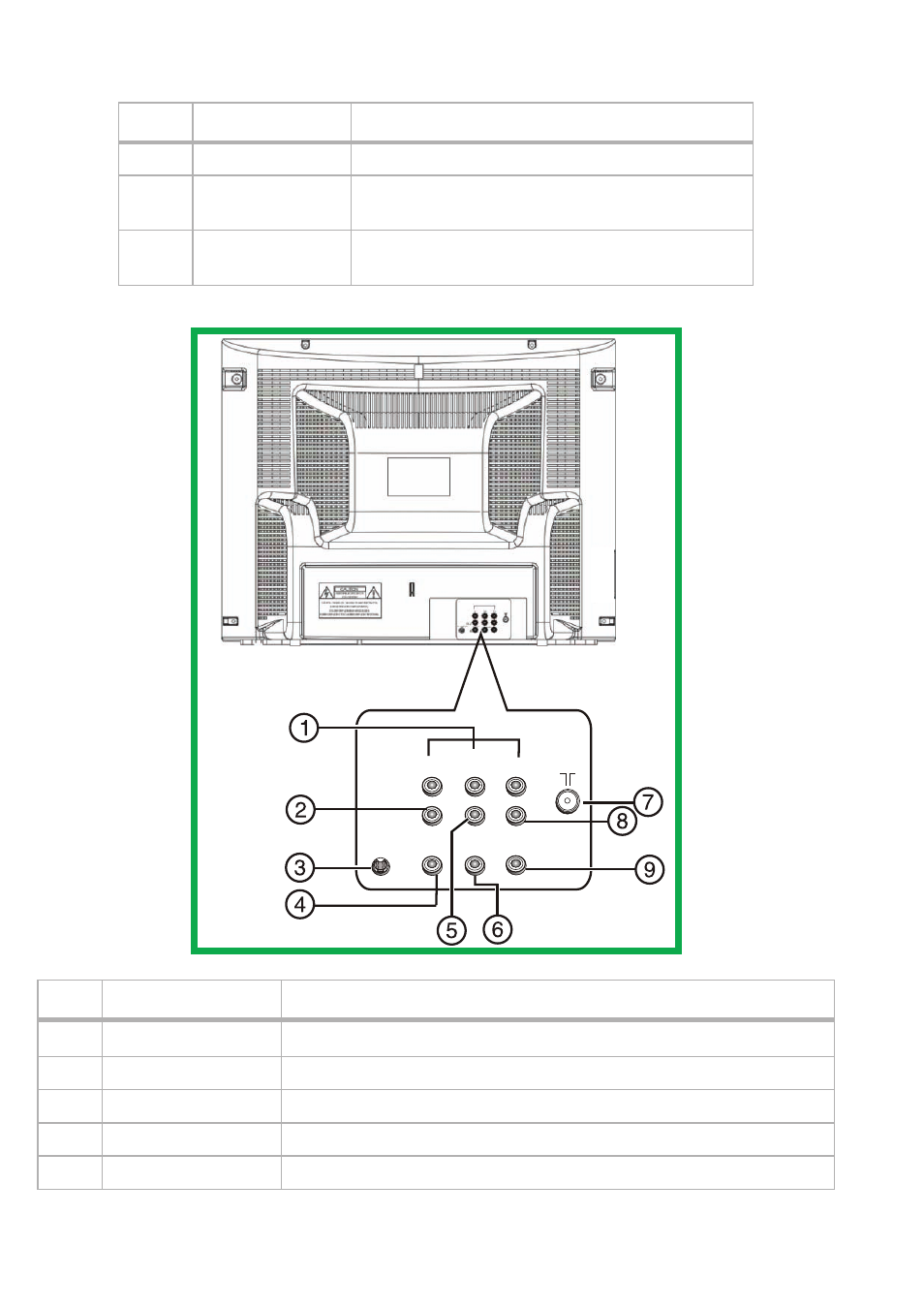

Rear
4 MENU button Press to open the on-screen display (OSD)
5 VOL-/VOL+ buttons Press to decrease or increase the volume. When the OSD is
open, press to adjust the options.
6 CH-/CH+ buttons Press to select a lower or higher channel. When the OSD is
open, press to make selections.
Item Name Function or control
1 COMPONENT input jacks Connect the Y, C
B
, and C
R
cables from an external AV source to these jacks.
2 Video output jack Connect a video (yellow) cable from this jack to an external monitor or display.
3 S-VIDEO input jack Connect the S-Video cable from an external video source to this jack.
4 VIDEO input jack Connect the video (yellow) cable from an external AV source to this jack.
5 Left AUDIO output jack Connect the audio left (white) cable from this jack to an external audio amplifier.
Item Name Function or control
OUT
IN
VIDEO L-AUDIO-R
Y Cb Cr
ANT IN
S-VIDEO
IN
