Setting up your TV
15

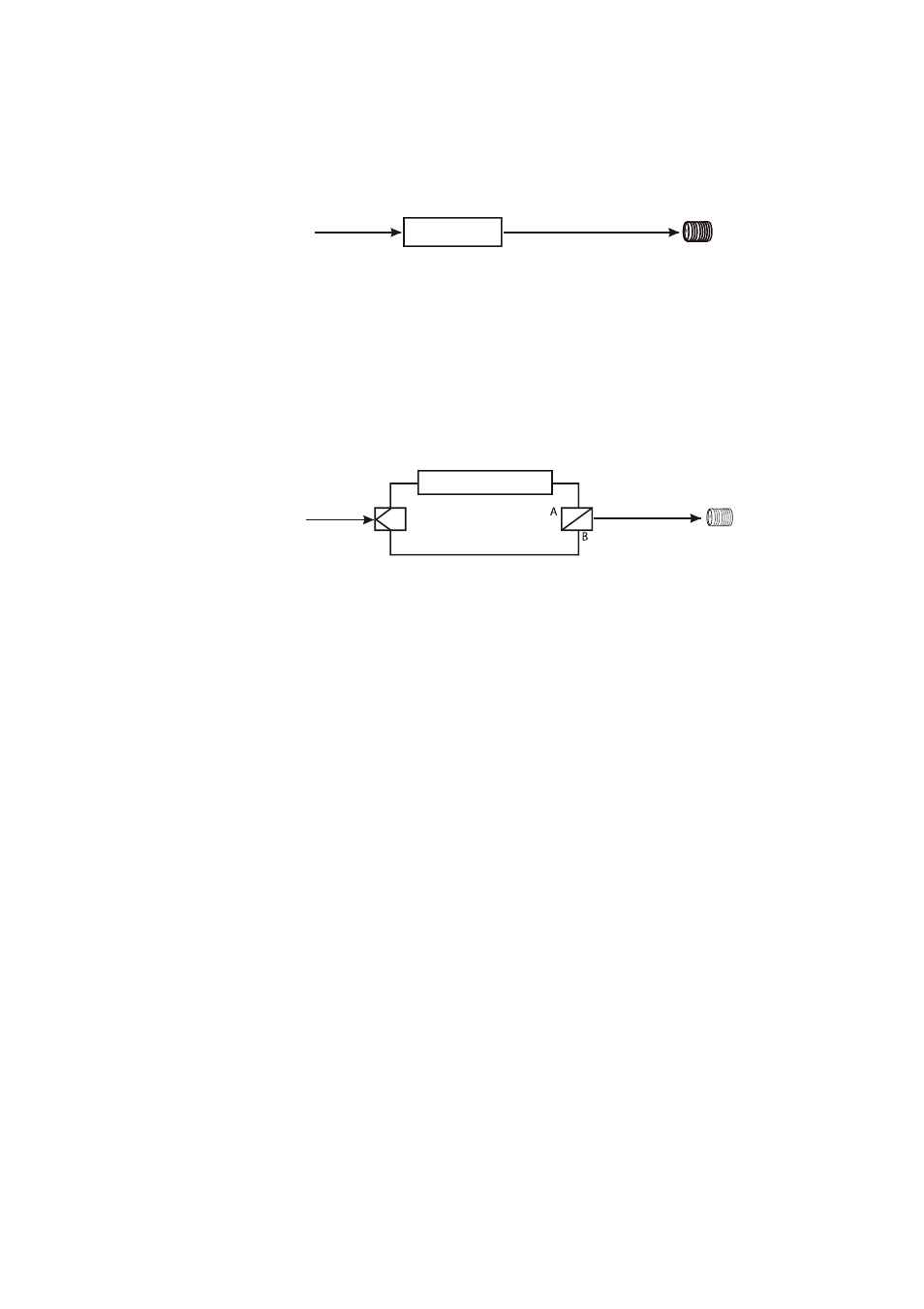

To connect a cable converter box:
1 Connect a 75 ohm coaxial cable from the cable TV wall outlet to the antenna input jack
on the back of the converter box.
2 Connect a 75 ohm coaxial cable from the antenna out jack on the back of the converter
box to the antenna input jack on the back of your TV.
To connect cable with both scrambled and unscrambled signals:
1 Connect a 75 ohm coaxial cable to a signal splitter (not included).
2 Connect a 75 ohm cable from the signal splitter to the converter box and another
75 ohm cable to the B connector on an A/B switch (not included).
3 Connect a 75 ohm cable from the antenna out jack on the converter box to the A
connector on the A/B switch.
4 Connect a 75 ohm cable from the output jack on the A/B switch to the antenna in jack
on the back of your TV.
5 Use the A/B switch to switch the signal from scrambled to unscrambled.
Incoming cable
Antenna input jack Converter box
Antenna input jack
75 ohm coaxial cable
from antenna, cable
wall outlet, or
descrambler box Converter box
A/B switch Signal splitter
