Setting up your TV
Connecting to other equipment
The exact arrangement you use to connect various video and audio components to the TV is
dependent on the model and features of each component. Check the owner's manual
provided with each component for the location of video and audio inputs and outputs.

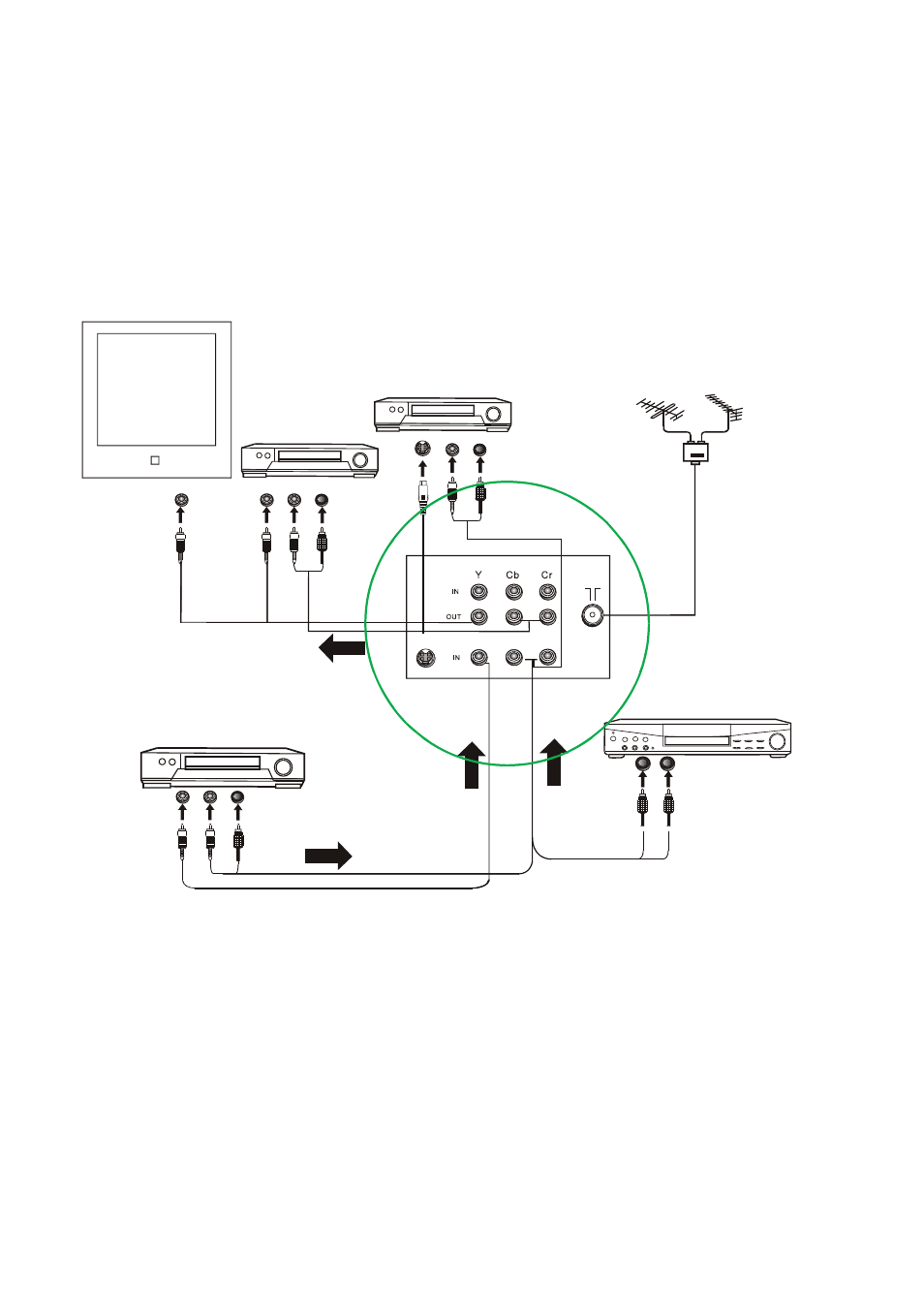

The following connection diagrams are offered as suggestions. You may need to modify them
to accommodate your particular components. This diagram is intended to show example
video and audio connections only.
Selecting the video input source
Press INPUT on the remote control or the TV to view a signal from another device connected
to your TV, such as a VCR or DVD player. You can select ANT, VIDEO
(or S-VIDEO), or
COMPONENT, depending on which input jacks you used to connect your devices.
Note: The S-Video input uses the same circuit as VIDEO. If both S-Video and VIDEO inputs are
connected, the S-Video signal overrides the VIDEO signal and S-VIDEO is shown on the
on-screen display. To watch the VIDEO input, disconnect the S-Video cable.
