14
Setting up your TV

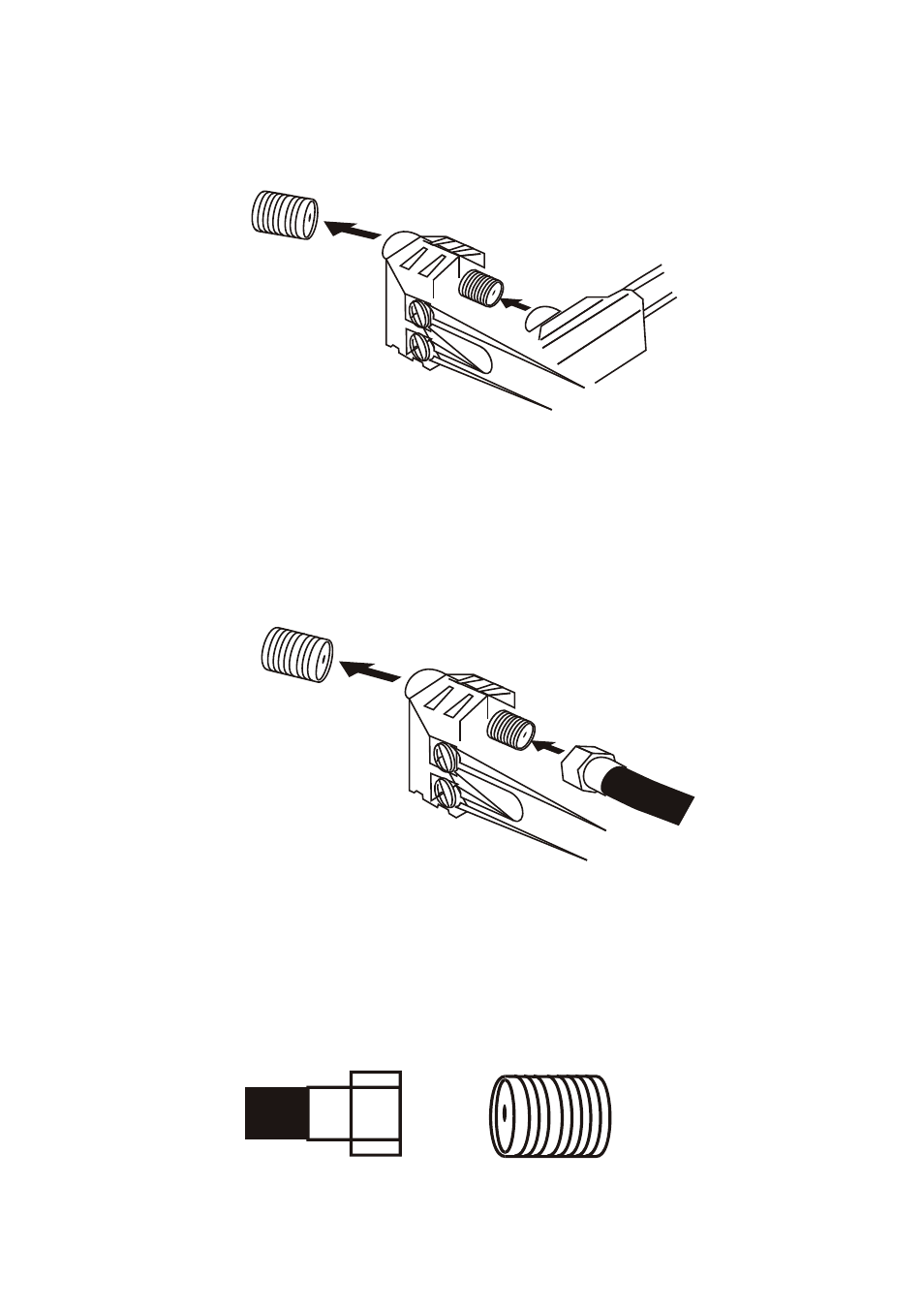

To connect a combination VHF/UHF antenna with separate 300 ohm VHF and UHF
twin-lead wires:
1 Connect the 300 ohm UHF twin-lead wire to the combiner (not-included).
2 Connect the 300 ohm VHF twin-lead wire to the 300-75 ohm matching transformer.
3 Connect the transformer to the combiner, then connect the combiner to the antenna
input jack on the back of your TV.
To connect separate VHF and UHF antennas (75 ohm VHF and 300 ohm UHF twin-lead
wires):
1 Connect the 75 ohm VHF and 300 ohm UHF twin-lead wires to the combiner
(not-included).
2 Connect the combiner to the antenna input jack on the back of your TV.
Connecting cable TV
To connect basic cable (no converter box):
• Connect the 75 ohm coaxial cable to the antenna input jack on the back of your TV.
Combiner
Antenna input jack
300 ohm UHF
300-75 ohm matching
transformer
300 ohm VHF
Antenna input jack
75 ohm VHF cable
Combiner
300 ohm UHF
twin-lead wire
75 ohm coaxial cable
from cable wall outlet
Antenna input jack
