DS6400
2
2.3.3 Ethernet Connector
This connector is only available for DS6400 Ethernet models and allows the Ethernet
connection between the host and the reader.
8 1

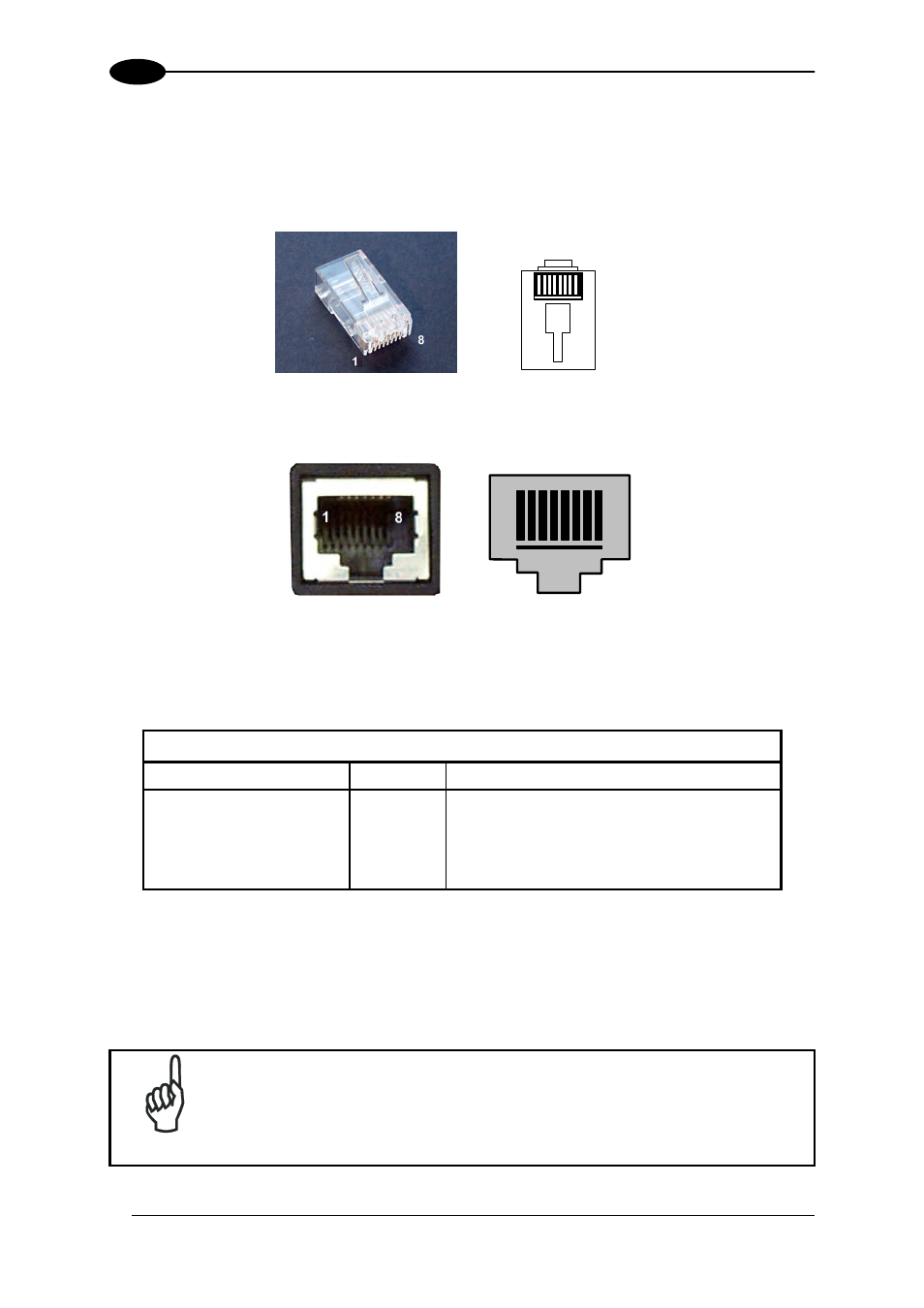

Figure 38 – Cable RJ45 Male Modular Connector
1 8
Figure 39 – DS6400 RJ45 Female Modular Connector
This interface and the connector pinout (see the following table) are IEEE 802.3 10 BaseT
and IEEE 802.3u 100 Base Tx c
Modu
ompliant.
RJ45 lar Jack Pinout
P in Name Function
1 TX + Transmitted data (+)
2 TX - Transmitted data (-)
3 RX + Received data (+)
6 RX - Received data (-)
4, 5, 7, 8 N.C. Not connected
In order to meet EMC requirements:
• use Eth shielded cable
connect the Ethernet interface cable • shield to the plant earth ground
NOTE
The cable shield must be connected to the chassis of both connectors.
A ferrite (type Stewart 28A2029-0A0) may also be applied on the scanner
side of the Ethernet cable to reduce electrical noise.
