The FBK-6000 is a fast bracket kit allowing a quick and easy mounting of the scanner on
either the ST-210 or the ST-237 brackets.
First, it is necessary to fix the FBK-6000 to the DS6400 scanner by means of the mounting
screws:

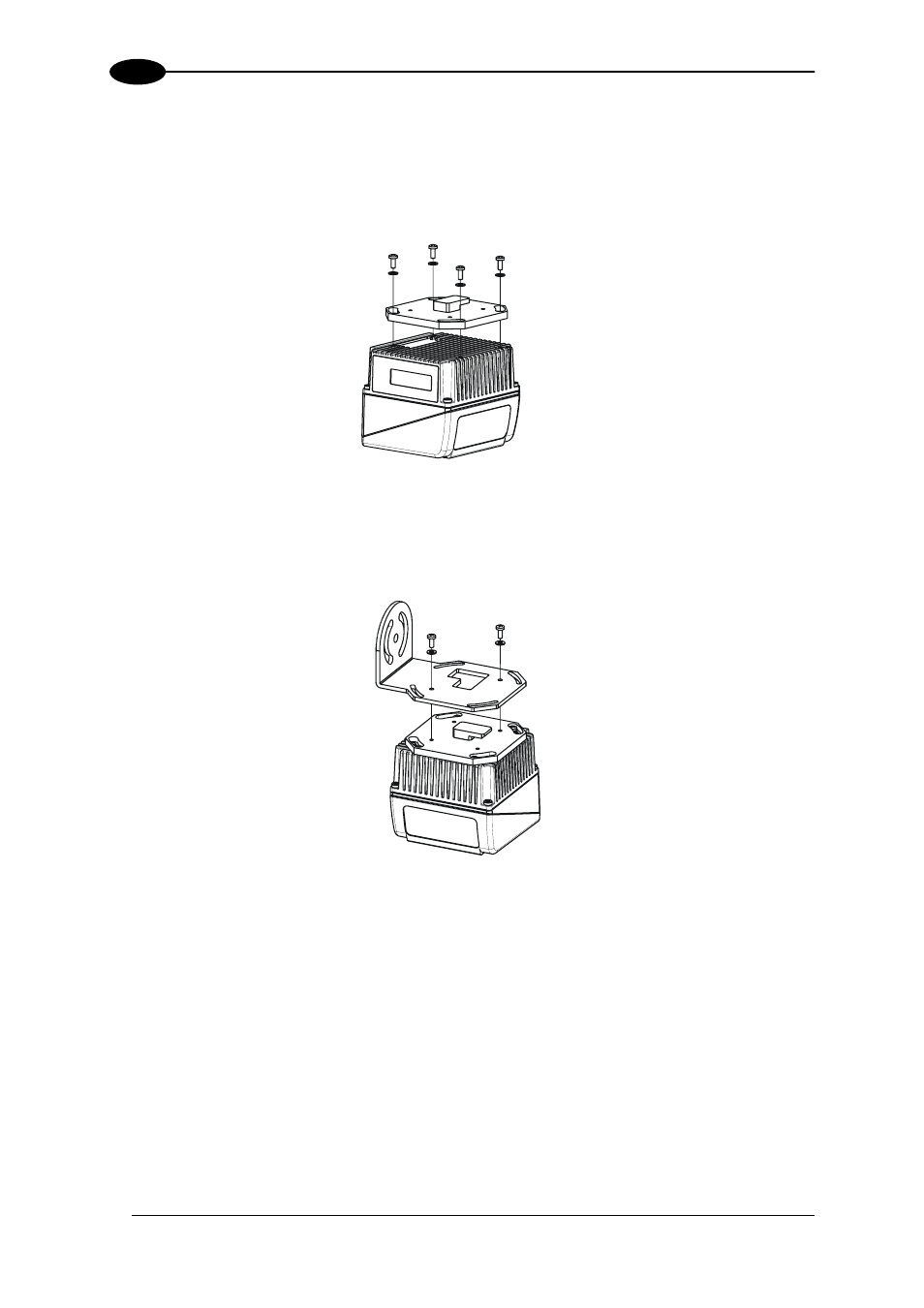

Figure 14 – Mounting the FBK-6000 on the Scanner
Then, attach the assembly to the mounting bracket by slipping the hook into the bracket hole.
Finally, fix it by means of the 2 fixing screws:
Figure 15 – Mounting the Assembly on the Bracket
