6

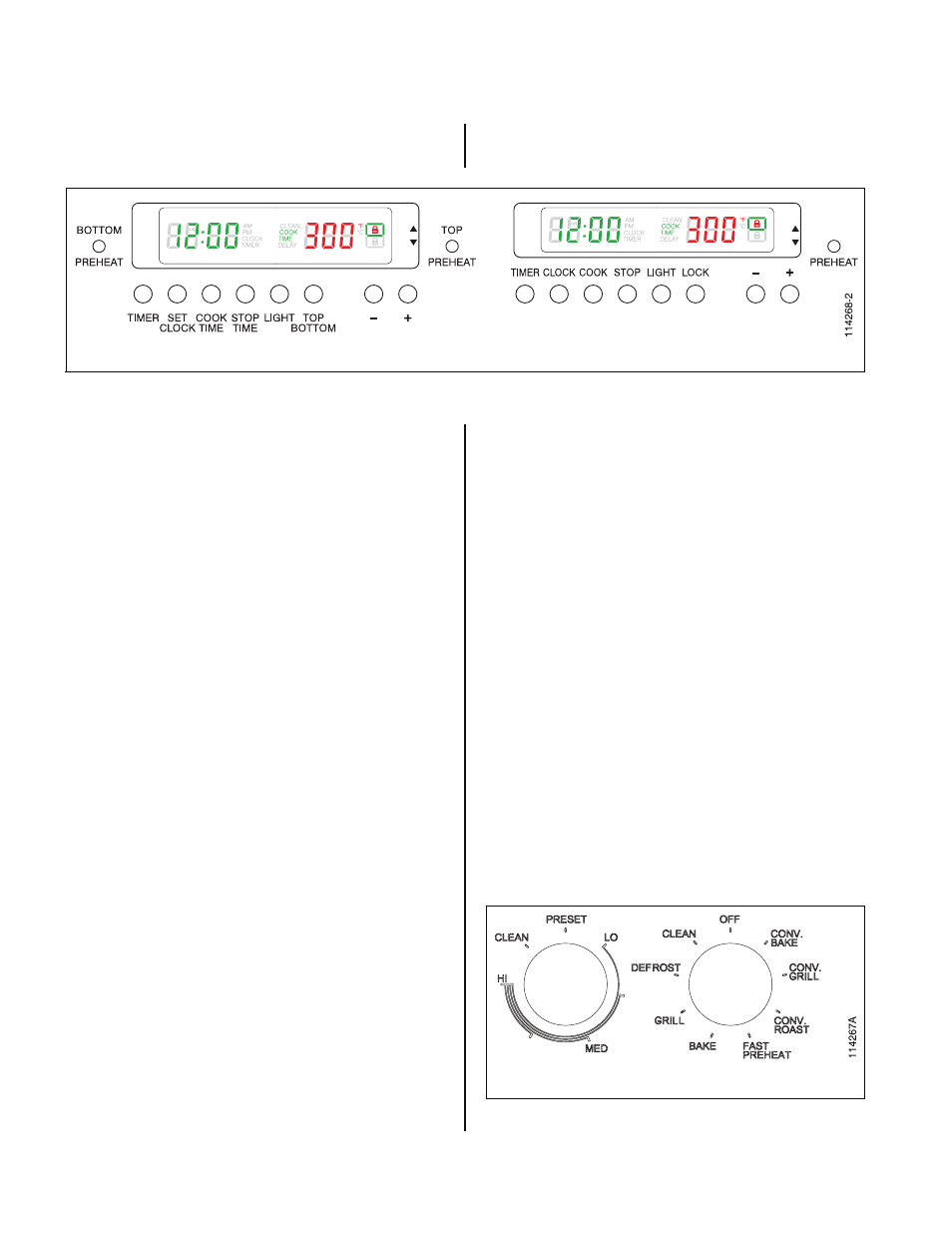

THE CONTROL PANELS
The user interface has the following features:
display, preheat light indicators, keys for commands, cooking mode and temperature
selectors.
N E V O E L G N I S N E V O E L B U O D
3 e r u g i F
Command Keys
[SET CLOCK or CLOCK ]: to set or change
the time of day.
[TIMER]: set or clear the minute minder.
[COOK TIME or COOK]: press this key to set or
change the duration of a cooking activity.
[STOP TIME or STOP]: to set or change
the stop time in a timed or delayed cooking mode.
Whenever one of the former keys has been
pressed and the time digits are blinking, press
and/or hold the following keys to change the
values.
[LIGHT]: to switch the oven lights status.
The function of the following keys depends on
the oven model:
[TOP / BOTTOM] (double oven): press it to
select the upper cavity if none is selected.
If one of the two is already selected, simply
toggle to the other one.
[LOCK] (single oven): hold it together with [+] to
operate safety lock.
[INCREMENT] [+]: press to increase the value of
the currently selected variable.
[DECREMENT] [-]: press to decrease the value
of the currently selected variable.
Display
Preheat light (external).
Four time digits (green), for time of day, minute
minder, automatic cooking. AM/PM indication is
also present.
Three temperature digits (red), for oven
temperature. Degree unit (°C or °F) indication is
present. It shows the temperature set-point for
the current cooking mode, in the selected cavity.
Box and lock icons to show which cavity is
currently selected and which door, if any, is fully
locked, while running in clean or cooling down
after a clean.
Text to indicate which function is active (steady)
or waiting for a user input (blink).
Knobs
Cooking mode selector
Eight cooking modes + OFF position.
Temperature selector.
PRESET and CLEAN positions + continuous
range between LOW and HIGH values.
Multifunction knobs
Figure 4
