Kleenmaid FEG900X - Manual (Page 29)

29
ANTI-TILT BRACKET
Fixing the anti-tilt bracket:
[
After you have located where the cooker is to be positioned mark, on the wall, the place
where the 2 screws of the anti-tilt bracket have to be fitted. Please follow the indications
given in the drawing below (fig. 27).
[
Make two holes of diameter 8mm on the wall and insert the plastic plugs.
[
Attach the anti-tilt bracket loosely by means of 2 screws.
[
Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can
engage in one slot of the cooker back.
[
Tighten the anti-tilt bracket screws to attach it firmly to the wall.
[
Push the cooker against the wall so that the anti-tilt bracket is fully inserted in one slot of
the cooker back.

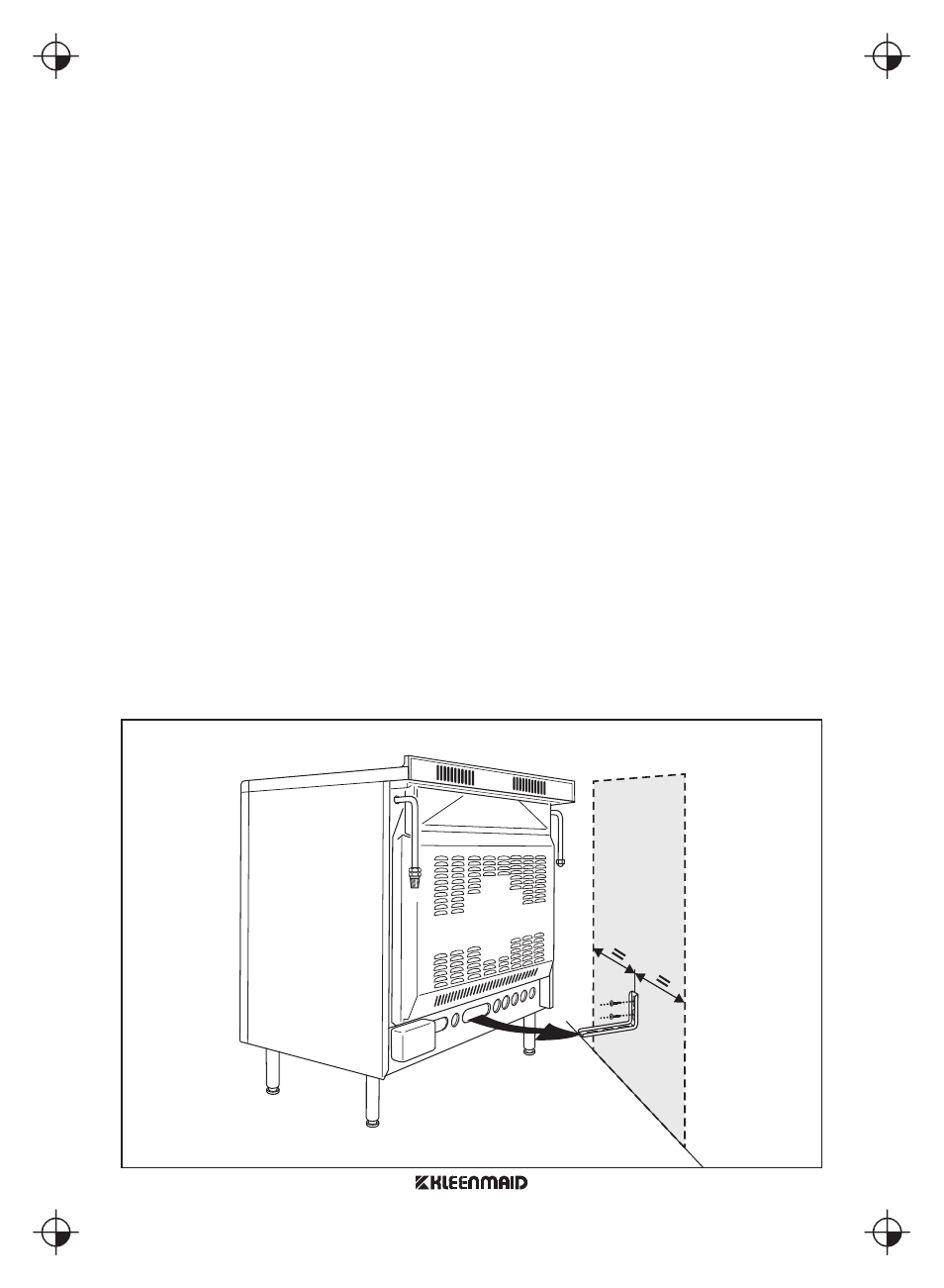

Fig. 27
