2.4. connecting the Machine to the Mains supply
The installation or replacement of the mains cable and the plug may be carried
out only by an authorized electric shop or electrician.
Mastertig AC/DC 2000
The machine is delivered with a mains cable with an earthed plug for connection to a mains
supply of 230 V.
To be noted when replacing the mains cable:

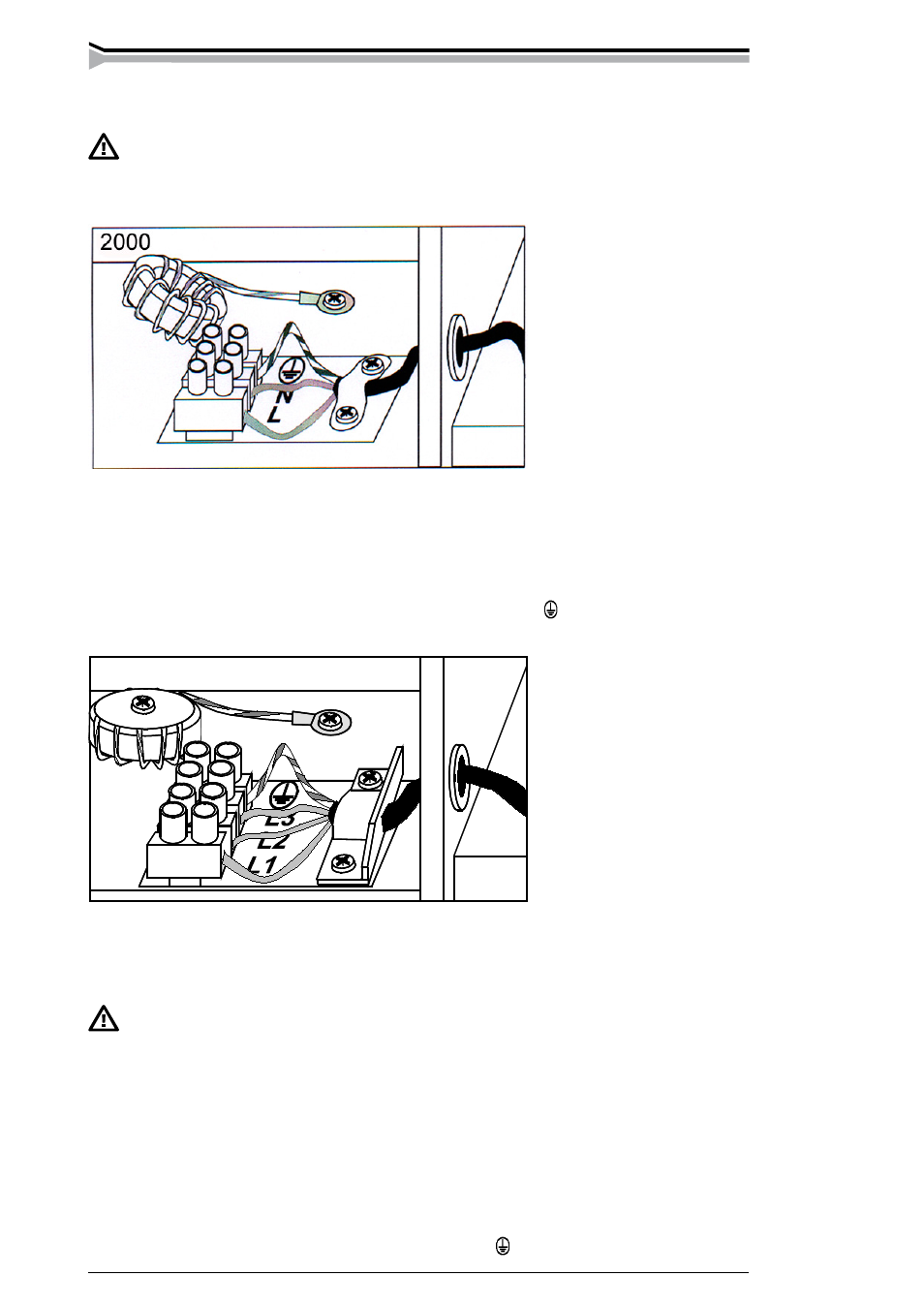

The lifting handles, cover and the right-hand-side plate have to be opened. The cable in brought
to the machine through the inlet ring on the rear panel and fastened with a cable clamp. The
phase lead of the cable are coupled to connector L, the blue to the connector of the N lead and
the yellow-green to the connector of the protective grounding lead .
Mastertig AC/DC 2500, -2500W and -3500W
The machine is delivered with a 5 m mains cable (4×2.5 mm 2 ) without a plug. Mains cable is
suitable for all mains voltages with recommended fuse size (please look at Technical data table).
4×6 mm 2 cable can be connected to the machine, if local regulations are requiring it.
If you use greater fuse size than recommended big short circuit current can
cause extra damage in case of failure.
Mastertig AC/DC 2500, -2500W
Before connecting the machine to the mains supply, make sure that the voltage change-over
switch of the machine is turned to the position corresponding to the mains supply voltage (230 /
400 / 460 V).
When replacing the mains cable, note the following:
The lifting handles, cover and right-hand-side plate of the machine have to be opened. The cable
is brought to the machine through the inlet right on the rear panel and fastened with a cable
clamp. The phase leads of the cable are coupled to connectors L1, L2 and L3; the yellow-green
is coupled to the connector of the protective grounding lead .
