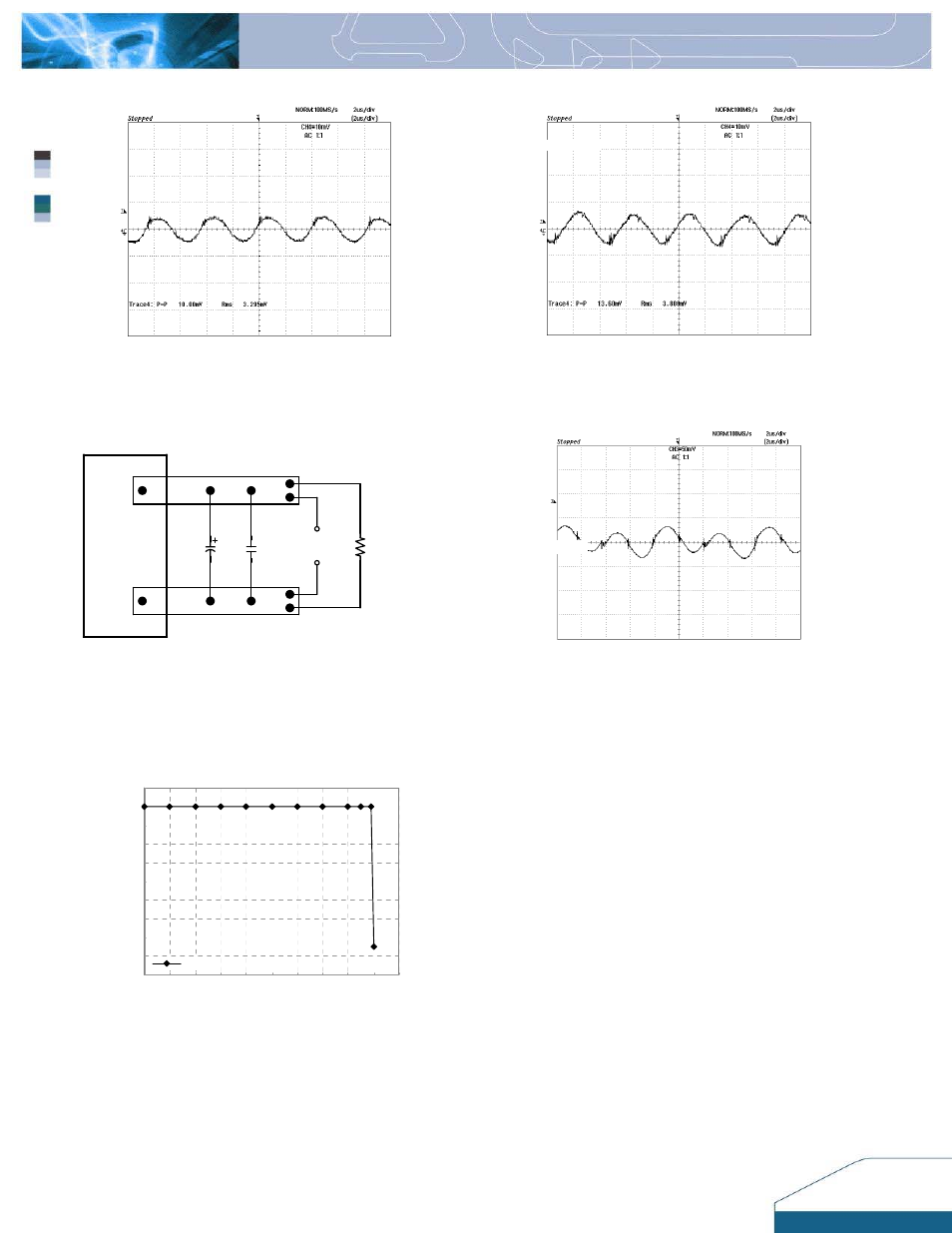

ELECTRICAL CHARACTERISTICS CURVES
Figure 13:
Input Terminal Ripple Current, i
c
, at full rated
output current and nominal input voltage with 12µH source
impedance and 33µF electrolytic capacitor (500 mA/div).
Figure
14:
Input reflected ripple current, i
s
, through a 12µH
source inductor at nominal input voltage and rated load current
(5 mA/div).
Vo(-)
Vo(+)
10u
1u
Copper Strip
SCOPE
RESISTIVE
LOAD
Figure 15:
Output voltage noise and ripple measurement
test setup
Figure
16:
Output voltage ripple at nominal input voltage and
rated load current (50 mV/div). Load capacitance: 1µF ceramic
capacitor and 10µF tantalum capacitor. Bandwidth: 20 MHz.
Scope measurement should be made using a BNC cable (length
shorter than 20 inches). Position the load between 51 mm to 76
mm (2 inches to 3 inches) from the module.
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0
10
20
30
40
50
60
70
80
90
100
LOAD CURRENT (A)
OU
T
P
U
T
VOL
T
AGE (
V
)
Vin=48V
Figure 17:
Output voltage vs. load current showing typical
current limit curves and converter shutdown points.
