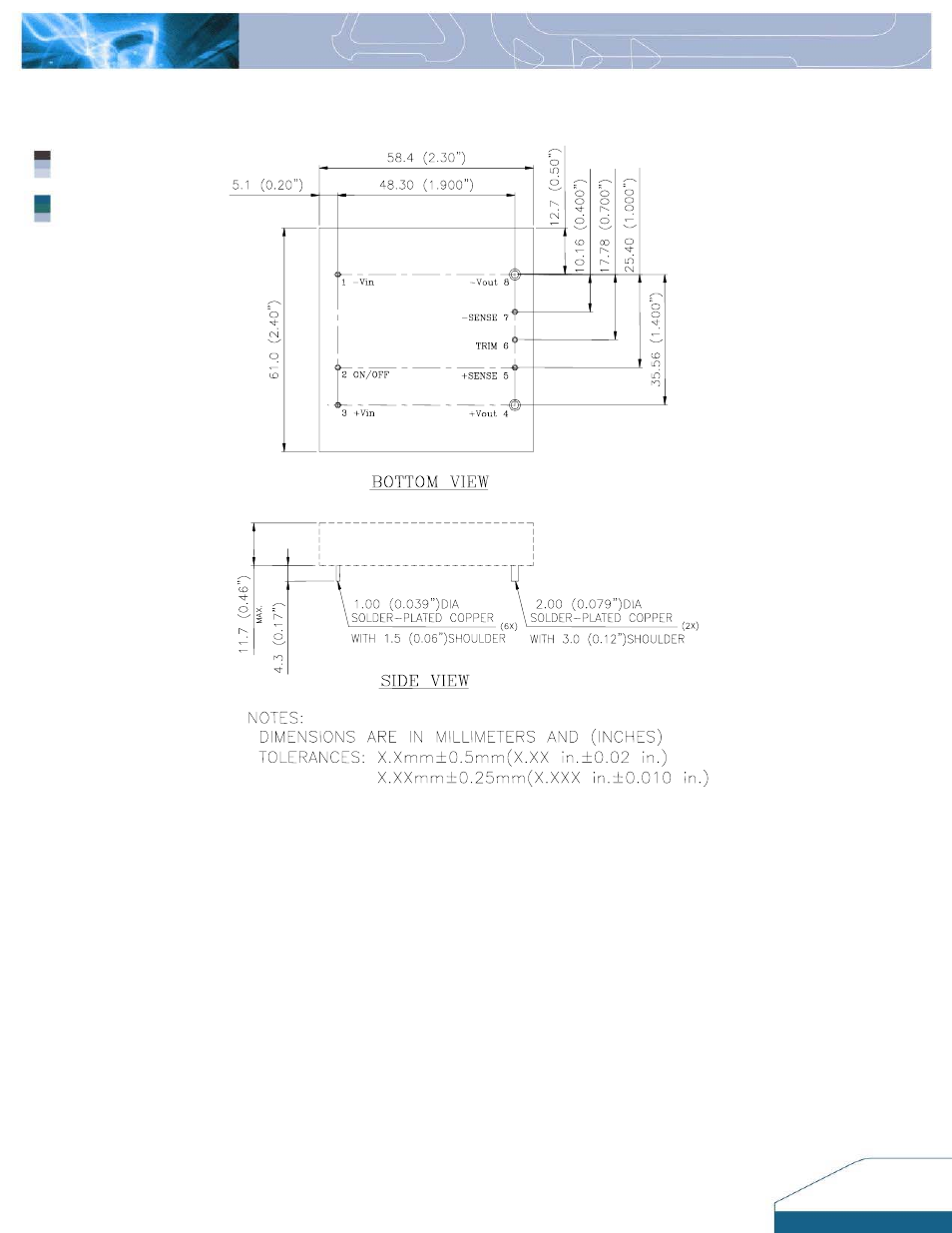

MECHANICAL DRAWING
Pin No. Name
Function
1
2
3
4
5
6
7
8
-Vin
ON/OFF
+Vin
+Vout
+SENSE
TRIM
-SENSE
-Vout
Negative input voltage
Remote ON/OFF
Positive input voltage
Positive output voltage
Positive remote sense
Output voltage trim
Negative remote sense
Negative output voltage
Notes:
1
2
3
Pins 1-3, 5-7 are 1.00mm (0.039”) diameter
Pins 4 and 8 are 2.00mm (0.079”) diameter
All pins are copper with Tin plating.
