Delta Electronics Network Device DVPPF01-S User Manual

Net power 1 0, 01 sto p

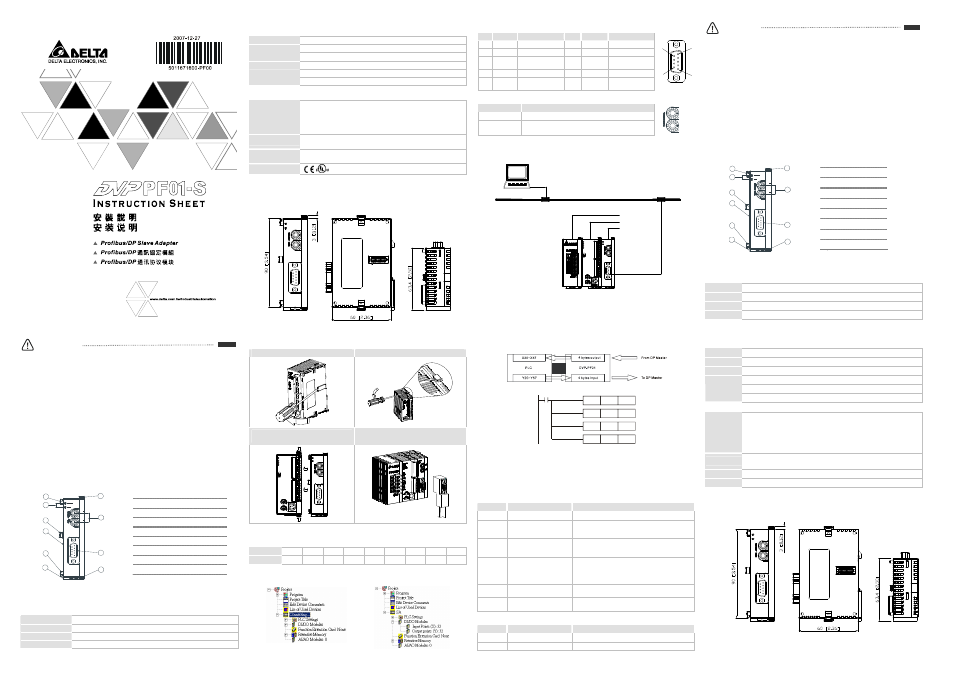

background image

Warning

This instruction sheet only provides descriptions for electrical specifications, general specifications, installation and

wiring.

This is an OPEN TYPE Controller. The DVPPF01-S should be kept in an enclosure away from airborne dust, humidity,

electric shock risk and vibration. Also, it is equipped with protective methods such as some special tool or key to open

the enclosure, so as to avoid the hazard to users or any damage to the module. DO NOT touch terminals when power

on.

Introduction

Functions

• Cyclical data exchange process

• Support the SYNC and FREEZE for data synchronization between master and slaves

• Support Auto Baud rate detection

• Support 12MHz baud rate in DP network

• Cyclical data size is fixed to 4 bytes input and 4 bytes output

• Support GSD file configures by using configuration tools

Product Profile

3

5

4

1

2

4

8

6

7

6

D

V

P

-P

F

0

1

x16

x16

Model name

Extension port

Power/NET LED

Extension hole for mounting unit or module

DIN rail clip

Extension clip

Address switch

Profibus connector

Specifications

DP Connection

Interface

DB9 pin connector

Transfer method

High speed RS-485

Transfer cable

2-wire twisted shielded cable

Electrical isolation

500V DC

ENGLISH

Communication

Message types

DPV0, cyclical data exchange process

Device ID

09B9 HEX

GSD file

EATN09B9.GSD

Model name

DVPPF01-S

9.6kbps, 19.2kbps, 93.75kbps, 187.5kbps, 500kbps

Baud rates

(auto detected)

1.5Mbps, 3Mbps, 6Mbps, 12Mbps

Environmental Specification

Noise immunity

ESD (IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2KV, Digital I/O: 1KV

Analog & Communication I/O: 1KV

Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV

RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

Environment

Operation: 0°C ~ 55°C (temperature), 50 ~ 95% (humidity), Pollution degree 2
Storage: -25°C ~ 70°C (temperature), 5 ~ 95% (humidity)

Vibration/shock
resistance

Standard: IEC 61131-2, IEC 68-2-6 (TEST Fc)

IEC 61131-2 & IEC 68-2-27 (TEST Ea)

Approvals

Installation & Configuration

Dimensions

D

V

P

-P

F

0

1

x16

x16

NET

POWER

1

0

Dimensions are in millimeter and [inch]

Installing the DVPPF01-S with the PLC Controller

Open the extension cover with a screwdriver.

Use a screwdriver to lift and unfasten the fixing clip.

Connect the DVPPF01-S to extension port of PLC
controller and fasten the fixing clip.

Plug the Profibus connector to the socket of
DVPPF01-S, and tighten screw to secure the
connector.

0

1

STO P

D

V

P

-1

2

S

A

RUN

RUN

BAT.LOW

ERROR

POWER

R

S

-2

3

2

R

S

-4

8

5

POWER

C0

X7

Y0

C1

Y1

Y2

Y3

C2

D

V

P

-P

F

0

1

s

X1

X2

X0

X5

X4

X3

X6

s

NET

x16

x16

1

0

Cable Length and Baud Rate

The Maximum cable length in a segment depends on the transmission speed. Profibus-DP communicates at
speeds from 9.6kbps to 12Mbps over distances from 100 to 1,200 meters.

Baud rate (bps)

9.6k

19.2k

93.75k

187.5k

500k

1.5M

3M

6M

12M

Length (m)

1,200

1,200

1,200

1,000

400

200

100

100

100

Check the extension I/O by WPL software:

Connect to PLC MPU

Once connection is successful, software will check if 32
inputs/outputs is detected

PIN Definition of DP Connector

PIN

Definition

Content

PIN

Definition

Content

1

--

N/C

6

VP

Positive voltage

2

--

N/C

7

--

N/C

3

RxD/TxD-P

Data receiving/sending

P (B)

8

RxD/TxD-N

Data receiving/sending

N (A)

4

--

N/C

9

--

N/C

5

DGND

Data reference

potential (C)

1

5

9

6

MAC ID Setting

Address

Content

1…0x7D

Valid Profibus address

0 or

0x7E…0xFF

Invalid Profibus address. NET LED will rapidly blink with RED when

node address is at 0, 0x7E…0xFF

'

x16

'

x16

Setting of DVPPF01-S Connect to Profibus-DP

Connection example:

DVP-PF01

Profibus network

DVP-PS01

DVP-12SA

D

V

P

-P

F

0

1

Y3

D

V

P

-1

2

S

A

0

1

R

S

-2

3

2

R

S

-4

8

5

X4

R UN

STO P

C1

Y1

C 2

Y2

X5

X6

Y0

C0

X7

RUN

POWER

BAT .LOW

ERROR

X2

X 1

X0

s

s

X3

x16

x16

N ET

P OWER

PC Master

1

0

DVPPF01-S provides fixed 4 bytes input data and 4 bytes output data to user in Profibus-DP system. 4 bytes

input data are transmitted from DVPPF01-S module to Profibus-DP Master, it are mapping to Y20-Y57 in PLC

controller when DVPPF01-S is the first extension unit of PLC. 4 bytes output data are transmitted from

Profibus-DP Master, and it are also mapping to X20-X57 in PLC controller.

Data Mapping

Following is a ladder program example:

M1000

MOV

K4X20

D10

MOV

MOV

MOV

K4X40

D20

D21

K4Y40

K4Y20

D11

This program example copies the 4 bytes data from X20-X57 that transmitted by DP master to D10 and D11

registers in PLC controller. And, PLC controller will write 4 bytes data in D20 and D21 registers to Y20-Y57,

these 4 bytes data will send to DVPPF01-S, and DVPPF01-S will send these data to DP master.

Troubleshooting

NET LED

LED status

Indication

Corrective actions

OFF

No power supply

Verify DVPPF01-S is powered on

Red blinking
(rapidly)

Invalid Profibus address setting
via switch

Check whether the switch setting is valid

Setting range of slave: 1-125
Set the valid value and re-power

Red blinking

Communication link to
PROFIBUS, and no cyclical
data exchanged

--

Red ON

No connection to Profibus

Verify that DP network installation is OK

Verify that PLC is working

Verify that switch address setting match with configuration in
DP master

Green
blinking

Reserved

--

Green ON

Cyclic data exchange in
progress and OK

--

Power LED

LED status

Indication

Corrective actions

Green ON

Power on

--

OFF

No power

Verify that PLC controller is powered on

注意事項

此安裝手冊只提供電氣規格、一般規格、安裝及配線等。

本機為開放型 (Open Type) 機殼,因此使用者使用本機時,必須將之安裝於具防塵、防潮及免於電擊/衝擊意
外之外殼配線箱內。另必須具備保護措施 (如:特殊之工具或鑰匙才可打開) 防止非維護人員操作或意外衝擊
本體,造成危險及損壞。請勿在上電時觸摸任何端子。

產品簡介

功能說明

• 循環資料處理

• 支援 SYNC 及 FREEZE 主站和從站間資料同步化

• 支援自動偵測鮑率

• 在 DP 網路中可使用 12MHz 鮑率

• 循環資料處理固定為 4 bytes 和 4 bytes 輸出

• 可使用設定工具設定 GSD file

各部介紹

3

5

4

1

2

4

8

6

7

6

D

V

P

-P

F

0

1

x16

x16

機種名稱

擴充機/擴充模組連接口

電源、NET 指示燈

擴充機/擴充模組定位孔

DIN

軌固定扣

擴充機/擴充模組固定扣

位址旋鈕

Profibus

連接口

規格

DP

連線

介面

DB9

接頭

傳輸方式

高速的 RS-485

傳輸線

2

絞線式隔離線

電氣隔離

500V DC

繁體中文

通訊

訊息類型

DPV0,

循環式處理資料交換

裝置 ID

09B9 HEX

GSD

檔案

DELT09B9.GSD

模組名稱

DVP-PF01

9.6kbps, 19.2kbps, 93.75kbps, 187.5kbps, 500kbps

鮑率(自動偵測)

1.5Mbps, 3Mbps, 6Mbps, 12Mbps

環境規格

雜訊免疫力

ESD (IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2KV, Digital I/O: 1KV

Analog & Communication I/O: 1KV

Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV

RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

操作/儲存環境

操作:0°C ~ 55°C(溫度),50 ~ 95%(濕度),污染等級 2
儲存:-25°C ~ 70°C(溫度),5 ~ 95%(濕度)

耐振動/衝擊

國際標準規範 IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC 68-2-27 (TEST Ea)

標準

IEC 61131-2, UL 508

標準

安裝與設定

外觀圖

D

V

P

-P

F

0

1

x16

x16

NET

POWER

1

0

單位: mm [inches]
