7 – Torch Component Replacement
Replace the torch body
1. Complete the following procedures:
a. Set the power switch to OFF (O), and disconnect the power cord from the power source.
b. Remove all components from the torch. See Remove the handle on page 187.
2. Remove the screw that attaches the torch power wire to the torch body. Set the nut and screw aside.
3. Peel off the tape that attaches the torch power wire to the torch body.

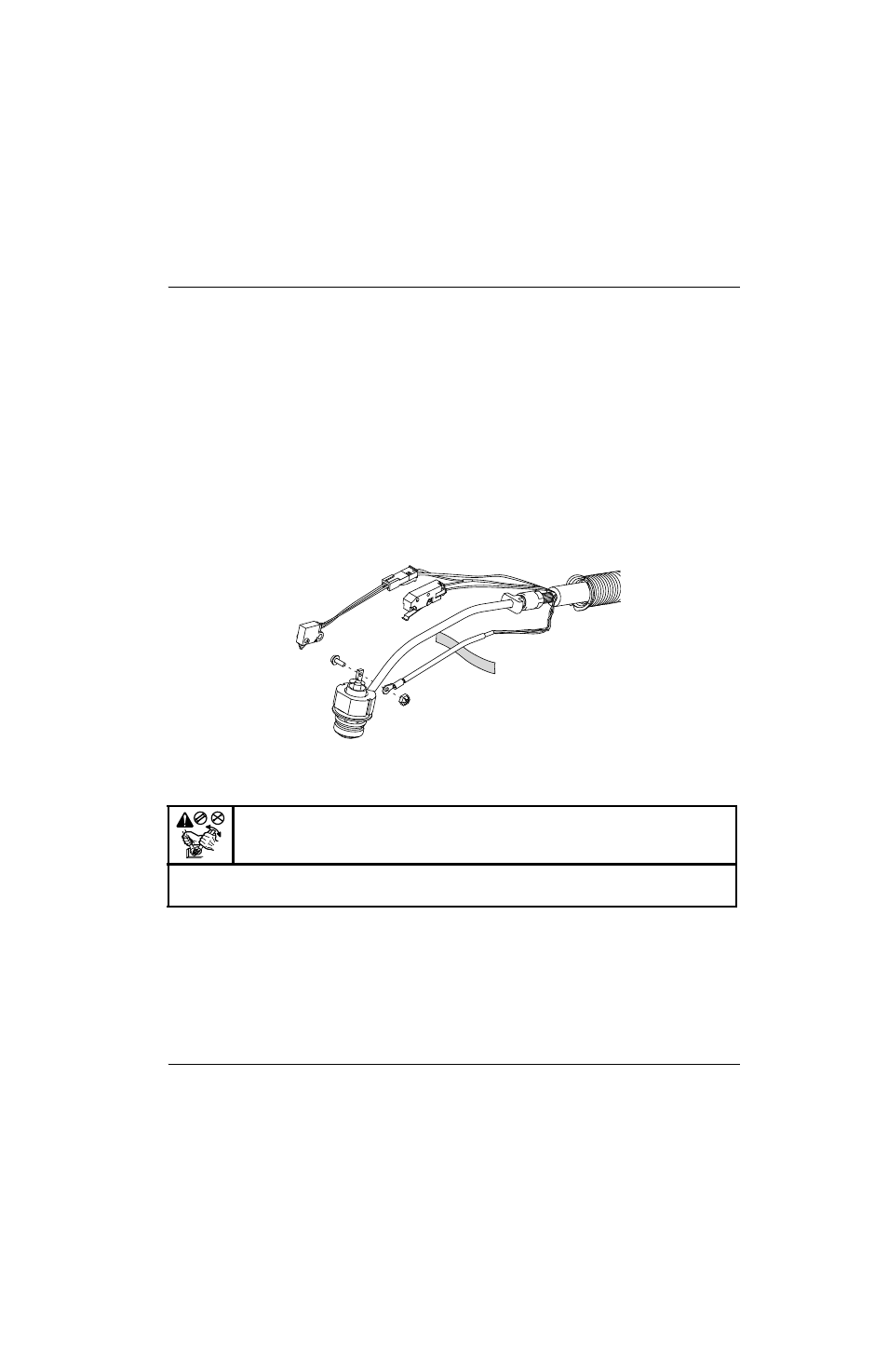

Figure 100
4. Use two wrenches to loosen the gas fitting that attaches the torch body to the torch lead.
Kit Description
428394 Kit: Air T30 torch body (includes O-ring)
CAUTION!
Always use two wrenches to properly loosen and tighten the hex nuts and bolts mentioned in these
procedures.
Peel tape to remove
