170 Powermax30 AIR Service Manual 808850
6 – Power Supply Component Replacement

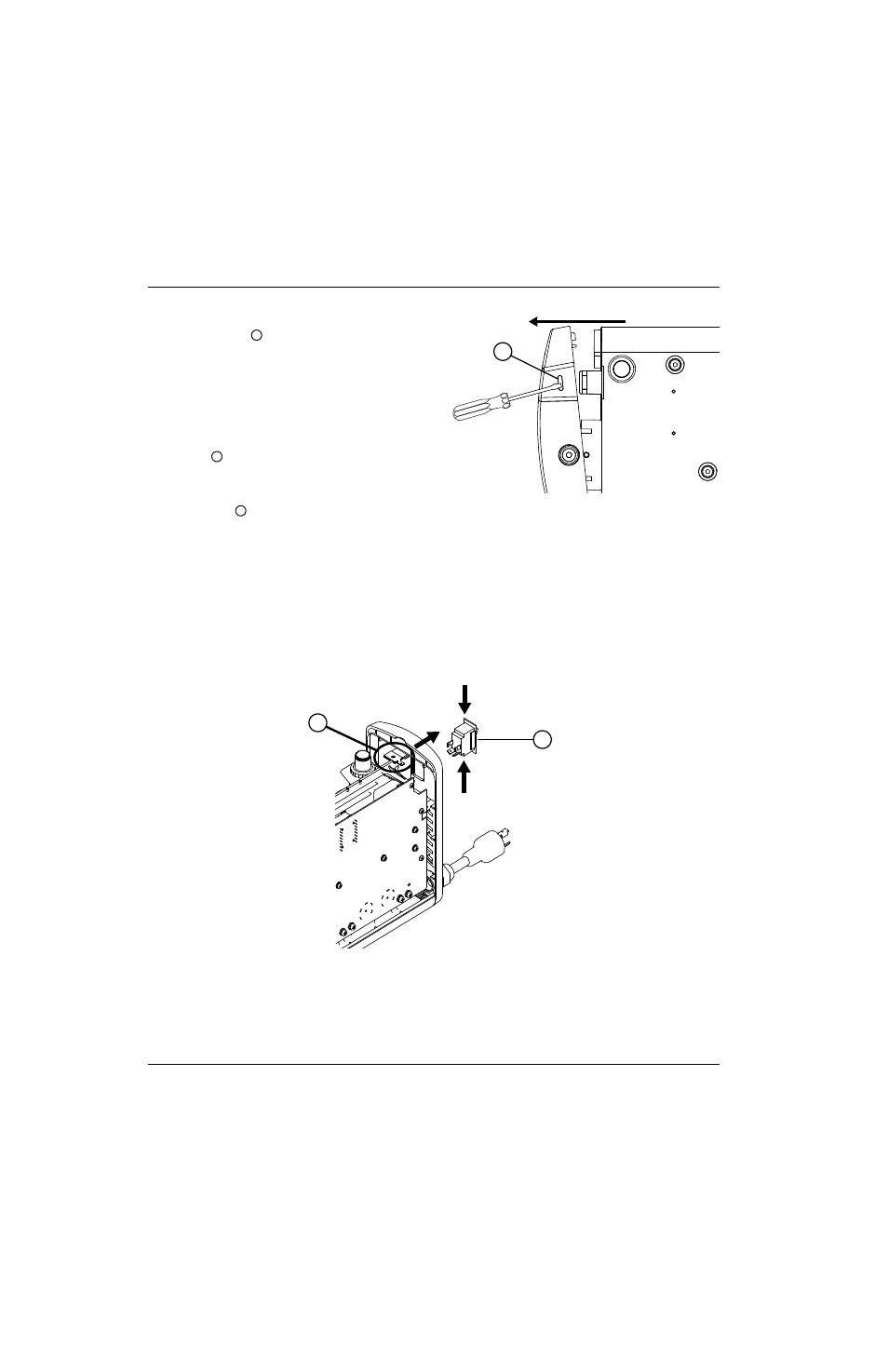

5. Insert a blade screwdriver into the opening for
one of the snaps . While pushing up on the
tab inside the snap, pull the corner of the rear
panel away from the power supply until it
detaches from the base.
6. Repeat the previous step on the other corner
of the panel.
7. Disconnect the ground wire from the ground
wire clip near the top of the rear panel. See
Figure 81.
8. Disconnect the 4 wires from the back of the
power switch .
9. Using a small blade screwdriver, press up one of the tabs on the bottom of the power switch, and push that corner of
the switch out of the rear panel.
10. Press up the other tab on the bottom of the power switch, and push that corner of the switch out of the panel. Make
sure the first tab does not snap back into place as you release the second tab.
11. Repeat the previous two steps on the top of the power switch to push the top of the switch out of the rear panel.
Remove the switch completely from the panel.
Figure 81
12. Disconnect the power cord from the power supply. See Remove the power cord and strain relief on page 107.
3
3
4
5
4
5
