Installation
G&D Dynamic-UserCenter 32 · 7
Step 3: Configuring »Dynamic Ports«
In the default setting, the Dynamic Ports are divided into eight groups. Each group lets
you connect one target module and three matrix switches.

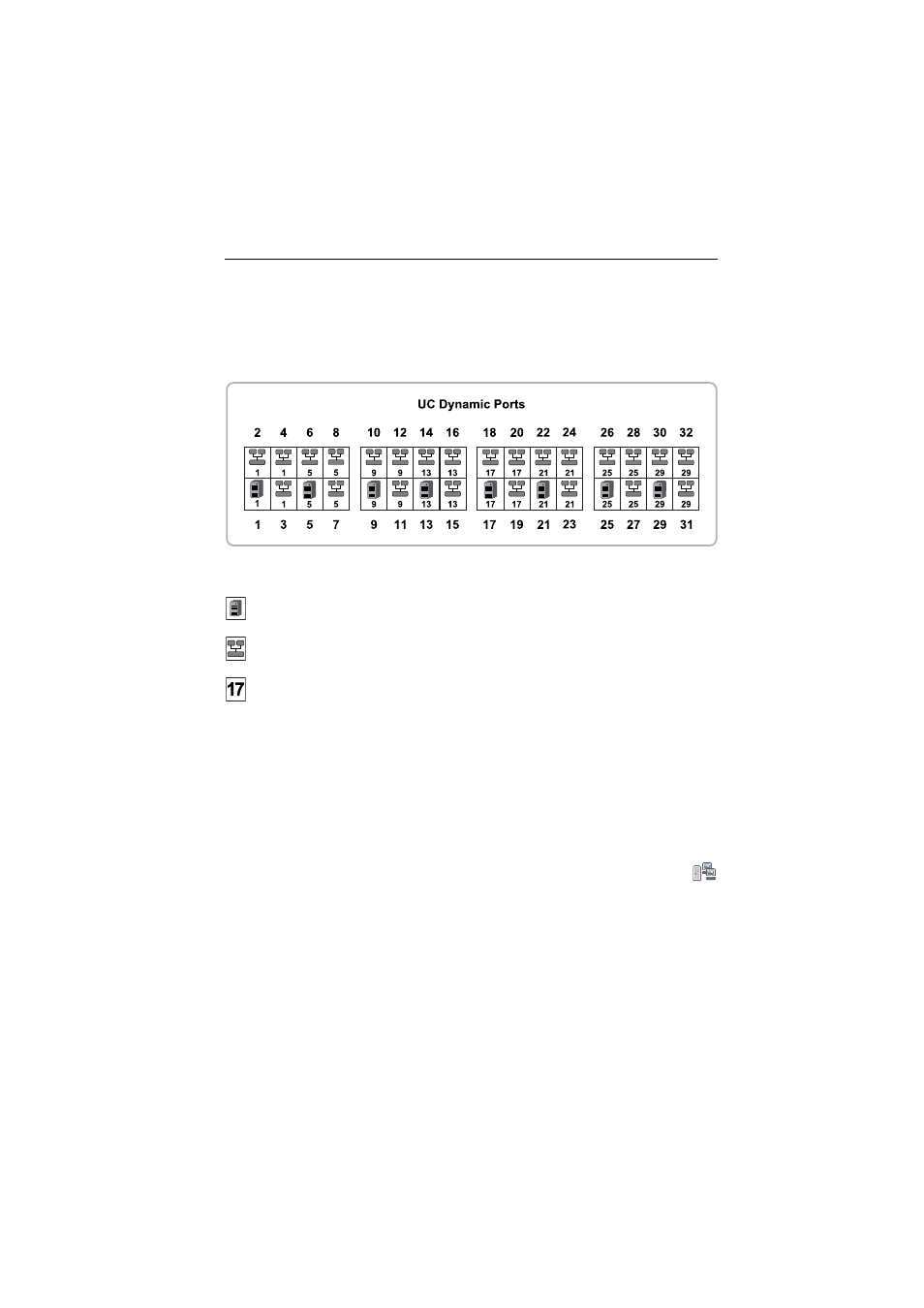

The following screenshot of the Config Panel web application shows the ports’ default
configuration:
The following information are shown for each port:
The computer icon highlights CPU ports.
Connect a target module of the DVI-CPU series to these ports.
The cluster icon highlights Cluster ports.
Connect a matrix switch of the DVICenter series to these ports.
Every assigned port belongs to a group. The group number
is shown below the computer and cluster icons.
The numbers result from the number of the group’s CPU port.
You can group and assign the ports of the Dynamic-UserCenter 32 expansion accord-
ing to your personal preferences. Each group consists of a CPU port to which you can
connect a target module. In addition, you can add at least two Cluster ports to the
group. Connect the matrix switches that can access the target module to these ports.
How to configure »Dynamic Ports«:
1. Start the web application and log in with a user account with Superuser rights.
2. Click the Dynamic Port icon (see figure on the right) in the tool bar of the
web application.
3. The configuration dialogue shows the setting Graph below table (default) in the
toolbar of the web application
You can also choose between the options: Table only , Graph next to table or Graph only.
4. If desired, click on Predefined configurations .
Here, you can choose one of the frequently used configurations ( 1:3 , 1:7 or 1:15 ),
or you can reset the assignment of all ports ( Unassigned ).
