GF-16 Crane System Instruction Manual
Page: 11
Version 3

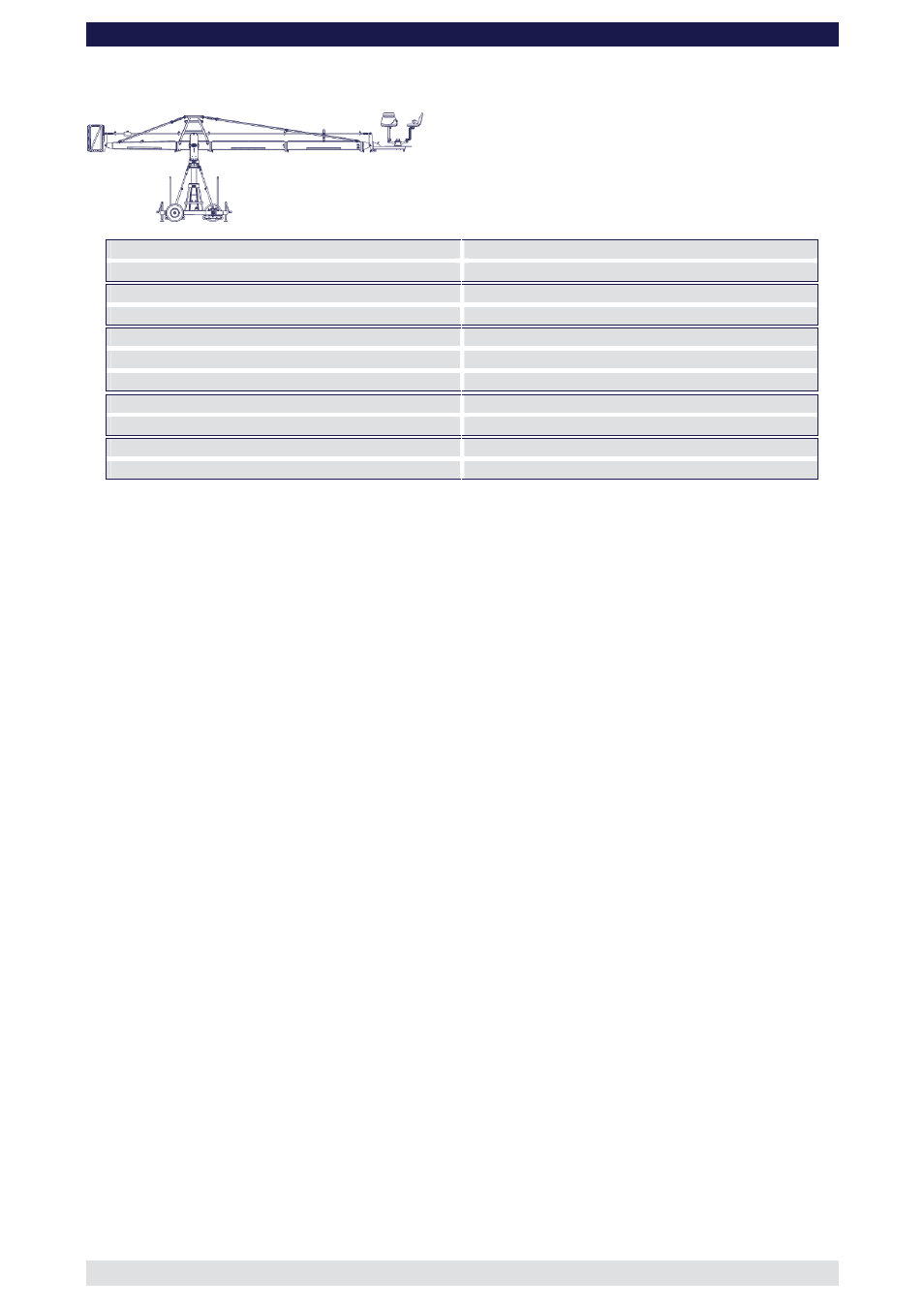

Front extension arms required 2 x 200 cm / 6' 6”
Rear extension arm required 1 x 192 cm / 6' 3”
Lift range 734 cm / 24’
Maximum Euro-adapter height 581 cm / 19’
Lift capacity (working load) 2 pers. + accessories 250 kg / 550 lbs
Counterweight required for max. load 554 kg / 1218 lbs
Counterweight required to balance empty arm 56 kg / 123 lbs
Crane weight (excluding dolly and weights) 730 kg / 1609 lbs
Dolly weight (unit weights see page 46) 244 kg / 536 lbs
Arm reach (pivot to camera head mount) 534 cm / 17’ 6”
Length of rear end (pivot to outside of bucket) 278 cm / 9’ 1”
Continue from § 12, page 6
13. Connect the 200cm / 6’ 6” extension number 2 to extension number 1. Slip the
connection flanges into each other and secure with the provided safety pin.
Note: Section 2 must be supported by a suitable support stand or rostrum.
Tip: To avoid the sections jamming or getting stuck make sure that the sections
are joined parallel. Using a small amount of lubricant also helps. We suggest
rubbing the joints with an oiled rag prior to assembly.
14. Connect a 200cm / 6’ 6” parallelogram rod to the parallelogram connection on the
middle section and secure it with the provided safety pin.
15. Connect another 200cm / 6’ 6” parallelogram rod to the first parallelogram connection
and secure it with the provided safety pin.
Note: Support the second parallelogram rod with the parallelogram support on
section 2 and secure with the locking pin as shown on page 10.
16. Connect the angle adjuster to of the 200cm / 6’ 6” extension number 2. Release the
angle adjuster by removing the safety pins from the side of the angle adjuster. Secure
the angle adjuster to extension number 2 with a removed safety pin.
Tip:
The angle adjuster has two sidewise safety pins. These are either used for
the angle adjusters transport position or to secure the connections between
angle adjuster and extension as well as angle adjuster and platform.
17. Connect the last 200cm / 6’ 6” parallelogram rod to the rod on the angle adjuster and
secure it with the provided safety pin.
Tip:
The angle adjuster has an integrated leveller. By turning it, the vertical plate
on the angle adjuster can be set to a perfect right angle. Correct setting of
the angle adjuster enhances the crane’s balance.
The “Rigging Harness Assembly” is described on page 9. After reading and
following the instructions, please proceed as follows.
18. Connect 2 turnbuckles to the top connection on the front side of the rigging harness.
Ensure that the locking pins are inserted fully.
19. Connect 2 standard rigging rods to the turnbuckles on the front side of the rigging
harness. Ensure that the locking pins are inserted fully.
