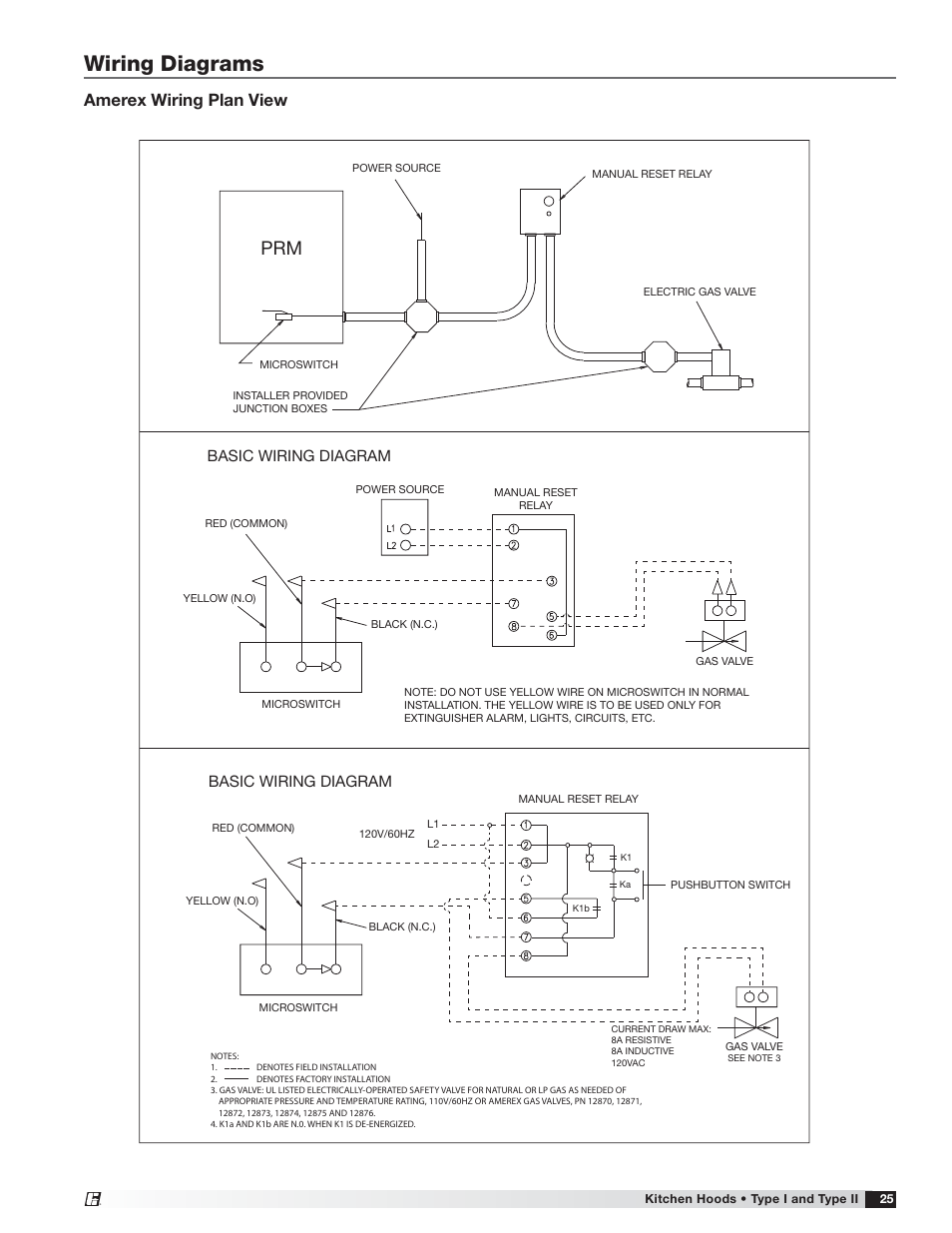

Wiring diagrams, Amerex wiring plan view, Basic wiring diagram – Greenheck Canopy Hoods (452413 IOM) User Manual
Page 25
