Field Wiring

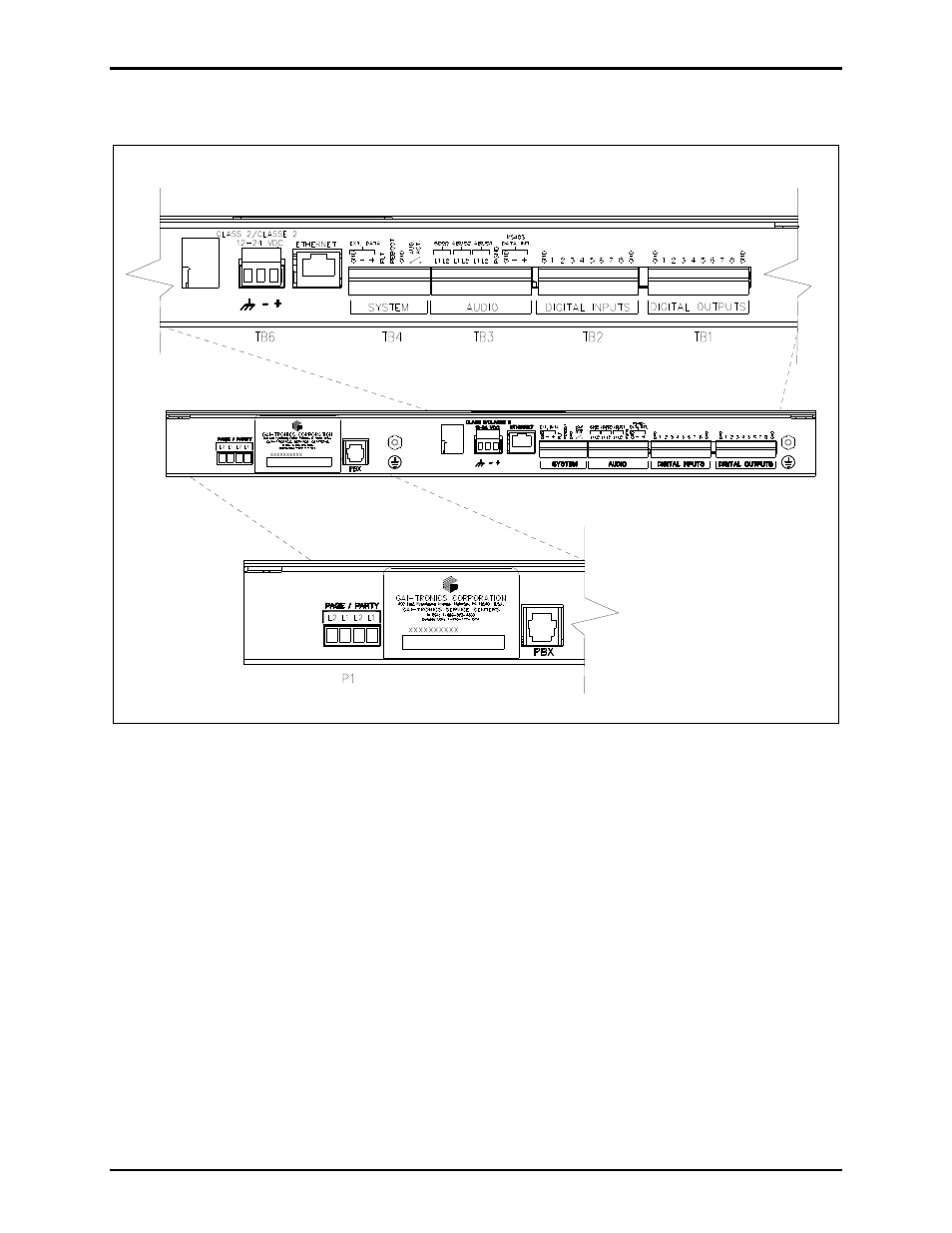

Figure 3. Back of rack with connections labeled
Audio Output Connections
Terminal block TB3, labeled AUDIO , is located on the Termination PCBA. It provides connections for a
600-ohm balanced audio output designed for connection to an amplified speaker system. Shielded pair
conductors are recommended when connecting audio to any public address system component.
