GAI-Tronics 12584-002 I/O Control Module - Manual (Page 13)

Pub. 42004-388B
Model 12584-002 I/O Control Module Page: 13 of 15
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-388b.doc
04/07
Table 14. TB8 Terminal Block Assignments
Terminal Labeled Function Specification
TB8-1 I N -25 Input 25
TB8-2 I N -26 Input 26
TB8-3 I N -27 Input 27
TB8-4 I N -28 Input 28
TB8-5 I N -29 Input 29
TB8-6 I N -30 Input 30
TB8-7 I N -31 Input 31
TB8-8 I N -32 Input 32
• Short input terminal to GND if using a Normally Open
activation switch.
• Remove input terminal from GND if using a Normally
Closed activation switch.
TB8-9
through
TB8-16 GND Ground Ground reference for input 25-32 terminals
TB4- Power Connections
The I/O Control Module requires a dc power supply. The dc power supply voltage must be between 12
and 24 V dc. TB4 is used for power connections. Please refer to the TB4 terminal block assignment
chart and Figure 6 below.

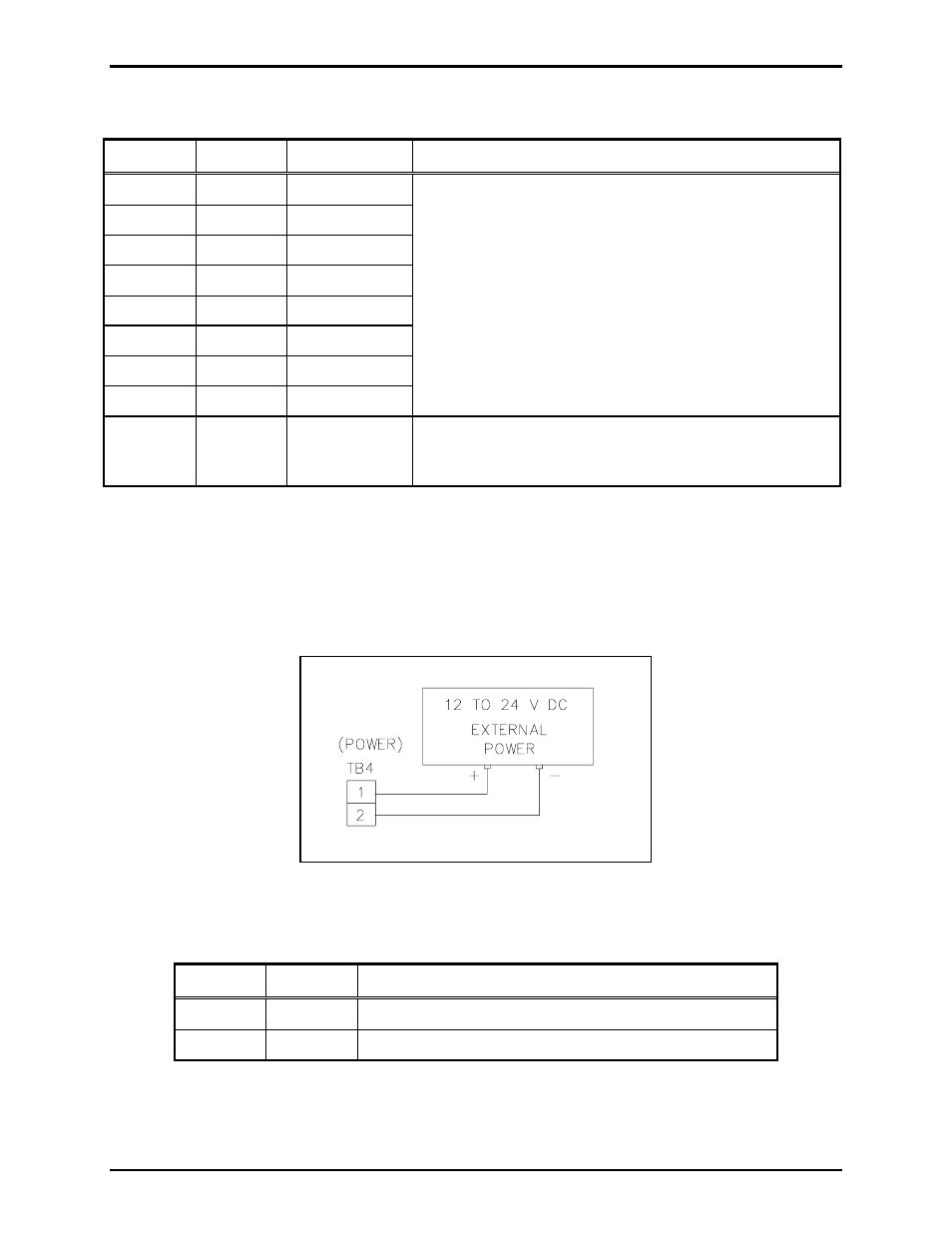

Figure 6. Power connections at TB4
Table 15. TB4 Terminal Block Assignments
Terminal Labeled Function
TB4-1 + Power (+) 12 to 24 V dc power supply positive terminal
TB4-2 - Power (-) 12 to 24 V dc power supply negative terminal
