9
IR and RS-232 Operation
IR Control
The IR pass-through feature on the Transmitter and Receiver allows you to
control the Source from the Display’s location or vice versa.

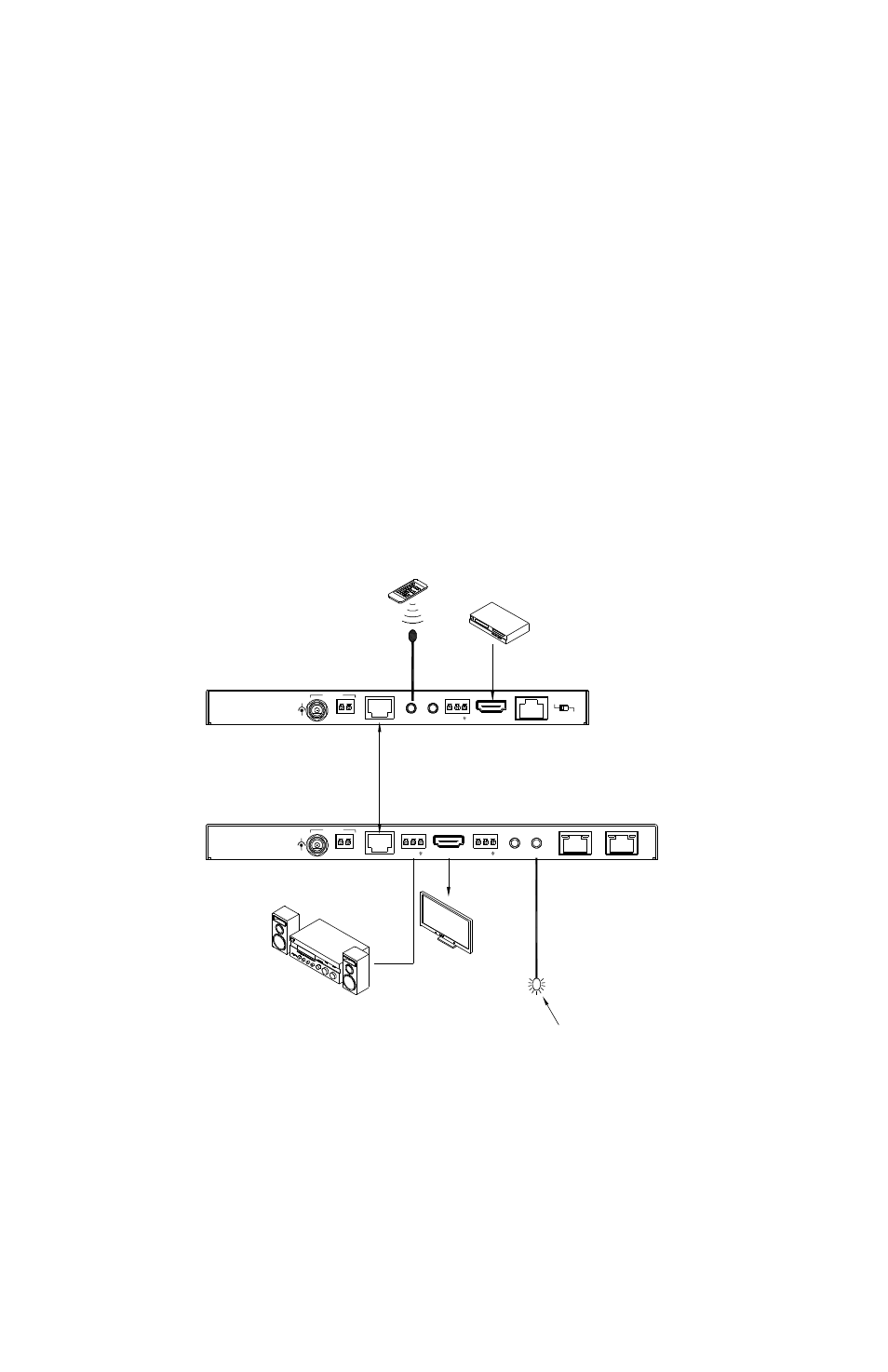

Scenario 1
The TV can be controlled from the Transmitter’s location with the TV remote.
The IR receiver is connected to the IR IN on the Transmitter and the IR emitter is
connected to the IR OUT on the Receiver.
The HD-H-SP-Tx Transmitter is shown in the illustrations throughout this manual. Please
note that any of the FSR 100m HD transmitters may be used with the HD-HAUD-SP-Rx
Receiver.
HD-HAUD-SP-Rx
HD-H-SP-Tx
HDBaseT
BLUE-RAY
DVD
TV
IR RECEIVER
CABLE
TV REMOTE
IR EMITT ER
CABLE
NORMAL
UPDATE
HDMI IN T xRx IR OUT IRIN +
-
DC 12V
- + RJ
+
-
DC 12V
- + Tx Rx I R OUT IR IN LOCAL OUT R L
AUDIO AMP
