13
Chapter 2 Installation Instructions

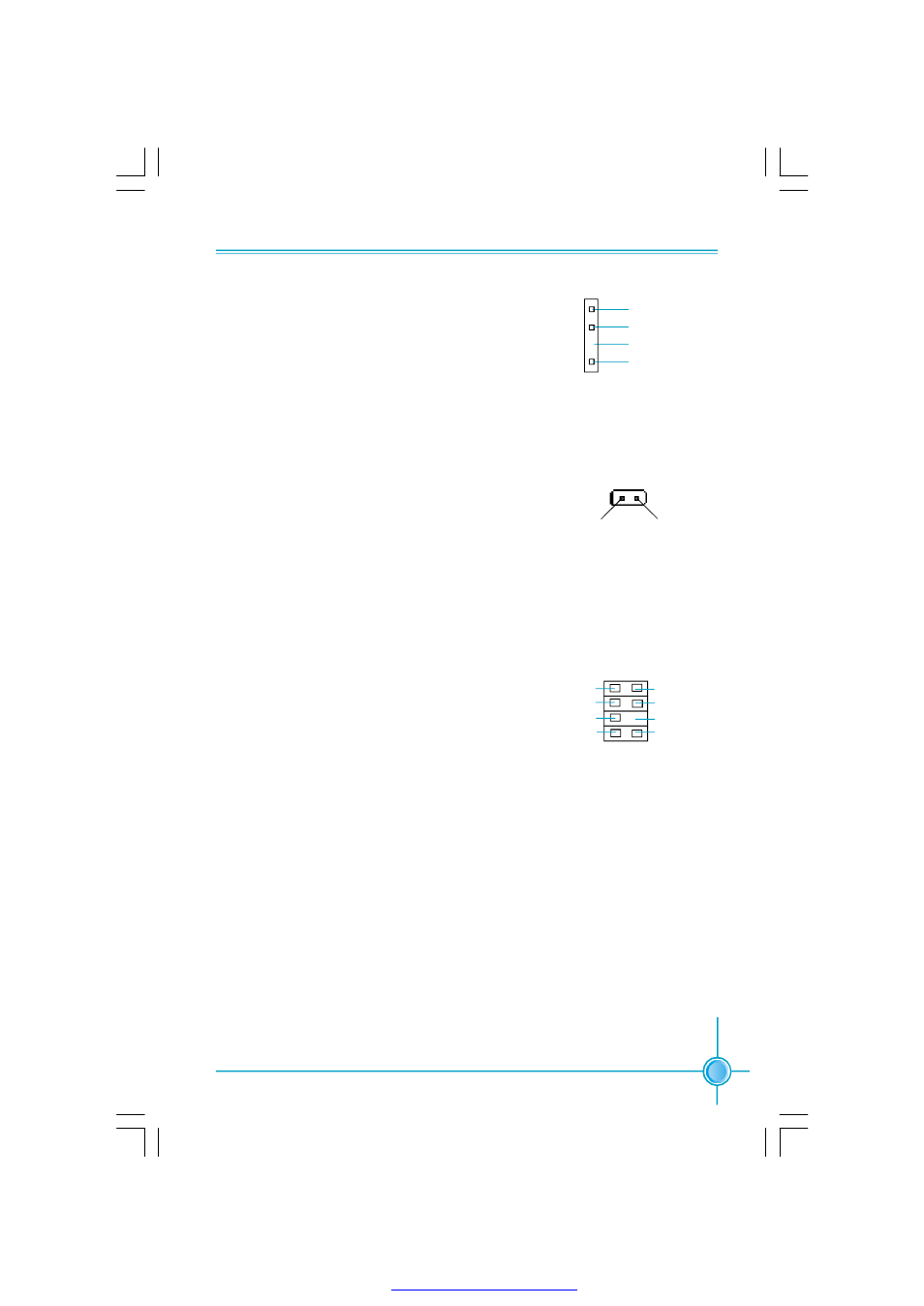

S/PDIF Out Connector: SPDIF_OUT
The S/PDIF out connector is capable of provid-
ing digital audio to external speakers or com-
pressed AC3 data to an external Dolby digital
decoder.
SPDIF_OUT
1
S PD I F _O UT
5V_SYS
GND
Empty
INTR
1 INTRUDERJ 2 GND
SPI
7 8
1 2
3D3V_SYS
SPI_HOLDJ
ICH_SPI_CLK
ICH_SPI_MOSI
ICH_SPI_CSJ
ICH_SPI_MISO
Key
GND
Chassis Intruder Connecter: INTR
The connecter connects to the chassis secu-
rity switch on the case.The system can detect
the chassis intrusion through the status of this
connector.if the connector has been closed
once,the system will send a message. To uti-
lize this function, set “Case Open Warning”to
“ E n a b le d ” in t h e “ P o w e r M a n a g e m e n t
Setup”section of the CMOS Setup.Save and
exit,then boot the operating system once to
make sure this function takes effect.
SPI Connector: SPI (optional)
This motherboard provides a SPI connector,
which is used to refresh the SPI BIOS. Con-
nect one side of a cable to the connector, then
attach the BIOS Flash Card to the other side of
the cable.
