Chapter 1 Product Introduction
Line in, Line out, Microphone (for 2/6-channel models)
When using a 2-channel sound source,the Line-out jack is used to connect to
peaker or headphone; the Line-in jack connects to an external CD player, tape
player or other audio device. The Microphone jack is used to connect to the
microphone.
When using a 6-channel sound source, connect the front speaker to the
green audio output; connect the surround speaker to the blue audio output;
connect the center speaker/subwoofer to the red Microphone output.
Line in, Line out, Microphone,rear,CEN/LFE,Side Jacks (for 8-channel
models)
When using an 8-channel sound source,connect the front speaker to the
green audio output;connect the rear speaker to the black audio output;
connect the center/subwoofer to the orange audio output;connect the side
speaker to the grey audio output.

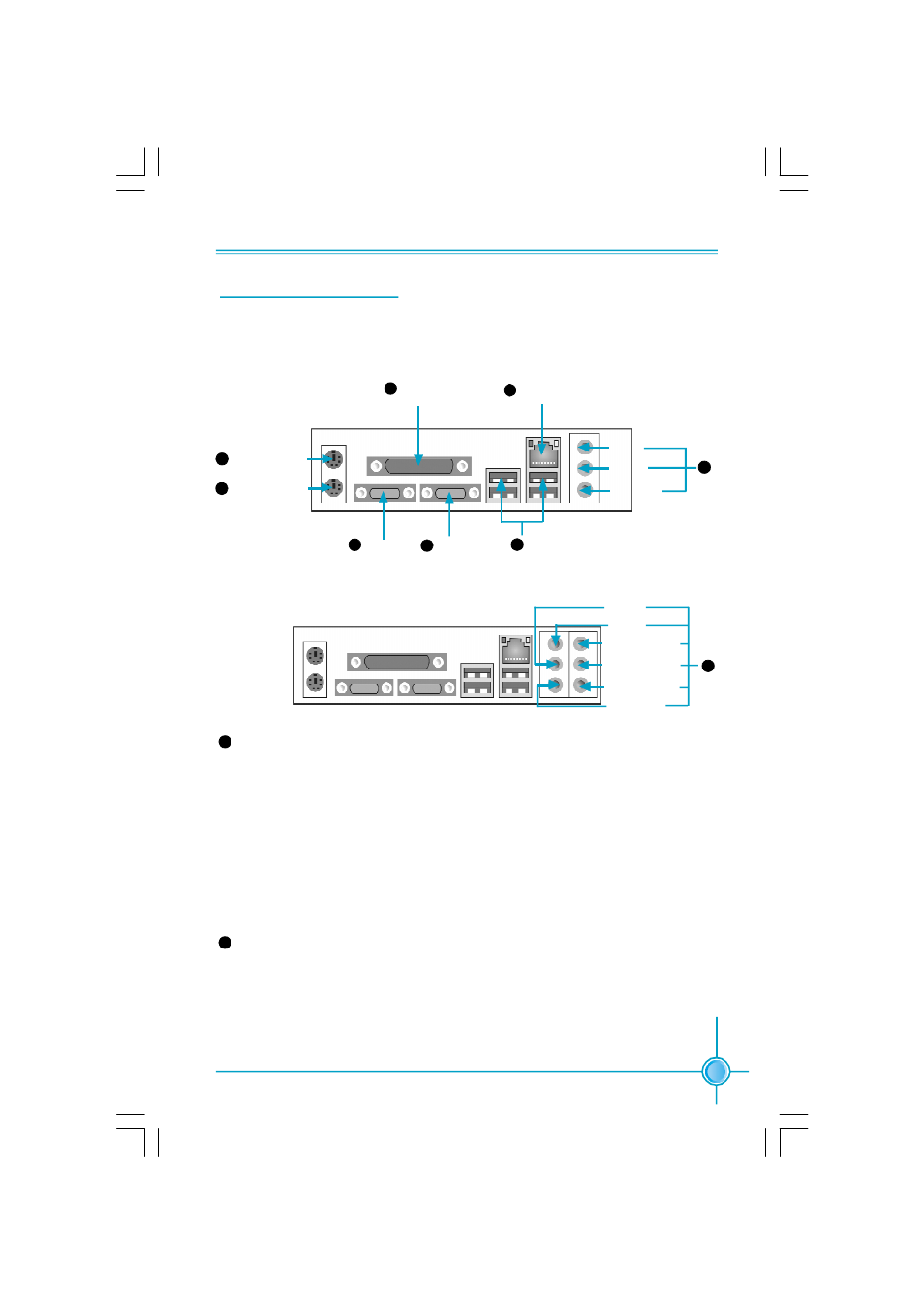

Rear Panel Connectors
This motherboard provides the following ports as below:
-6 models (optional)
Serial Port
(COM1)
USB 2.0 Ports
PS/2 Mouse Port 1
2
3 6
PS/2 Keyboard Port
VGA Connector
7
5
Line-in
Line-out
Microphone
4 Parallel Port
(Printer Port)
LAN Port 8
Line-out
-8 models (optional)
9
Microphone
CEN/LFE
Rear Sperker Out
Side Sperker Out
Line-in
9
7
