Chapter 2 Installation Instructions
12

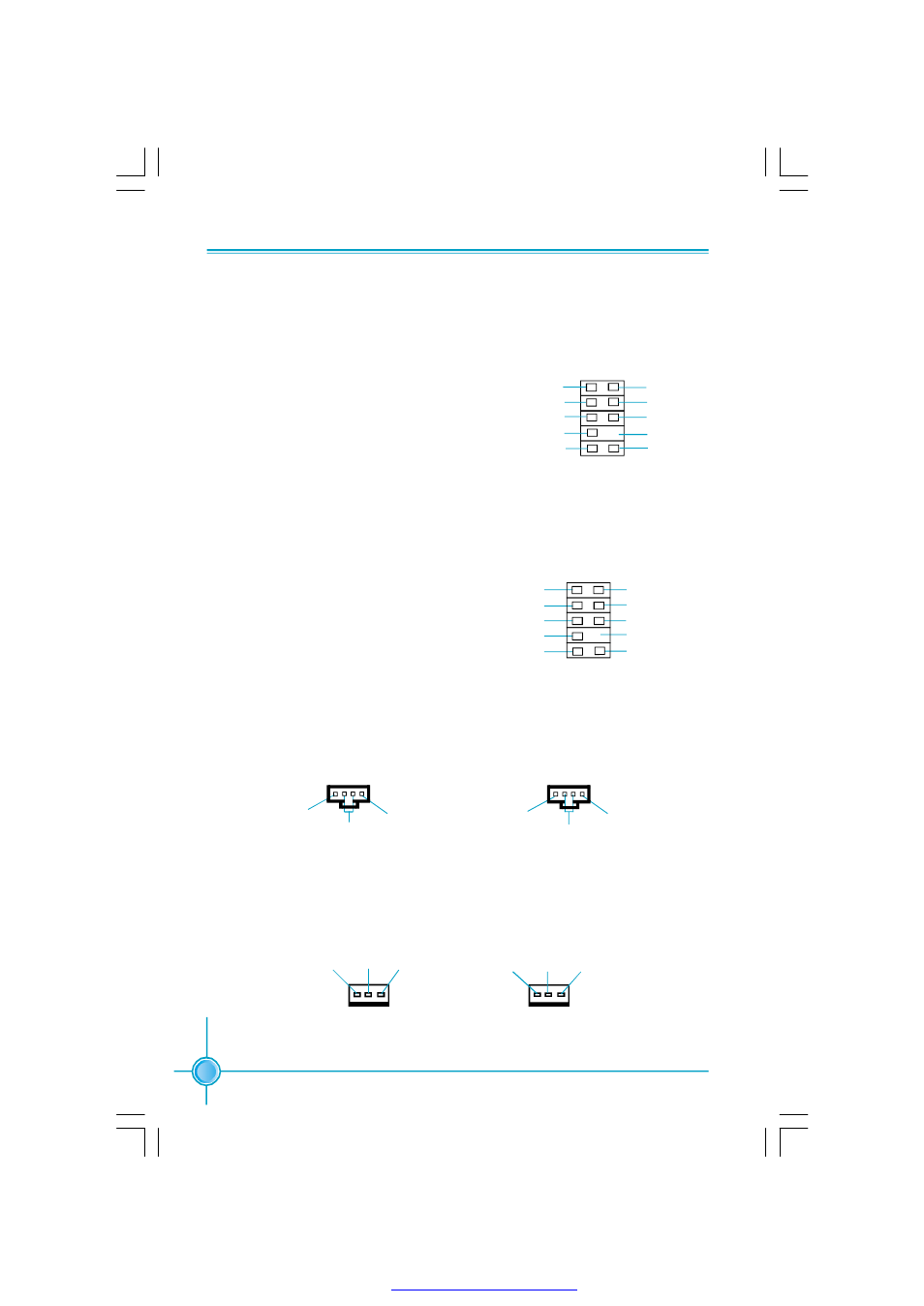

Fan Connectors: CPU_FAN, SYS_FAN1
There are two fan headers on this motherboard. These fans will be automati-
cally turned off after the system enters suspend mode.
Audio Connectors: CD_IN, AUX_IN (Optional)
CD_IN, AUX_IN is Sony standard CD audio connector. It can be connected to a
CD-ROM drive through a CD audio cable.
Audio Interface: F_AUDIO
-6 channel (optional)
The audio interface provides two kinds of
audio output choices: the Front Audio, the
Rear Audio. Their priority is sequenced from
high to low (Front Audio to Rear Audio). If
headphones are plugged into the front panel
of the chassis (using the Front Audio), then
the Line-out (Rear Audio) on the rear panel
will not work. If you do not want to use the
Front Audio, pin 5 and 6, pin 9 and 10 must
be short, and then the signal will be sent to
the rear audio port.
F_AUDIO
MIC_GND MIC
+5VAC MIC_PW R
AUT_RET_R AUD_OUT_R
EMPTY
AUD_OUT_L AUT_RET_L
1 2
9 10
NC
CPU_FAN
+12V SENSE GND
1
+12V SENSE GND
1
SYS_FAN1
SENSE_SEND
F_AUDIO
PORT2_L
PORT1_L
PORT1_R
AUD_GND
PRESENCEJ
PORT2_R SENSE1_RETURN
Empty
SENSE2_RETURN
1 2
9 10
-8 channel (optional)
The audio connector provide two kinds of
audio output choices:the front Audio,the
Rear Audio.Front Audio suppports re-task-
ing founction, Their priority is the same.
CD_IN
CD_R
GND
CD_L
AUX_IN
1
AUX_L
GND
AUX_R
1
