2002 Dimension One Spas Export Owner’s Manual

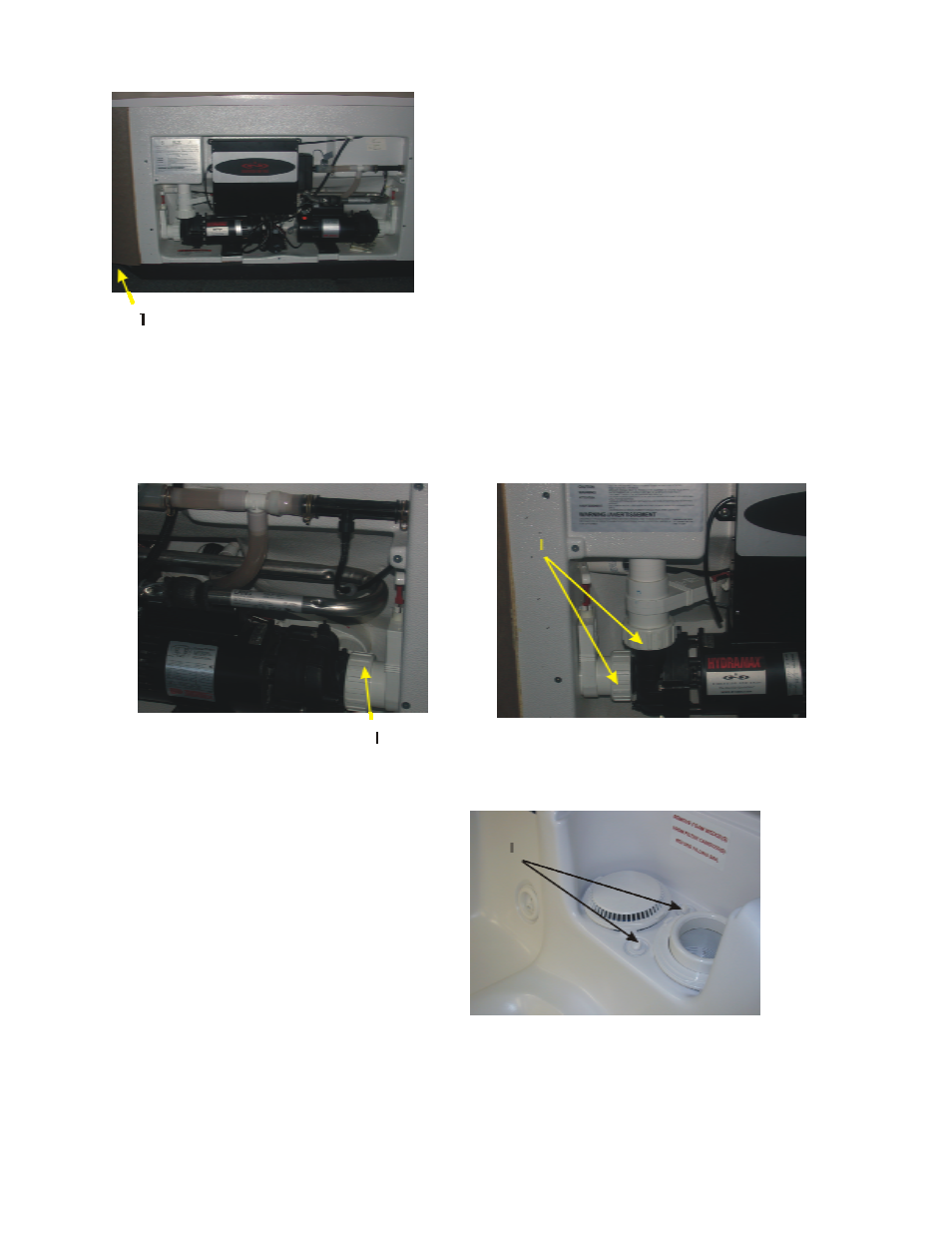

1. Location of Male Hose Fitting
Figure 9 Male Hose Fitting
4. Screw the hose bib onto the male fitting located
at the bottom of the hot tub on the pedestal,
Figure 9, to the lower left of the equipment
compartment.
5. Close the valve on the side of the hose bib and screw the cap onto the end of the hose bib.
6. Check the pump unions, Figures 10 and 11, to be sure that they are tight to prevent the possibility of
leakage in the equipment compartment.
1. Typical Location of Pump Union
Figure 10. Typical Location of Pump Union
1. Typical Location of Pump Unions
Figure 11. Typical Location of Pump Unions
7. Also, open the bleeder valve(s) located next
to the sidewall of the skimmer area, Figure
12, to allow air to escape from the pump(s).
1. Bleeder Valves
Figure 12. Bleeder Valves
22
