8.2.5.3.3 Modbus FC 05/15 Force Coils

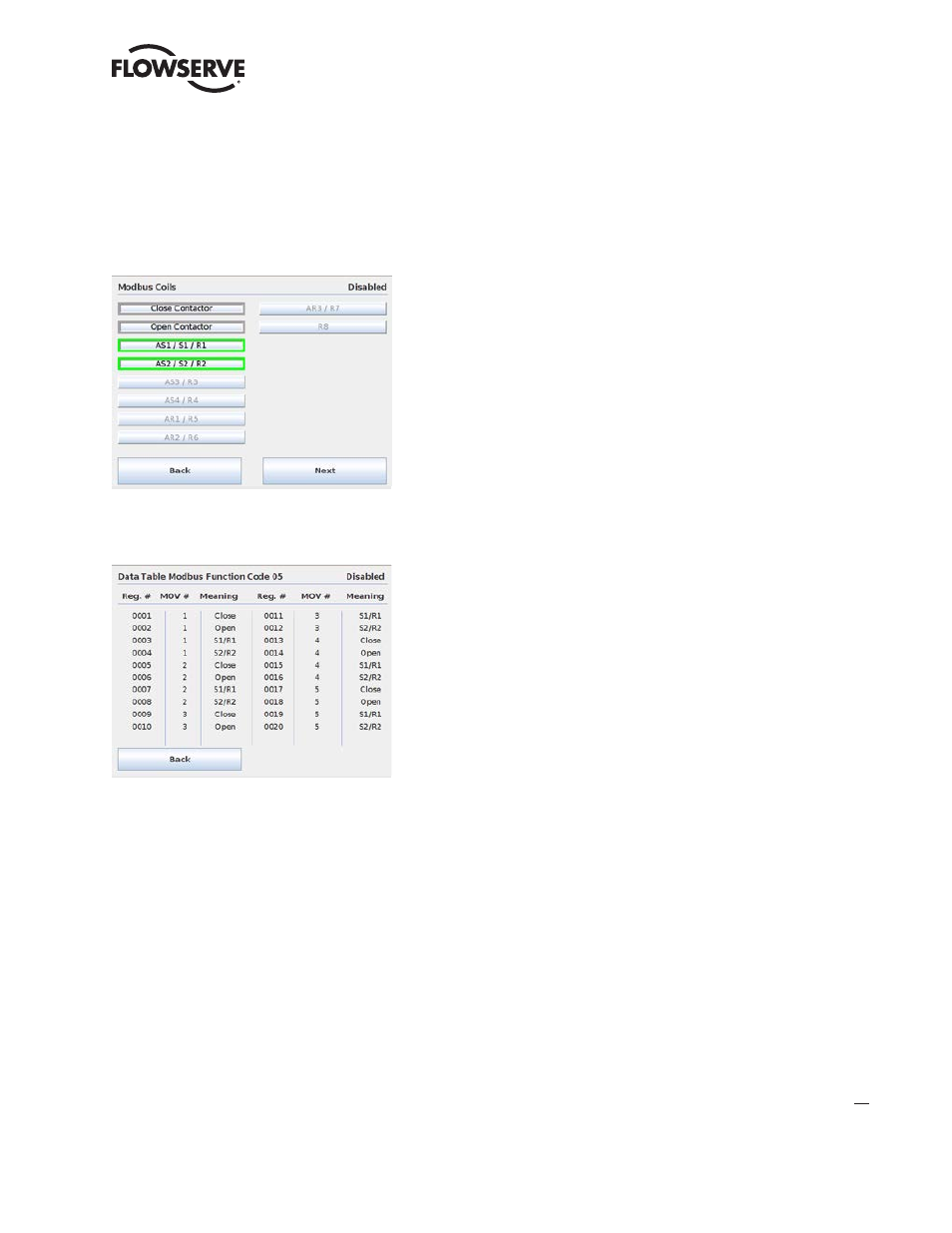

Touching the “Modbus FC 05/15 Force Coils” button will take the user to the Modbus Coils screen
(Figure 8.26) for selection of desired field unit coils. Note that the Close and Open Contactor coils are
always included in the data table.
Figure 8.26 - Modbus Coils
Selecting the “Next” button will advance the screen to the sample data table screen shown below:
Figure 8.27 - FC-05/15 Sample Data Table
NOTE: Table shown with Open and Close Contactors, S1/R1 and S2/R2 Coils selected.
