Flowserve Limitorque Master Station III - Manual (Page 33)

33
Limitorque Master Station III FCD LMENIM5001-02 – 12/13
flowserve.com

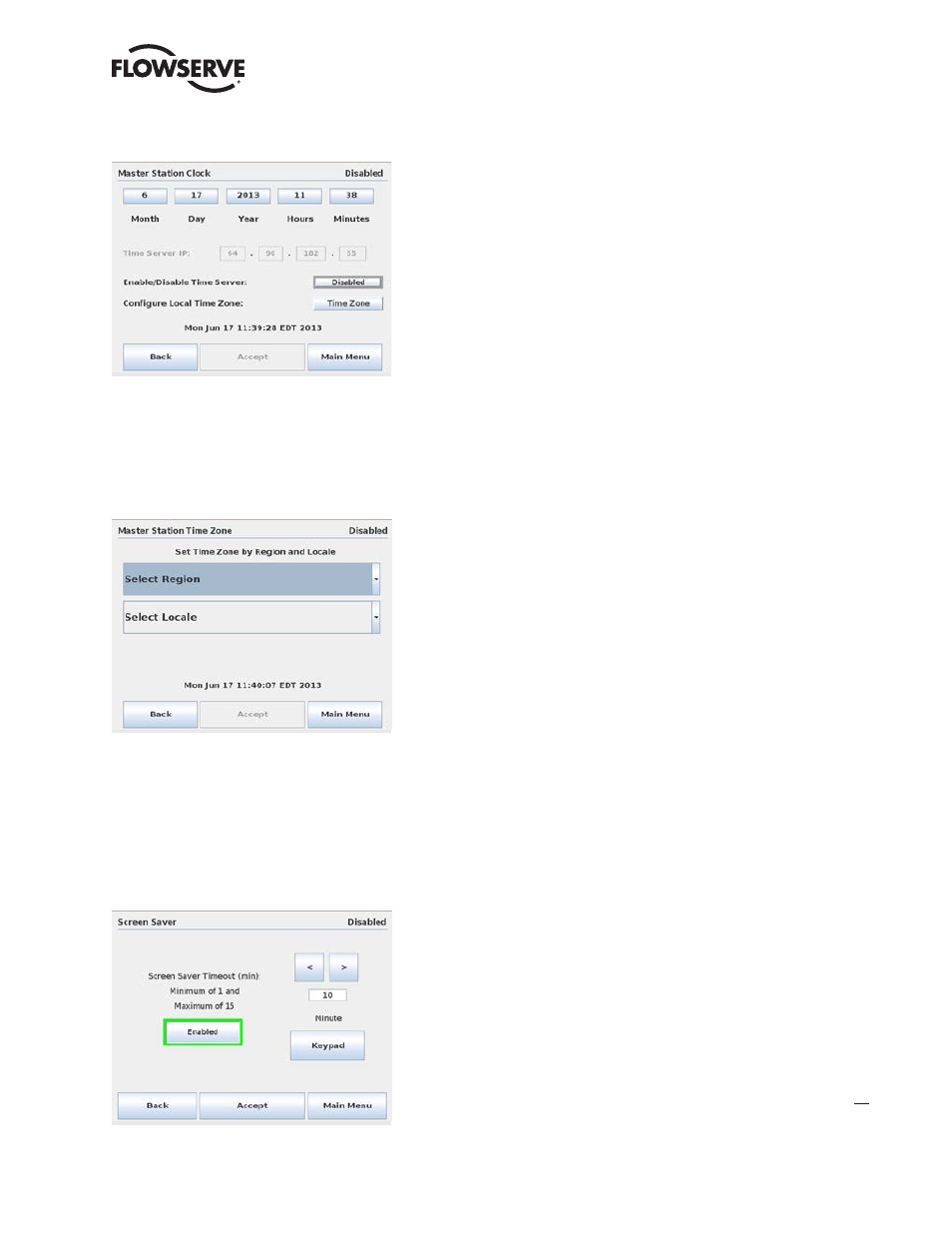

Figure 8.6 - Clock
Additionally, the Master Station Clock can be set to the correct local time zone by selecting the Time
Zone button in the Clock screen. The time zone is configured by selecting the region and locale in
which the Master Station is located.
Figure 8.7 - Time Zone
8.2.1.4 Screen Saver
The Screen Saver menu (Figure 8.8) allows the user to set the unit’s screen saver parameters. The
screen saver can be set to activate between one minute and 15 minutes after the last screen use.
Alternatively, the screen saver can be disabled entirely.
Figure 8.8 - Screen Saver
