REV 2 - 1502191555 L-C2-387 7
SPECIFICATIONS AND DIMENSIONS (cont.)
The following are the minimum tools required for the installation of your vent hood components. Additional tools
may be required for your individual installation.
• Proper personal safety equipment
• Appropriate tools for electrical install
• Power drill
• Drill bit - Phillips head
• Medium Philips screwdriver
• 3 / 8 " nut driver
• 1 /
4
" nut driver or 1 /
4
" hex driver (drill bit)
• Measuring tape
• Level
• Duct tape
• Silicone sealant
TOOLS REQUIRED

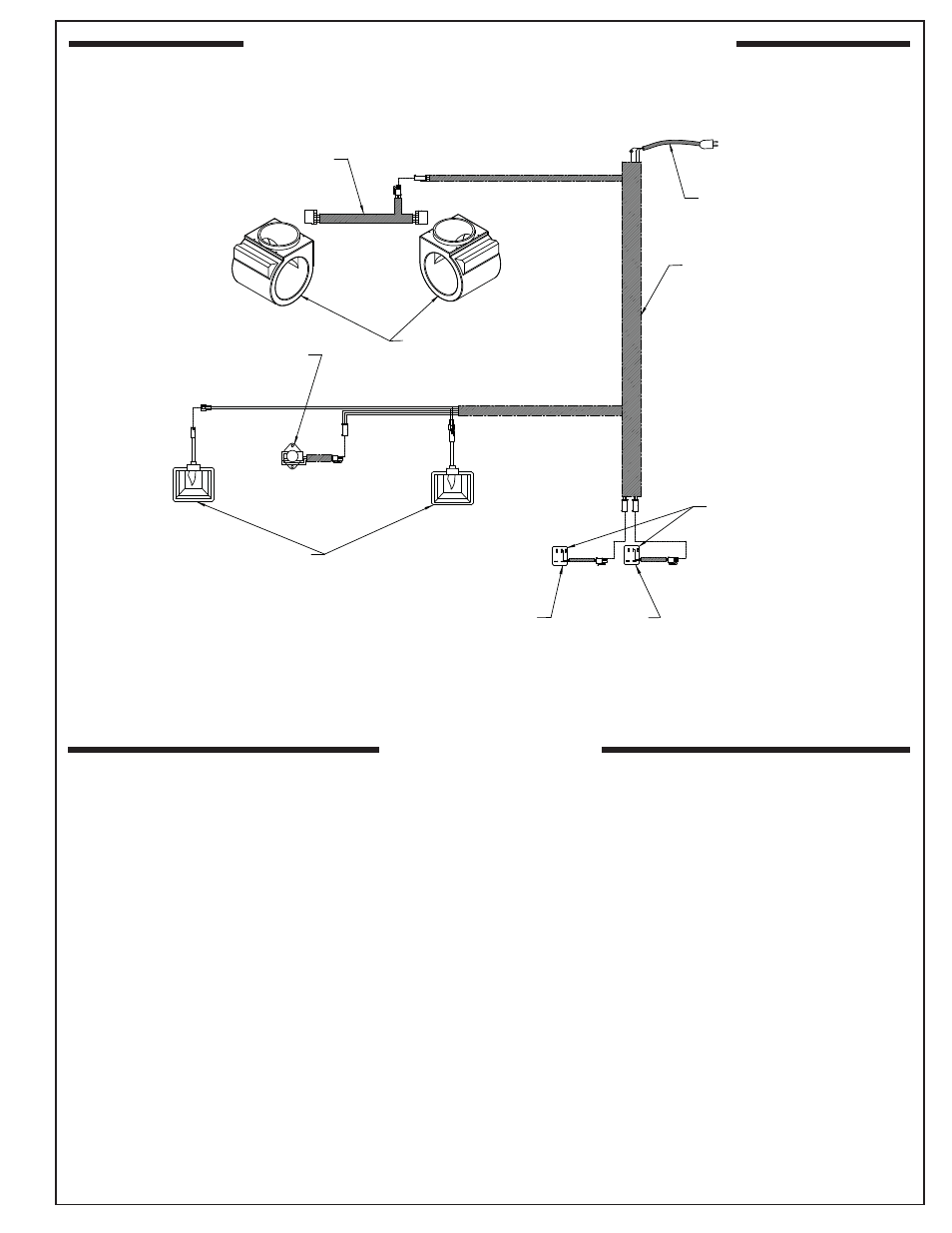

WIRING DIAGRAM
Power cord
Wire harness,
main vent hood
3-position
rotary switch
Light
switch Fan
switch
Light Assy
120V 50 Watt
Thermostat Snap
Disc Assy
Blower Motor
600 CFM
Wire harness,
blower vent hood
