Fire Magic 36-VH Vent Hood - Manual (Page 18)

REV 2 - 1502191555 L-C2-387 18
ELECTRICAL
A 120VAC (15 AMP minimum) GFCI GROUNDED 3-wire
receptacle (not included) is required within the vicinity of the
vent hood to provide power to the unit. The area above the
vent hood that the soffi t / duct cover will enclose is an ideal
location (reference Fig 18-1). Your individual installation
may vary. Observe all local codes.
1. Wire the receptacle above the top right of the unit (see
Fig 18-1).
• Verify proper polarity of the receptacle.
• If an extension cord is used, ensure it is a
3-wire GROUNDED cord. DO NOT use 2-prong
adapters.
• DO NOT TAMPER WITH THE EXTENSION CORD
OR THE INSERT POWER-SUPPLY CORD.
2. Connect the power cord coming from the top right
of the unit to the previously wired 120VAC (15 AMP
minimum) GFCI GROUNDED 3-wire receptacle (see
Fig. 18-1 and Fig. 18-2).
Note: The power cord must be plugged in when operating
the vent hood.
WARNING: Electrical Grounding Instructions - This
appliance is equipped with a three-prong
(grounding) plug for your protection
against shock hazard and should be
plugged directly into a properly grounded
three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
INSTALLATION (cont.)

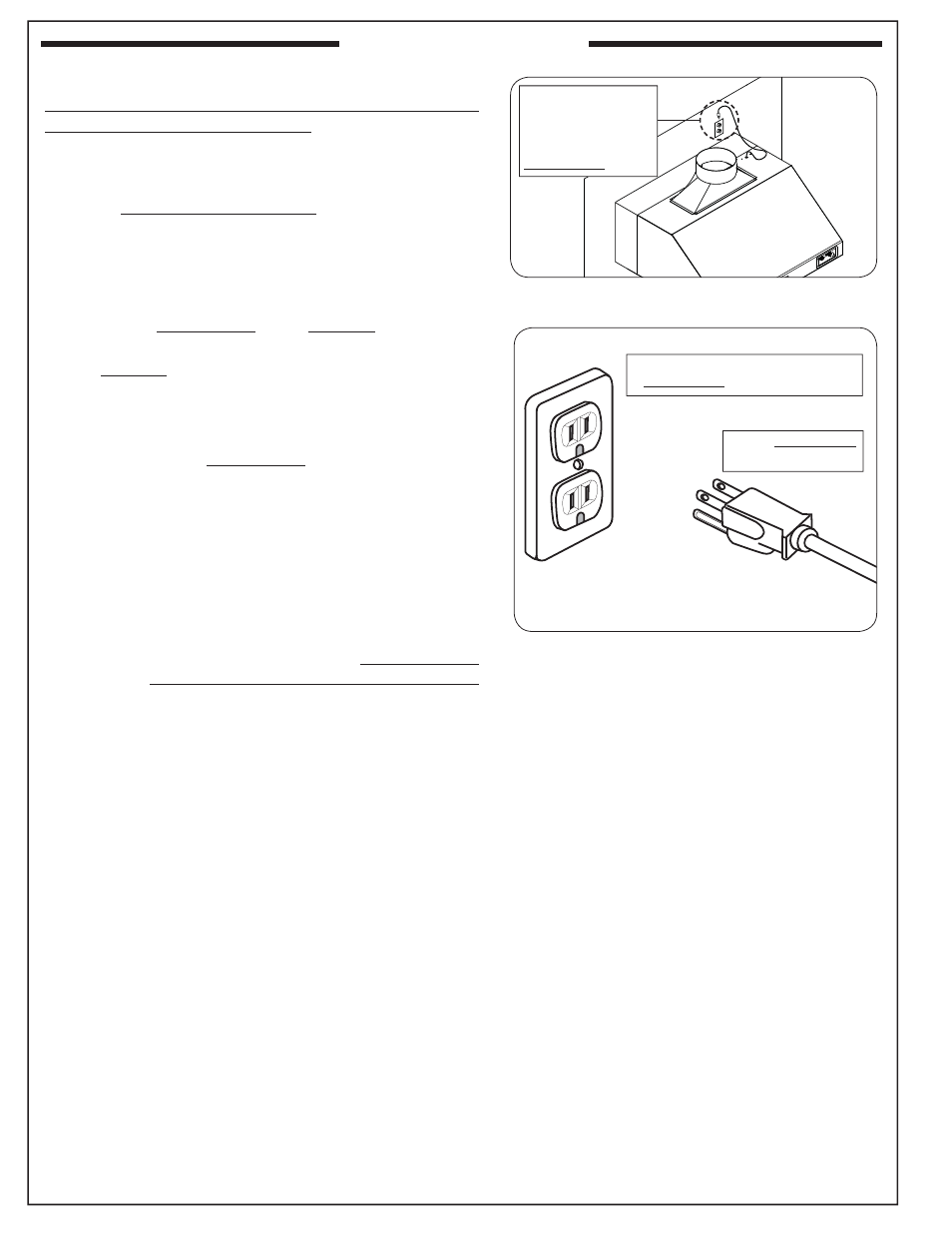

Fig. 18-1 Install receptacle & connect power cord
(vent piping
not shown
for clarity)
3-wire GROUNDED
cord from unit
120VAC (15 AMP minimum) GFCI
GROUNDED 3-wire receptacle
Fig. 18-2 Electrical setup detail
Receptacle
MUST be:
120VAC (15 AMP
minimum) GFCI
GROUNDED 3-wire
