REV 2 - 1502191555 L-C2-387 17

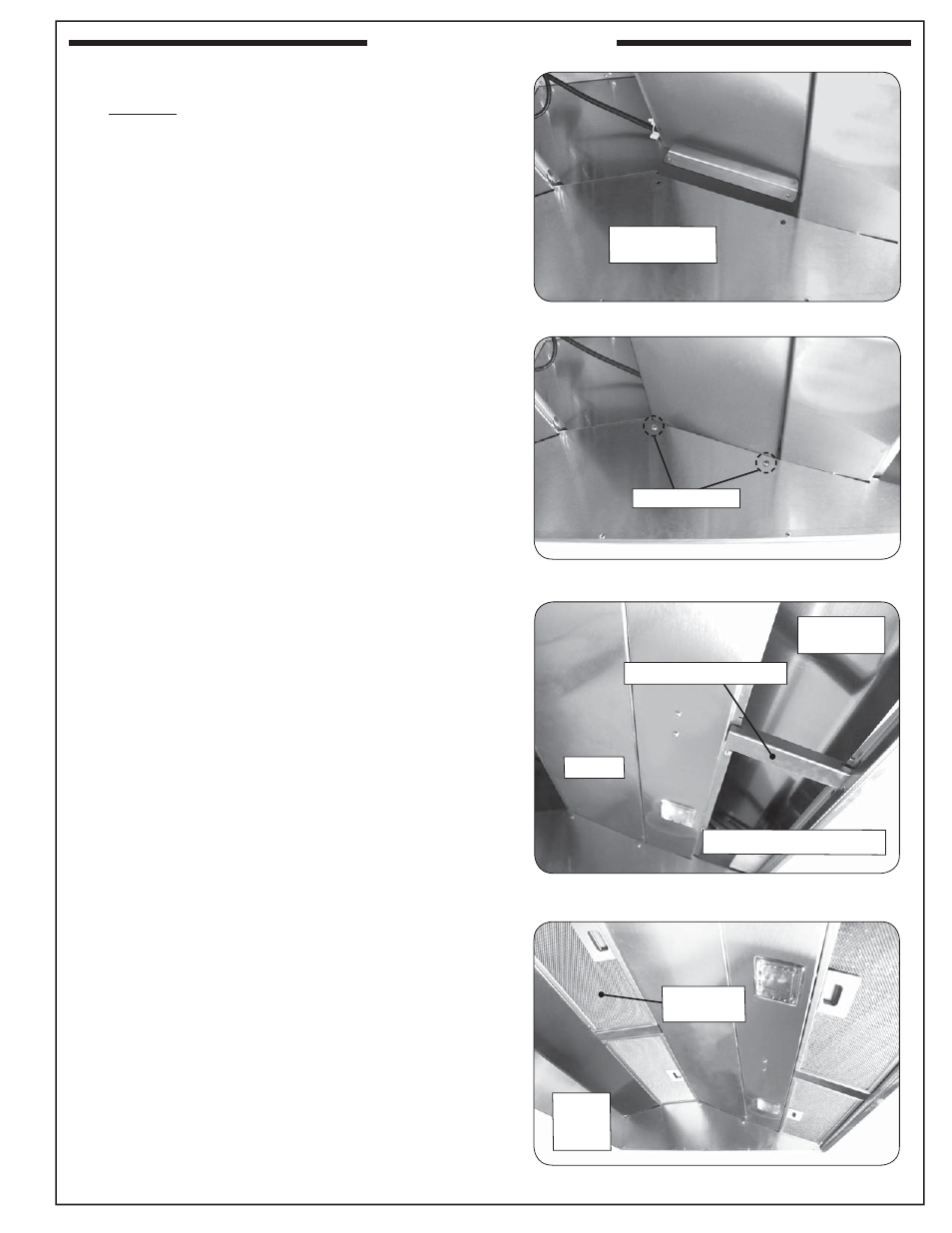

Fig. 17-3 Install fi lter spacer (if applicable)
(Front of
vent hood)
Filter spacer installed
Fig. 17-4 Install fi lters
(Baffl e)
42" models only
Fig. 17-1 Align baffl e
Align baffl e to
screw holes
Fig. 17-2 Secure baffl e
Fasten screws
42"
model
shown
Filter
installed
BAFFLE
1. Carefully raise the baffl e up into the vent hood. You will
fi rst need to slide one side in at a slight angle, until the
baffl e edge aligns above the inner wall (see Fig. 17-1).
Then raise the opposite side of the baffl e until it also
aligns. Drop the baffl e into place.
2. Align the 4 screw holes (2 on each side), then secure
the baffl e in place using a medium Phillips screwdriver
and the supplied 8-32 x 3/8" screws (that were originally
removed at beginning of installation). See Fig. 17-2.
Important: To prevent cross-threading the screws they
should be installed with a manual screwdriver
and a small amount of household grease.
GREASE FILTERS
1. Install the fi lter spacer (if applicable, 42" models only).
See Fig. 17-3. Repeat for other side.
2. Install a fi lter into the vent hood by fi rst pressing in the
lever, then aligning the tabs found on the fi lter into the
notches found in the interior of the hood. The fi lters
will secure in place. Repeat for all fi lters. See Fig. 17-4.
INSTALLATION (cont.)
