12
PROCEDURE

Clean the concrete area, remove any sharp objects.

Unroll the heating mat according to the area to be heated.

Remove the protective layer from the self-adhesive tapes and attach the mat to the base.

In humid spaces, connect the protective braiding of the cable to the protective grounding connection
for the room.

The connector joining the cold connection end and the heating circuit must not be installed in a bend.

Measure the resistance of the heating circuit and the insulation resistance or the leaking current and
record the measured values in the certificate of warranty.

Cover the mat with a concrete layer. After concreting is finished, measure the resistance values again
and record them in the certificate of warranty.

Wait at least 28 days after installation before putting the mat into operation, so that the concrete will
be set fully.

Materials used in finishing the floor surface must be approved by their respective manufacturers for
use on floors under thermal stress.
c) Installation – direct heating system

First read Clause 1 of the General Terms and Conditions.

Detailed descriptions of use for the individual materials can be found in the installation manuals for
the recommended materials.
PROCEDURE

Unroll the heating mat and adjust it according to the area to be heated. Mark the place for the
connection and ending of the heating mat on the floor. Roll the mat up again.
 Create “pockets” in the base material where you will place the connections for the heating and non-
heating components.

Clean the concrete area, remove any sharp objects and coat it using a suitable penetrating solution.

Unroll the heating mat according to the area to be heated.

Remove the protective covering from the self-adhesive tapes and attach the mat to the base.

Measure the resistance of the heating circuit and the insulation resistance and record the measured
values in the certificate of warranty.

Use flexible adhesive sealing cement and a flat spreader to smooth the floor surface (be careful not to
damage the cable with the sharp edge of the spreader).

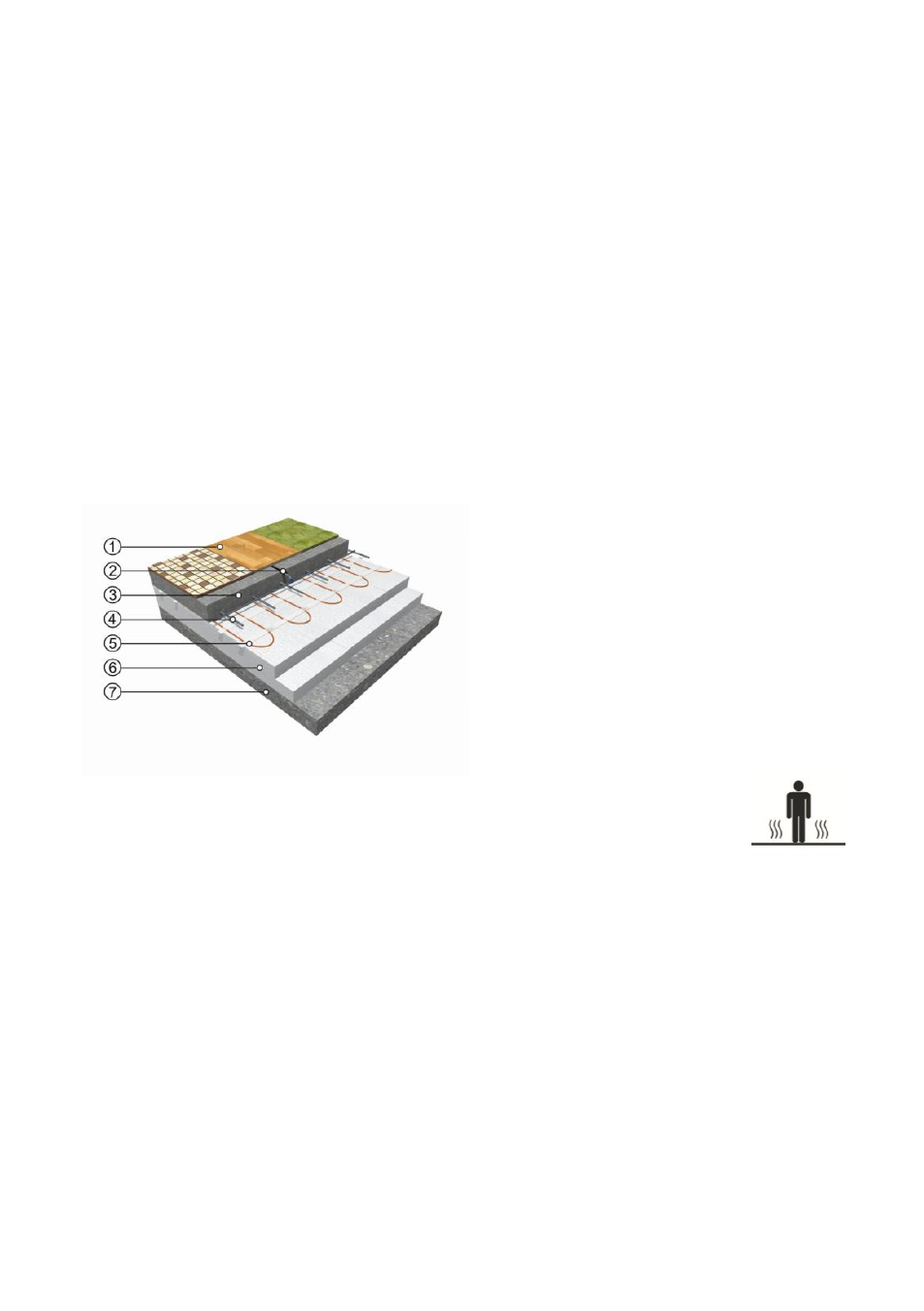

1) Floor finish
2) Installation pipe with a floor probe
3) Accumulating concrete layer, 40-50 mm
4) Reinforcing steel grid
5) Ecofloor heating mat
6) Thermal insulation, min. 80mm
7) Base
