10

This appliance can be used by children from the age of 8 and older, and persons with lower
physical, sensory or mental abilities or a lack of experience or knowledge providing they are
under supervision or have been trained in the use of the appliance in a safe manner and
understand the possible danger. Children may not play with the appliance.
Cleaning and maintenance by the user must not be carried out by children without supervision.


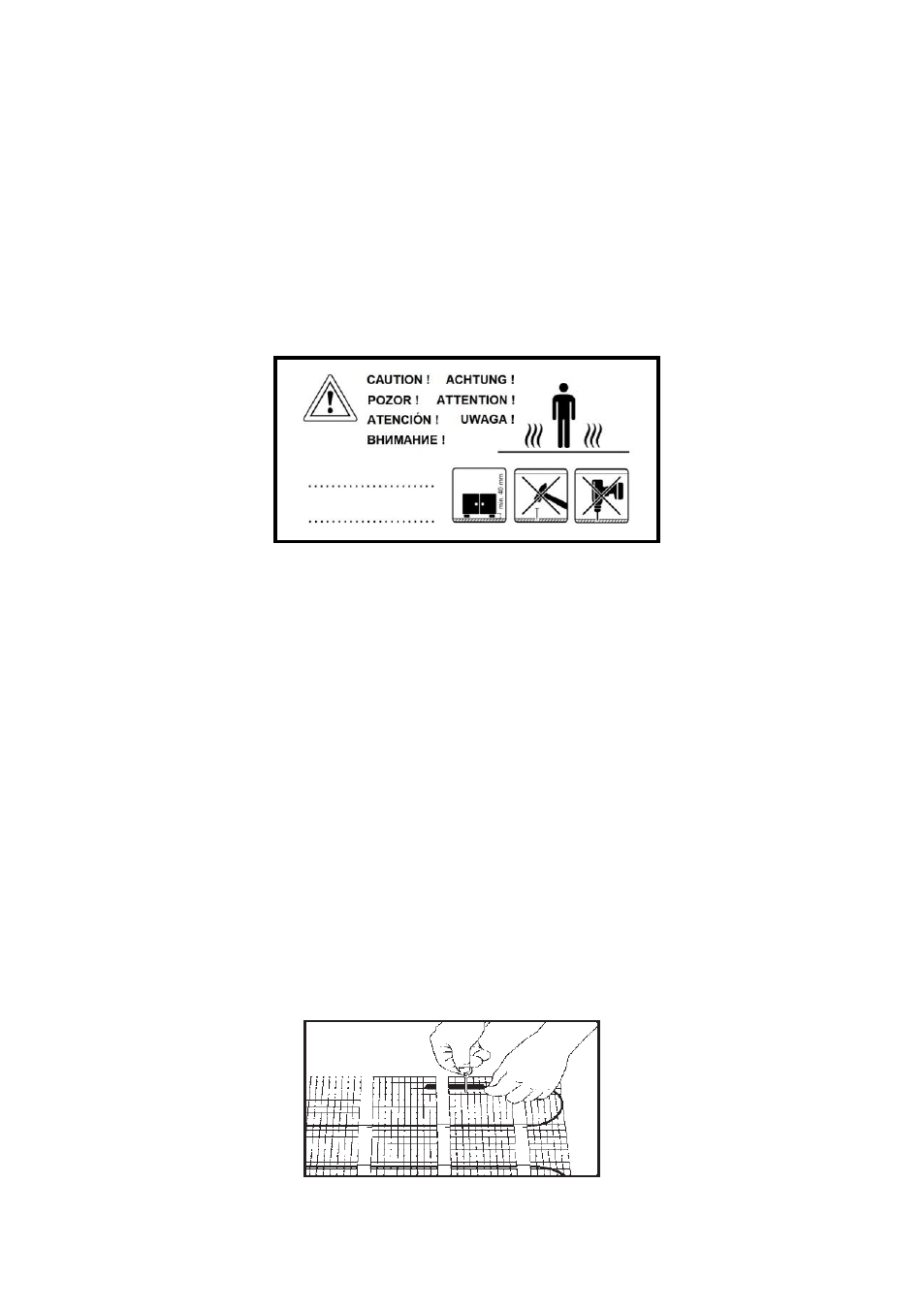

The user must be instructed by the supplier regarding the installation of floor heating. This fact
is stated on a label which comes with the product and must be glued into the switchboard: this
label also informs readers that the making of openings is prohibited, as is covering the floor
with furnishings or fittings without leaving at least a 4 cm gap between the floor and the
bottom surface.
1. Description and connection

The heating mat consists of the heating cable attached to a supporting fiberglass fabric.

The heating cables should be connected to a 230 V, 50 Hz electrical network. Degree of protection:
IP67.
 LDTS mats have protective braiding. The cable’s protective braiding meets the standards required of
metal grid or metal shield and provides increased protection in spaces where that is required
(bathroom, laundry, etc.) The protective braiding is to be connected to the PE conductor or to a
protective grounding connection.

LDTS mats have bottom-edge tapes that are adhesive on both sides. After removing the covering
paper from these tapes, the mat can be attached to the base.

Fasten the connections and the head of the heating cable to the fabric by means of the attached
tightening strip.
