19

© 2 0 0 4 D i r e c t e d E l e c t r o n i c s , I n c .

Using the web information on the vehicle, locate the suspected

wire and place the red lead of the LED tester to a constant (+)12

volt source and secure it. Probe the suspected wire. With the

switch in the off position the LED tester should be extinguished.

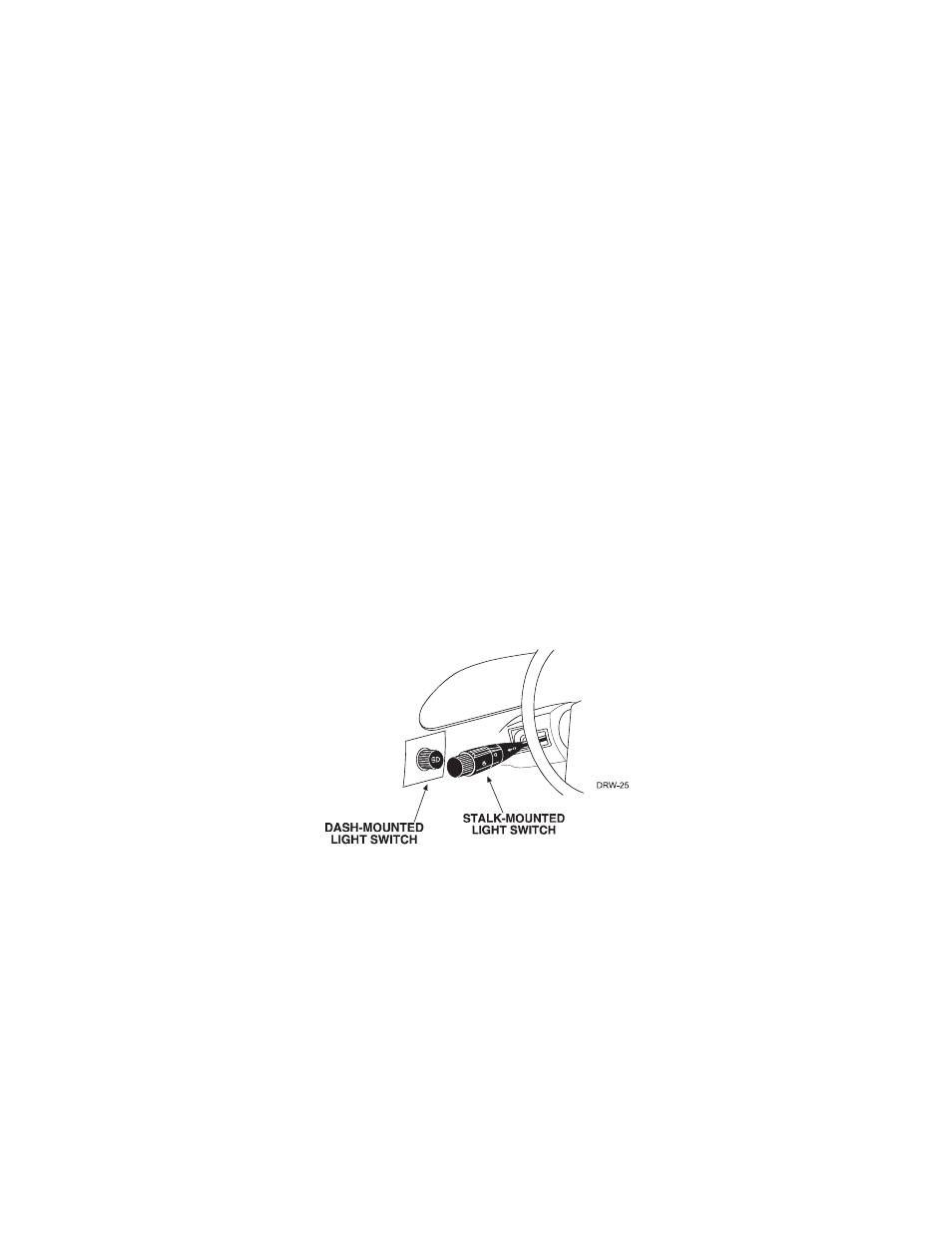

While watching the LED tester, turn the switch to the parking

light position. The LED tester should illuminate green. While

testing the suspected wire, run the dash dimmer light control up

and down — the voltage should NOT vary (LED tester illumi-

nation). If the voltage does vary, continue probing to find the

correct wire.

Once you have identified the correct wire, strip a small portion

of insulation off this wire and solder the WHITE (H1/8) wire

from the main connector to it and wrap the connection with

electrical tape.
