18

© 2 0 0 4 D i r e c t e d E l e c t r o n i c s , I n c .

temporarily (i.e., for service on the vehicle or when parking in an

enclosed area). This switch is to be mounted in an easily acces-

sible location in the passenger compartment.

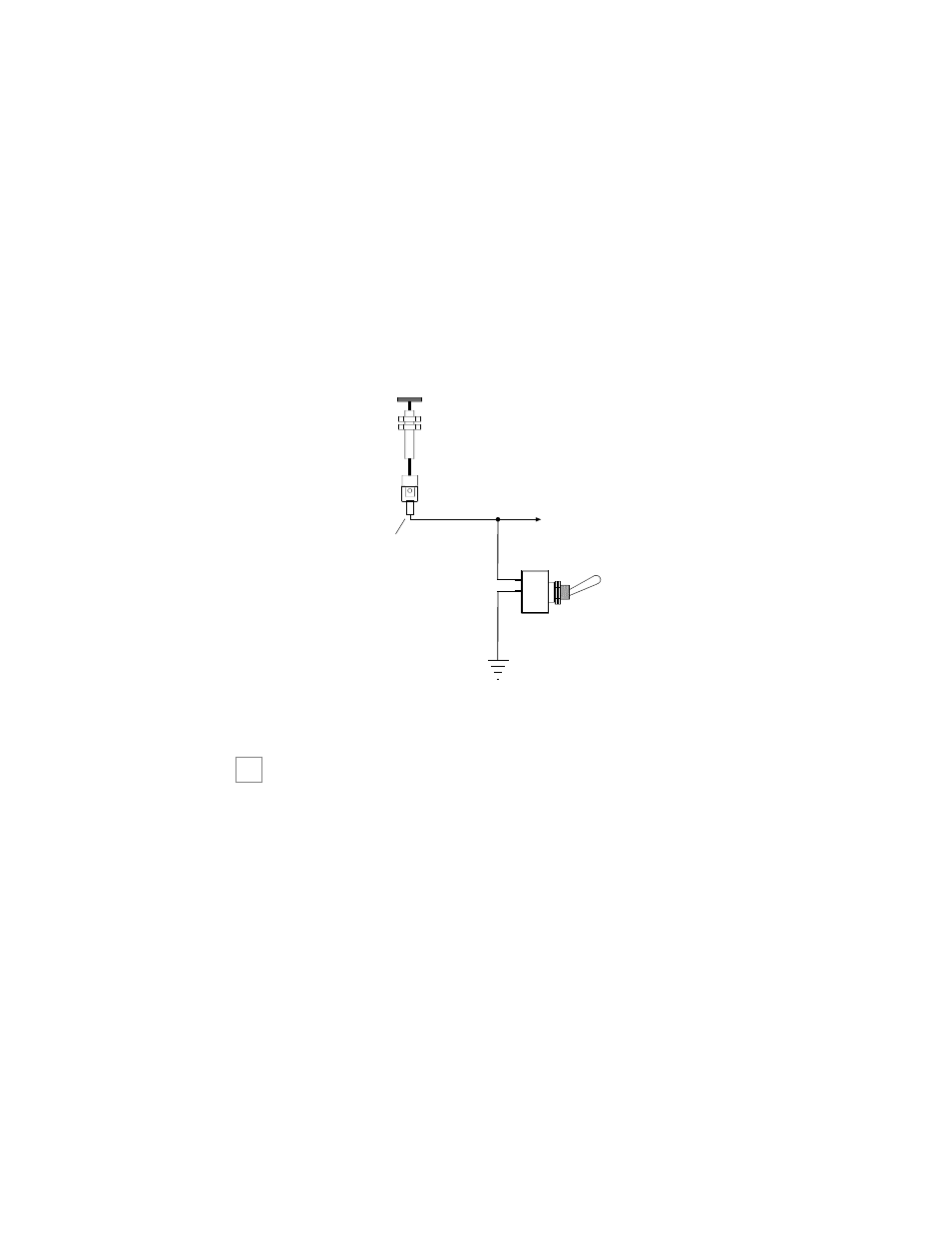

Connect the toggle switch as shown below.

step 5

Parking light flash (optional)

There are several different types of parking light circuits. The

following description is for a standard negative-triggered parking

light circuit, usually located at the light switch. If the web vehicle

information suggests a different type of parking light circuit,

please contact BOA Technical Support.

BYPASSED WHEN CLOSED

BYPASS

TOGGLE

SWITCH

TO GRAY (H1/5) WIRE

ON

CONTROL MODULE

HOOD PIN SWITCH -

OPEN WHEN HOOD IS CLOSED

HOOD PIN SWITCH -

CONNECTOR
