step 4

Safety Shutdown Wires

With all ignition wires properly connected, find the appropriate

safety shutdown wires. These are the brake wire and hood pin wires.

First locate the factory brake wire using your LED tester. Find

the switch at the top of the metal arm coming off the brake

pedal. There are usually two wires connected to that switch.

Locate the wire color according to the web information. With

your black lead still in the kick panel, probe the suspected wire

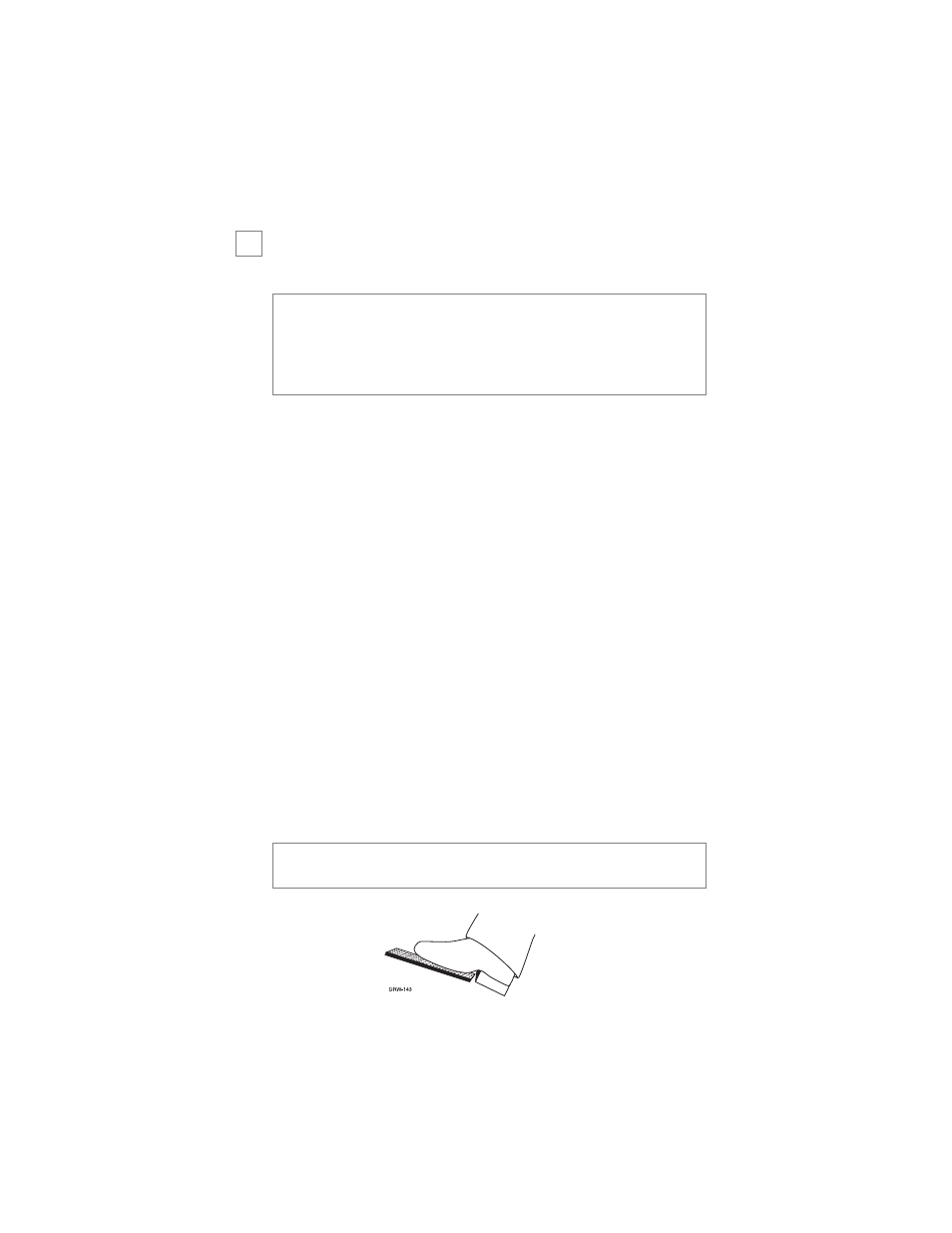

with the red lead of the LED tester. With the brake pedal at rest

the LED tester should be extinguished. While watching the

tester, depress the brake pedal. The LED tester should illumi-

nate. Once you have located the correct brake wire, strip a small

portion of insulation off this wire and solder the small BROWN

(H1/3) wire on the main harness to it and wrap the connection

with electrical tape.

important! Do not use the vehicle until you confirm the
operation of the brake shutdown.

important! These wires are meant to protect the vehicle
and anyone near the vehicle. They must be connected
appropriately to prevent damage to the vehicle and possi-
ble bodily injury. Failure to properly install these wires may
cause the vehicle to lunge if remote started while in gear.

➜
